Hydrostatic Pressure Tester
Standards
ISO 1167
ASTM D 1598
ASTM D 1599
Application
For hydraulic pressure testing of plastic pipes and fittings in PE, PEX, PVC, PP, PB, PVC, and PEX pipes and fittings, the GT-HPS series is mainly used for measuring resistance of internal pressure and short-time hydraulic burst to constant internal water pressure at constant temperature.
Features
The modular system enables high accuracy no matter what size sample is connected to it.
Its self-developed solenoid valve greatly extends its service life, and maintenance is not needed.
The compact and modular design allows for up to 20 independent pressure stations to be connected over an area of just 0.5 m2.
Another significant advantage is the low energy consumption of the device.
Thanks to the high pressure water hydraulic pump and big capacity pressure reservoir to ensure maximum capacity at all times.
Software Features
Test data storage, power-off protection, data power-on recovery, specimen pre-treatment and real-time monitoring are all possible through this platform.
It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.
For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant pressure.
It also includes electrical and mechanical parts, as well as software.
Highlights

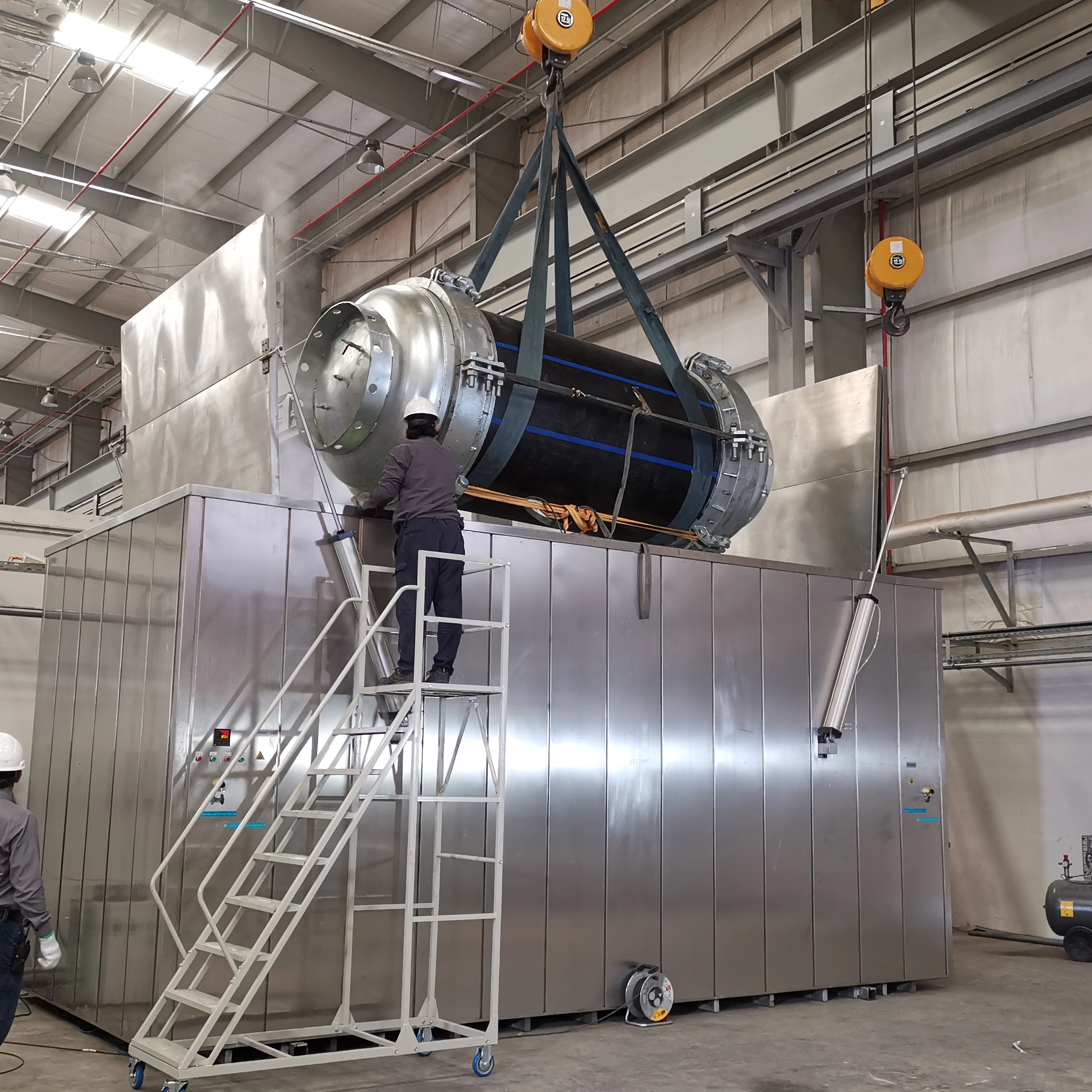

· pressure testing of even large PE pipe samples
· Burst test, internal-pressure test
· Easy to install and to operate
· High accuracy pressure control
· Online support via internet connection
Technical specifications
Output: Up to 100 , 160 bar or 200 bar
Capacity: 1 to 20 stations (30 stations on request)
Pressure resolution: 0.01 bar
Timing range: 0～10000h
Time resolution: 1s
Timing mode: Counter-up, counter-down
Associated equipment
Test tank
End closures
Laboratory saw
OUR SERVICE
We have 20-year expericen design team
We have professional QC team to ensure product quality
We have skilled staff to provide you perfect finished products
We provide you ontime aftersale service
FAQ
Q: How to get an operative offer?
A: Please sent us your technical requirement in detail, e.g. the test standards, the material of test piece, the max. test pressure. Then you will get the quotation within 24hours.
