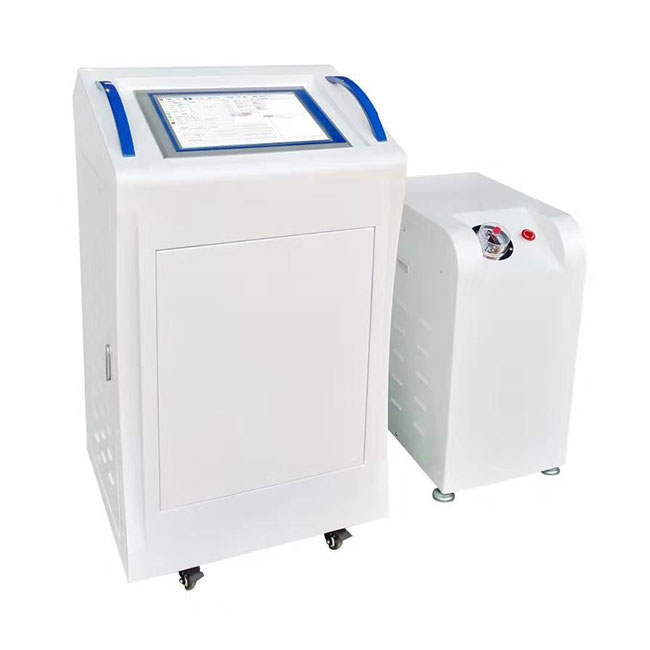

Digital Hydrostatic Testing Machine With Mechanical Pressure Recorder

It is designed to analyze the resistance of internal pressure and short-term hydraulic burst with constant internal pressure at constant temperature in plastic pipes and fittings made of PE, PVC, PEX, PVC, PP, PB, etc., Features In addition to its modular design which allows testing of samples of varying sizes; it has a self-developed solenoid valve which greatly extends its working life, so further maintenance is not required. Pressure testing can also be performed on large PE plastic pipes and fittings through the compact design . Another advantage of this system is its low energy consumption.
Availability:
Quantity:
  • GT-HBT
  • GT-TEST
  • 9024800000

Hydrostatic Pressure Tester

Standards

  • ISO 1167

  • ASTM D 1598

  • ASTM D 1599





Application

It is designed to analyze the resistance of internal pressure and short-term hydraulic burst with constant internal pressure at constant temperature in plastic pipes and fittings made of PE, PVC, PEX, PVC, PP, PB, etc.,


Features

  • In addition to its modular design which allows testing of samples of varying sizes;

  • Pressure testing can also be performed on large PE plastic pipes and fittings through the compact design that contains 20 independent pressure stations on an area of just 0.5 m2. Another advantage of this system is its low energy consumption.

  • Thanks to the high pressure water hydraulic pump and big capacity pressure reservoir to ensure maximum capacity at all times.

  • it has a self-developed solenoid valve which greatly extends its working life, so further maintenance is not required.

  • With the functions of specimen pre-treatment, real-time monitoring, test data storage, data power-off protection (memory), and operations during power on. Protection measures are from electric, mechanical, as well as software.

  • It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.

  • For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant pressure.


Highlights

·        pressure testing of even large PE pipe samples

·        Burst test, internal-pressure test

·        Easy to install and to operate

·        High accuracy pressure control

·        Online support via internet connection



Technical specifications

Output:

Up to 100 , 160 bar or 200 bar

Capacity:

1 to 20 stations (30 stations on request)

Pressure resolution:    0.01 bar

Timing range:             0~10000h

Time resolution:        1s

Timing mode:            Counter-up, counter-down



Associated equipment

  • Test tank

  • End closures

  • Laboratory saw
