Good Quality High Accurate Cheap Price Ash Content Tester (Muffle Furnance)

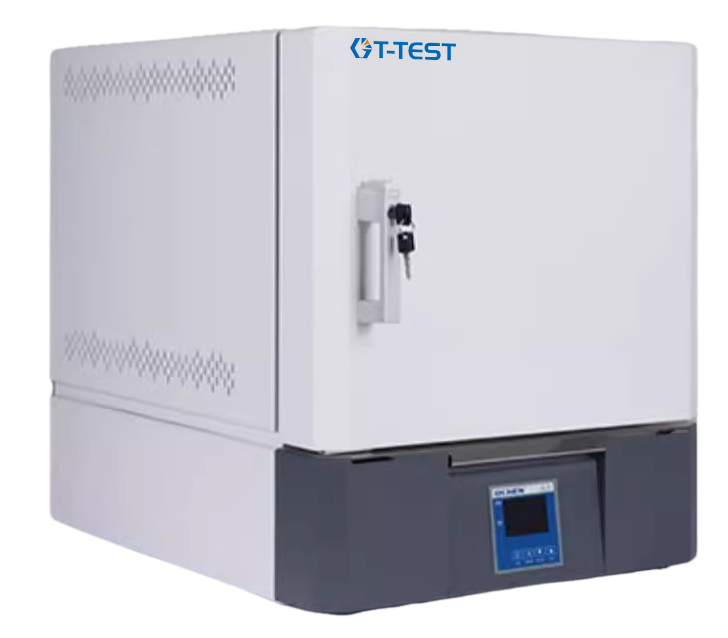

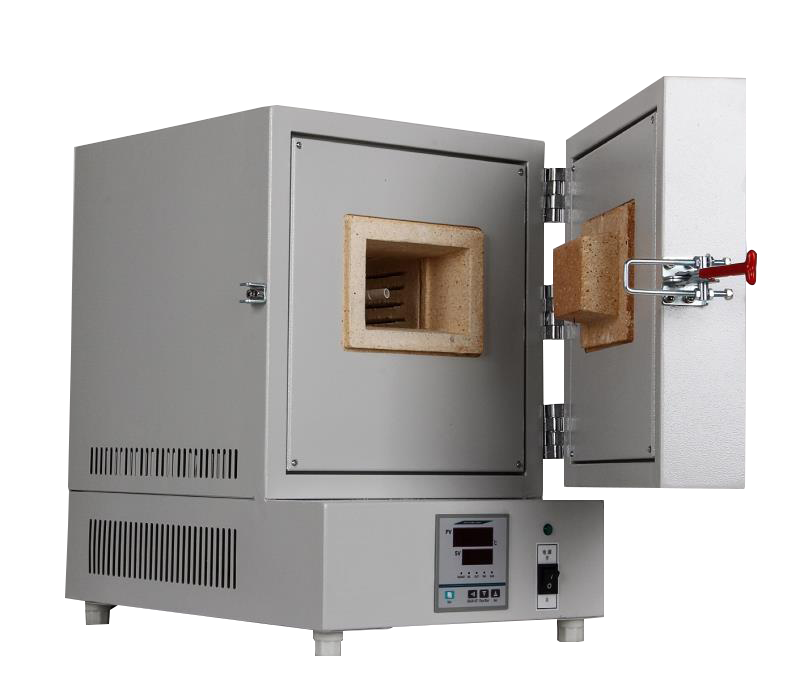

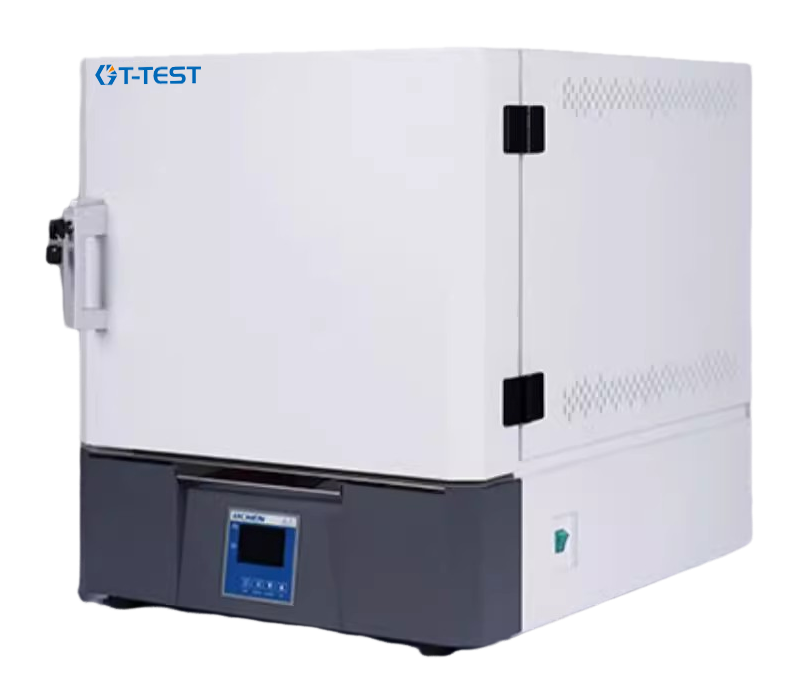

Ash Content Apparatus  (Muffle furnace)

Application

Muffle furnace is used, in conjunction with an electrical balance, to measure the ash content of plastics.

• Digital display

•  Integrated design

• Unique door furnace design




Features

1.     The cabinet is made of high quality cold rolled steel plate, color paint is coated on its appearance at high temperature to ensure its durability.

2.     Microcomputer PID controller is used for accurate & reliable temperature control.

3.     With over current, over voltage, over heat, leakage, short circuit and other safety protection

4.     Good heat insulation performance, less heat loss, good energy saving.

5.     Temperature control system: using microcomputer artificial intelligence adjustment technology, with PID fuzzy control, self-tuning function, high control precision.

6.     The furnace has the characteristics of uniform temperature field, low surface temperature, fast heating up, energy saving, etc.

Technical Parameters

1.     Max. temperature: 1000℃

2.     Furnace dimension: 80X120X200mm

3.     Temperature fluctuation: ±2℃

4.     Temperature resolution: 1℃

5.      Power supply: 2.5KW AC220V 50HZ
