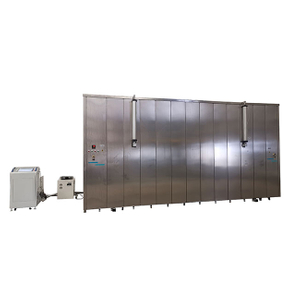

Constant Temperature Small Thermal Tank for Laboratory

Thermal test bath is mainly used to determine the resistance of internal pressure and short-time hydraulic burst to constant internal water pressure at constant temperature, which is designed for pressure testing plastic pipes and fittings in PE, PEX, PVC, PP, PB etc., glass fibre pipes, tubes.
Availability:
  • GT-TANK
  • GT-TEST
  • 9024800000

Product Description

Test Baths for Pressure Test­ing

Application

Test bath is mainly used to test internal pressure and short-term hydraulic burst under constant internal water pressure at constant temperature, and it is designed to test plastic pipes and fittings such as PE, PEX, PVC, PP, PB, etc.


Stan­dards

·        ISO 1167

·        ASTM D 1598

·        ASTM D 1599

Features

  1. High-accuracy and uniform temperature distribution are guaranteed by the circulation system.

  2. Special cap seals contain steam and heat in the bath, protecting against injury. Quick-release couplings and ergonomically arranged manifolds ensure easy connection.

  3. In addition, the high thermal insulation of the basic container means that even when the water temperature rises to 95°C, the outer lid is still at ambient temperature, which enhances security and saves more than 70% of energy.

  4. The braced structure provides excellent supporting capacity and anti-deforming capacity.

  5. The lid is operated pneumatically, allowing you to adjust the opening degree according to your specifications.

  6. We offer a variety of bath sizes with 3 different lid systems.

  7. Automatic water level control, if the water level is lower than preset value, it will be re-established automatically by introducing water in a way that the preset temperature will not fluctuate too much (fluctuation is less than 0.2℃).

Technical specifications

Temperature resolution         ±0.1℃

Temperature range:               15℃ to 95℃

Temperature accuracy            ±0.5℃

Number of test stations        1 to 50 on request

Internal dimension                 depend on the pipe diameter


test bath for pressure test
