Standards
· ISO 1167
· ASTM D 1598
· ASTM D 1599
Application
Designed to test hydrostatic pressure in pipe samples. The end closures seal off the sample, which generates internal pressure within the sample. Maximum pressure varies depending on the standard, specifications, and pipe diameter.
Features

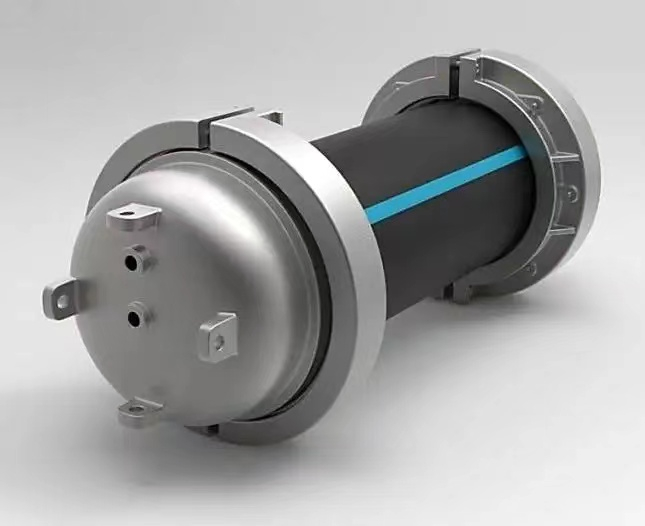

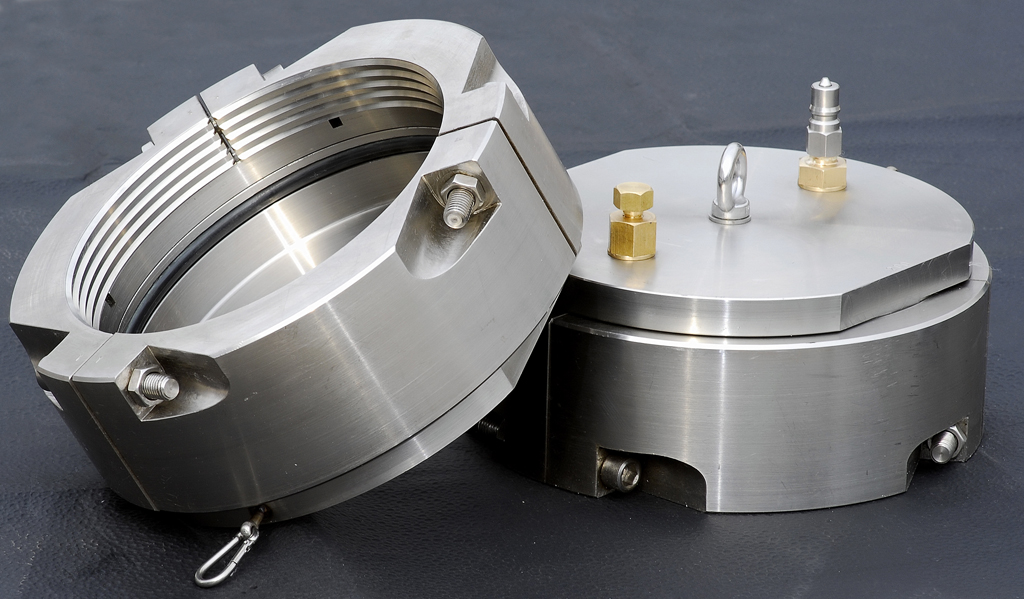

Special design ensures easy mounting and perfect sealing. Split type clamps help to realize automatic centering.
Selected material of stainless steel with the advantages of corrosion resistance, durability and weight.
Special design makes it lighter in weight, quick assembly.
End caps are produced with a specific depth from O-ring to the internal bottom which ensures that even on chamfered and oval PE pipes.
Simple and reliable venting directly at the sample.

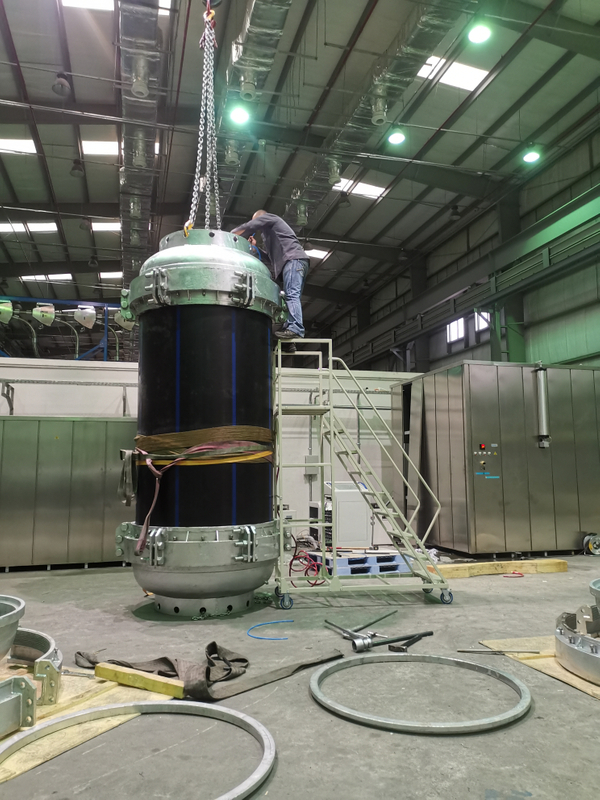

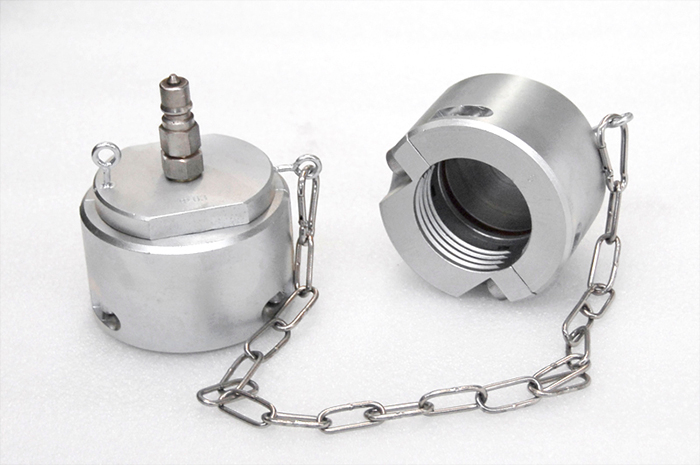

Stainless steel chain is provided to avoid the lower enclosure fall on the bottom of water tank in case of specimen fails.

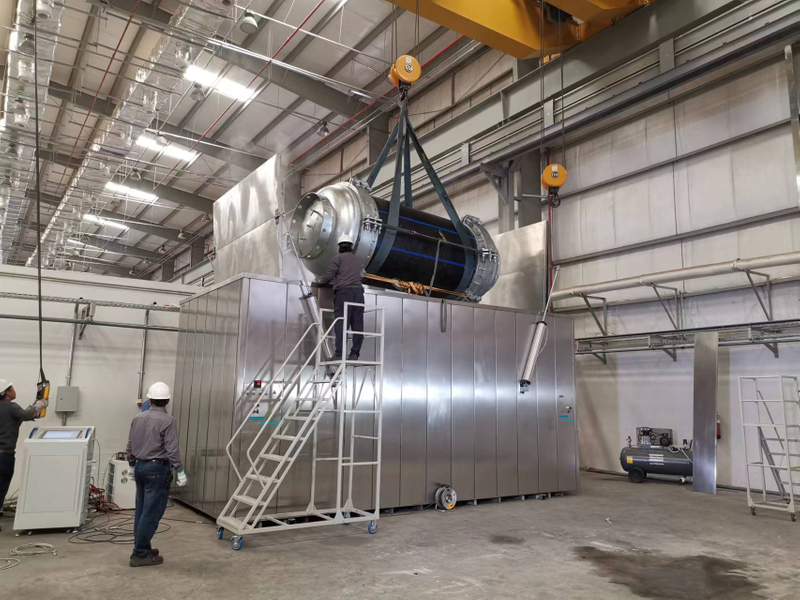

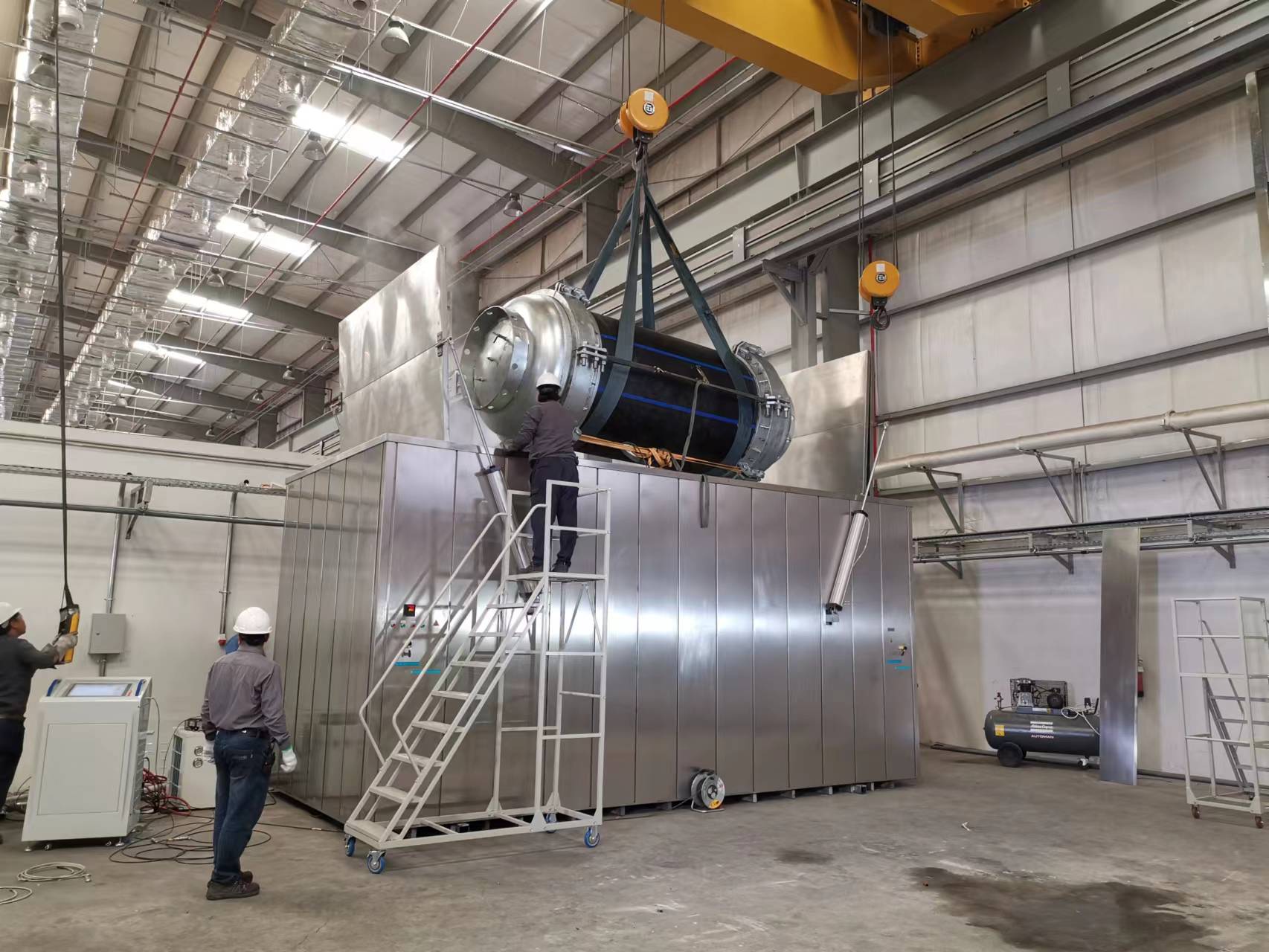

Air resource inlet and drain port are introduced to drain water after testing for big diameter end caps.
Technical specifications
1. Material: Stainless steel (carbon steel as option)
2. Diameter range: Ø12mm up to Ø3500mm
3. Connection: 1/4" male connection
4. Max. test pressure: up to 160 bar
5. Processing technic: machining / casting
