Technics Forged Best End Caps For Low Pressure Closure Test

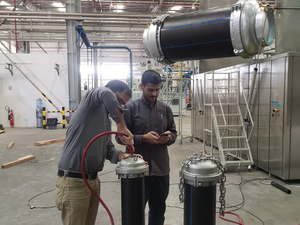

For internal hydrostatic pressure testing of pipes. The end closures seal off the sample in order to generate internal pressure in the sample. Max. pipe diameter is 2000mm.
Availability:
Quantity:
  • GT-EC-A
  • GT-TEST
  • 9024800000

 End Closure for PE / PPR / PVC/ PP Pipes

Stan­dards

  • ISO 1167

  • ASTM D 1598

  • ASTM D 1599



Application

End closure, fixed to the ends of the test piece. By means of an appropriate system or procedure, end closure shall allow sealing and connection to the pressurizing equipment and shall allow purging of the air before testing.

The end closures seal off the sample in order to generate internal pressure in the sample.



Features

1.   Particular design ensures easy mounting and perfect sealing. Split type clamps help to realize automatic centering.

2.   Stainless steel material with the advantages of corrosion resistance and durability.

3.   Hollow-out design makes it lighter in weight, easier for observation and operation. E.g. the single-end weight of DN400 enclosure is less than 50kg and the weight of clamps is only 7.3kg.

4.   End caps are produced with a specific depth from O-ring to the internal bottom which ensures that even on

5.   Stainless steel chain is provided to avoid the lower enclosure fall onto the bottom of water thank in case of specimen fails.

6.   Air resource inlet and drain port are introduced to drain water after testing for big diameter end caps.


Technical specifications

  • Material: Stainless steel (carbon steel as option)

  • Diameter range: Ø12mm up to Ø2000mm

  • Connection: 1/4" male connection and supplied with bleed valve

  • Max. test pressure: up to 100 bar
