Power Electronic High Precision End Caps For Plastic Pipe Internal Pressure Testing

Special design ensures easy mounting and perfect sealing. Split type clamps help to realize automatic centering. Selected material of stainless steel with the advantages of corrosion resistance, durability and weight. Hollow-out design makes it lighter in weight, easier for observation and operation. E.g. the single-end weight of DN400 enclosure is less than 50kg and the weight of clamps is 7.3kg.
Availability:
Quantity:
  • GT-EC-A
  • GT-TEST
  • 9024800000

 End Caps for Plastic Pipes

Stan­dards

  •  ISO 1167

  • ASTM D 1598

  • ASTM D 1599


Application

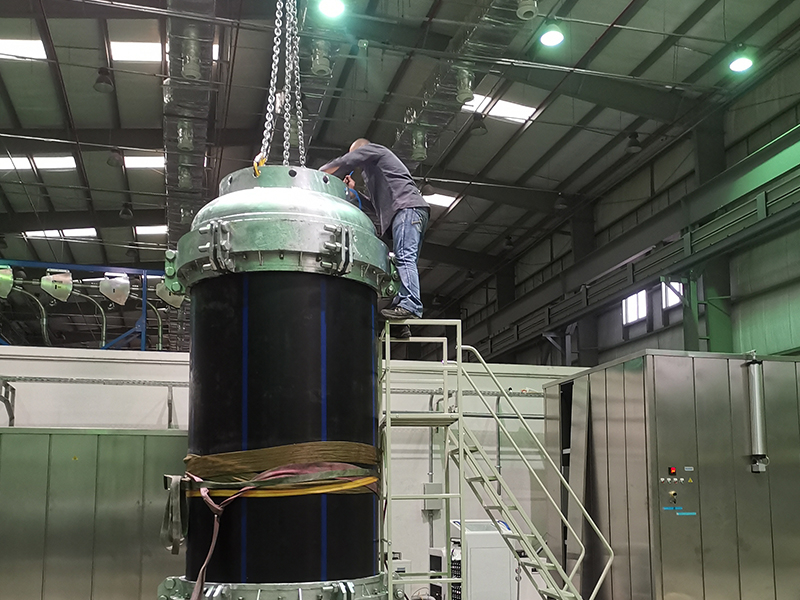

A hydraulic pressure tester is used to test internal hydrostatic pressure in pipes. End closures seal off the sample to generate internal pressure. Maximum pressure depends on standard, specifications, and pipe diameter.


Features

  • Special design enables easy mounting and perfect seal. Split type clamps facilitate automatic centering.

  • Stainless steel material of excellent corrosion resistance, durability, and light weight.

  • It is light in weight, making it easier for observation and operation. For example, the single end of DN400 enclosure is less than 50kg, and the clamps are 7.3kg.

  • Venting directly at the sample is simple and reliable.

  • Following testing for large diameter end caps, the inlet and drain ports are incorporated for drainage of water.

  • Stainless steel chain is provided to avoid the lower enclosure fall on the bottom of water thank in case of specimen fails.


Technical specifications

  1. Material: Stainless steel (carbon steel as option)

  2. Diameter range: Ø12mm up to Ø1200mm

  3. Connection: 1/4" male connection and supplied with bleed valve

  4. Max. test pressure: up to 160 bar



FAQ

Q: How to get an operative offer?

A: Please sent us your technical requirement in detail, e.g. the test standards, the material of test piece, the max. test pressure and max. pipe diameter. Then you will get the quotation within 24hours.

 high pressure good quality end cap for plastic pipes
