CNC Polymer Specimen Milling Machine with ISO for Plastic

Depending on the standard being applied, tensile, pressure, bending and flexural impact tests require bar-shaped samples with specific dimen¬sions.
A computer-controlled (CNC) test bar milling mach¬ine with installed machining programs and special clamping devices will prepare samples for all common test bar shapes.
Quantity:
  • GT-CNC-60
  • GT-TEST
  • 9024800000


Standards

·        ISO 179/180

·        ISO 527

·        ISO 6259

·        ISO 16770

·        ASTM D 638

·        ASTM D 1822


Application

Depending on the standard being applied, tensile, pressure, bending and flexural impact tests require bar-shaped samples with specific dimen­sions.

A computer-controlled (CNC) test bar milling mach­ine with installed machining programs and special clamping devices will prepare samples for all common test bar shapes.


Features

·        Pre-configured machining programs

·        Protective doors with safety lock

·        Clean workstation thanks to machine enclosure

·        Delivered with workbench

Main frame features

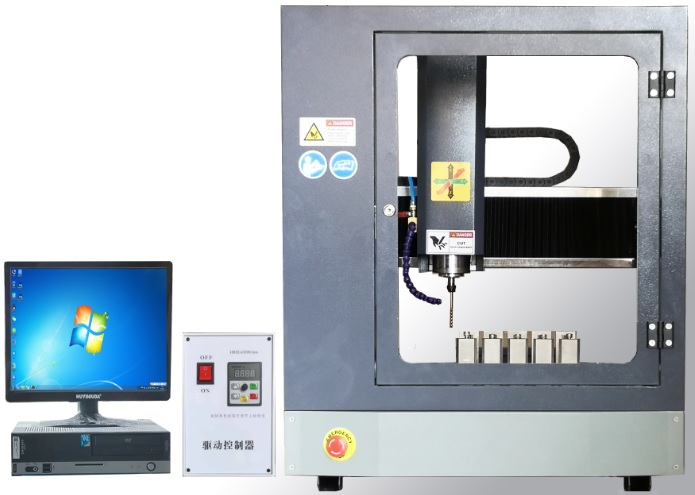

·        The CNC milling mach­ine is a table-top unit controlled by computer.

·        Equipped with a specialized sample loading device, up to five test bars can be produced in one milling        process.

·        A swarf extraction system ensures the workstation remains clean.

·        Rigid Aluminum alloy frame with a thickness of 15mm ensures its strength and stability.

·        The CNC machining center technology is introduced for precision machining.

·        Thanks to the frequency adjustable spindle speed, the speed can be variable adjusted, with maximum speed up to 24000r/min.

  • Equipped with large flow      refrigeration water pump, largely improves the machine lifetime.

  • The axis limits are introduced to      avoid accidental operation or collision.

  • Equipped with a manual hand wheel,      which is convenient for manual knife alignment and micro-adjustment.


Controller Features

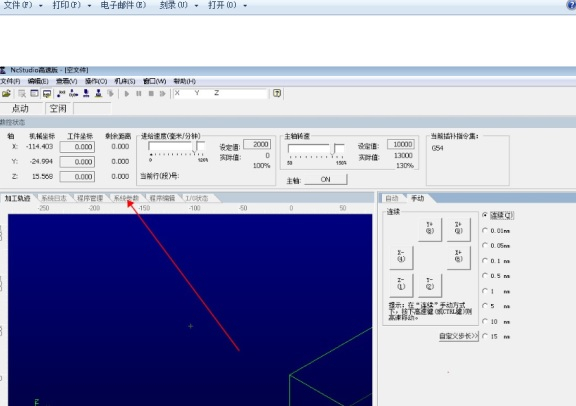

·       The control system is based on the NCStudio control software developed under the Win7 platform, with simple interface and easy operation.

·      Pre-configured machining programs for all common bar shapes and visualisation via Windows makes it very easy to operate the milling mach­ine. The program can also be manually edited with the help of CAD or other design software.

·      The software has the functions of machining track, machining simulation, program editing, manual control, automatic control, etc.

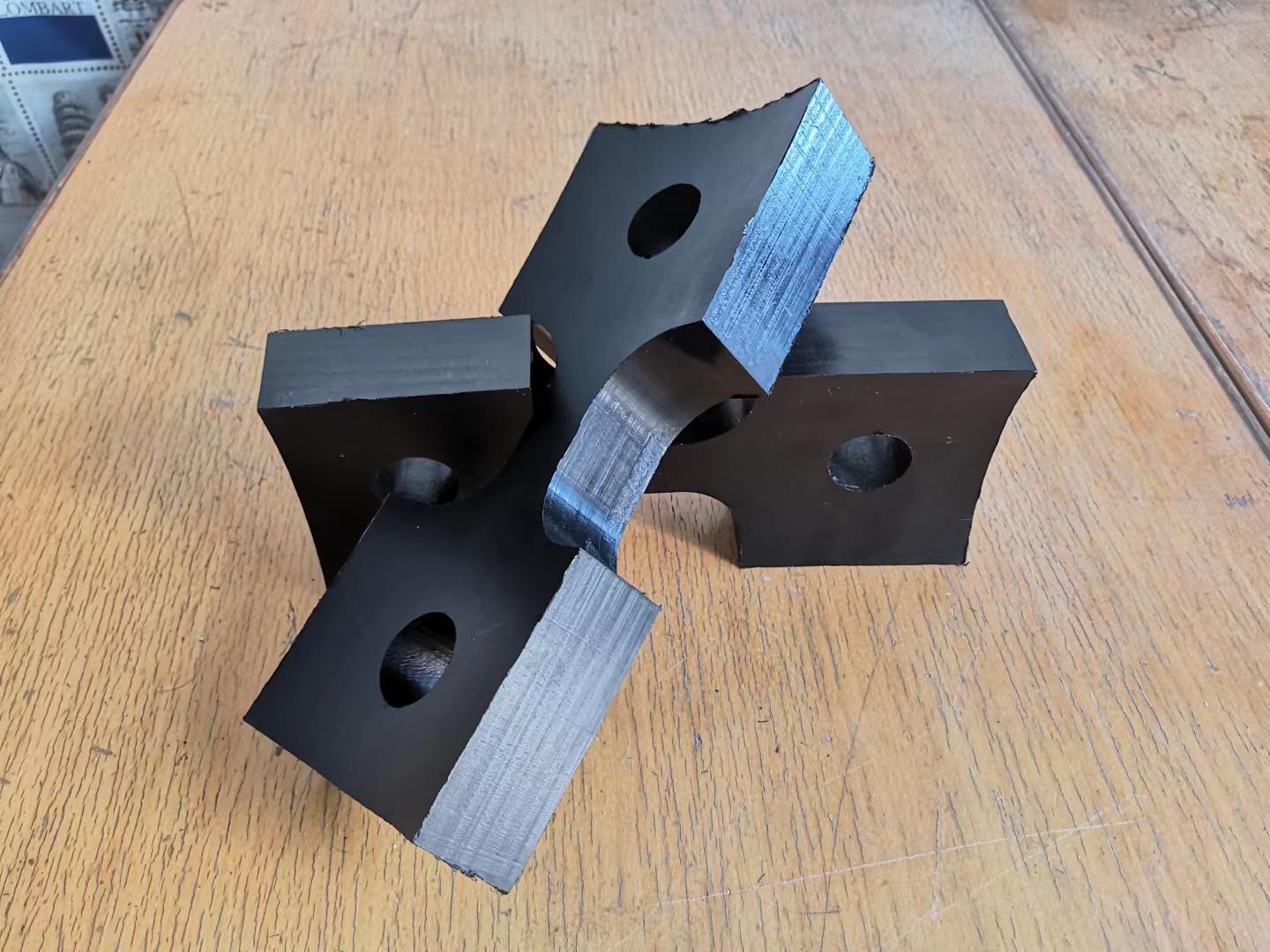

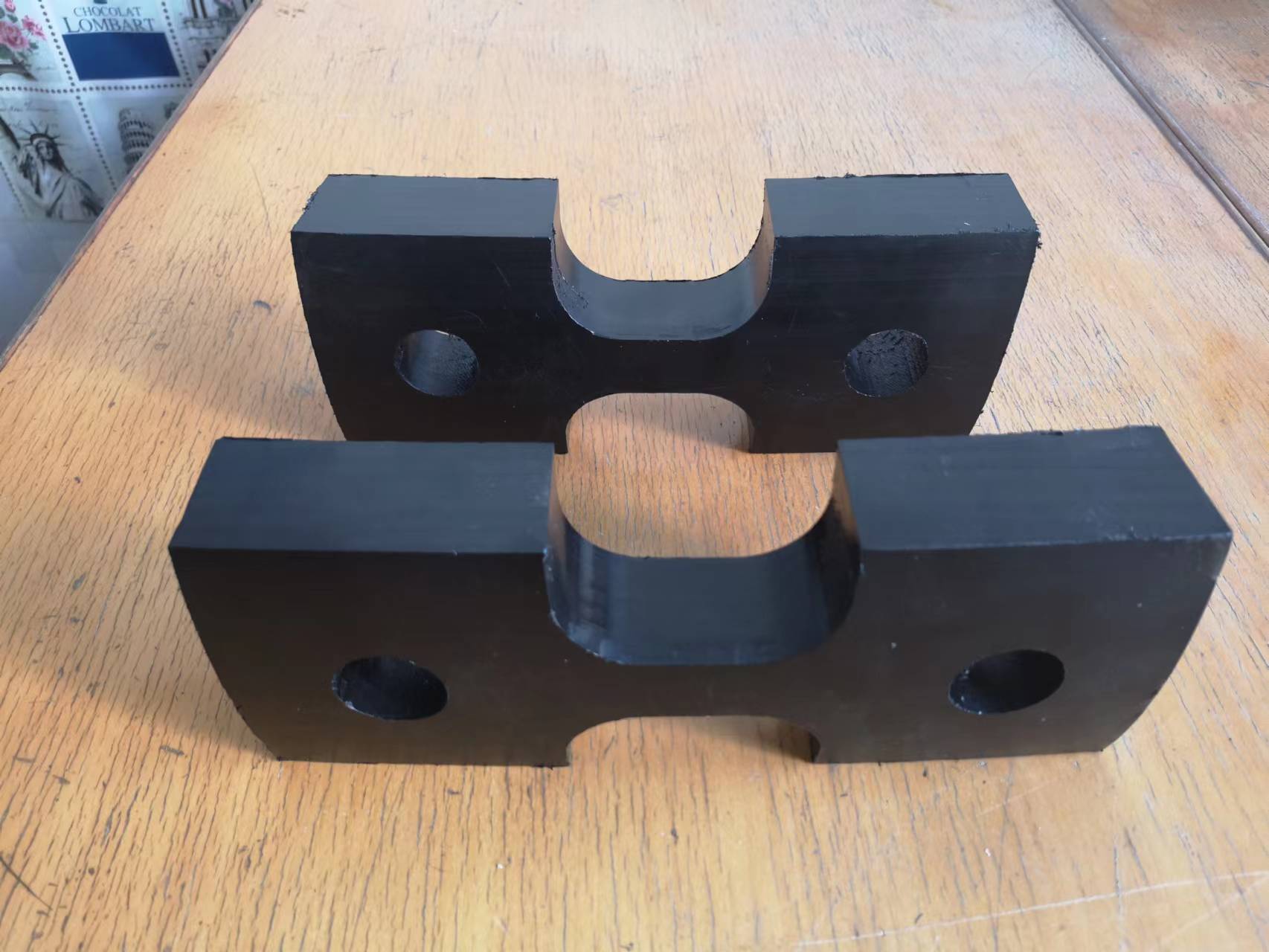

·      Since the general procedure is for milling dumbbell type sample, two dumbbell programs (ISO 6259) are pre-configured (other shapes can be customized).


Technical Parameters

1.      Specimen thickness: 3mm to 60mm ( 80mm is available)

2.      Outside pipe diameters: φ50mm to φ120mm

3.      Plate length: ≤150mm

4.      X axial travel: 300mm

5.      Y axial travel: 400mm

6.      Z axial travel: 100mm

7.      Spindle speed: ≤24000 r/min

8.      Repeatability: 0.05mm

9.      Power supply: 220V 50Hz 3,3Kw

10.  Dimension: 850mm×780mm×1050mm

11.  Weight: 60kg
