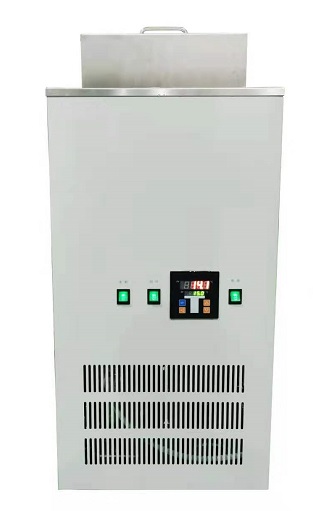

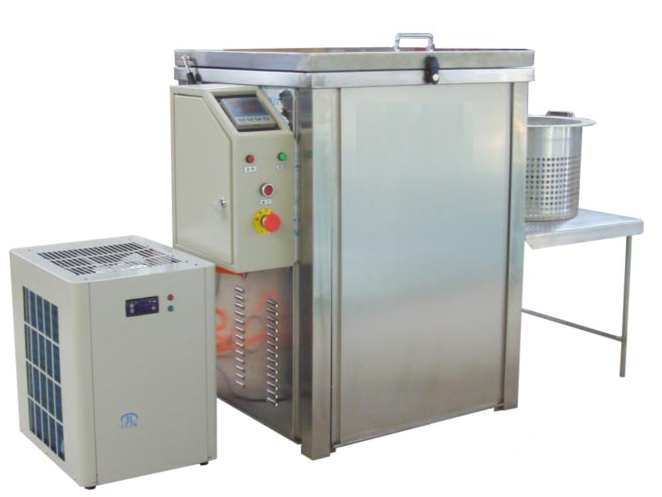

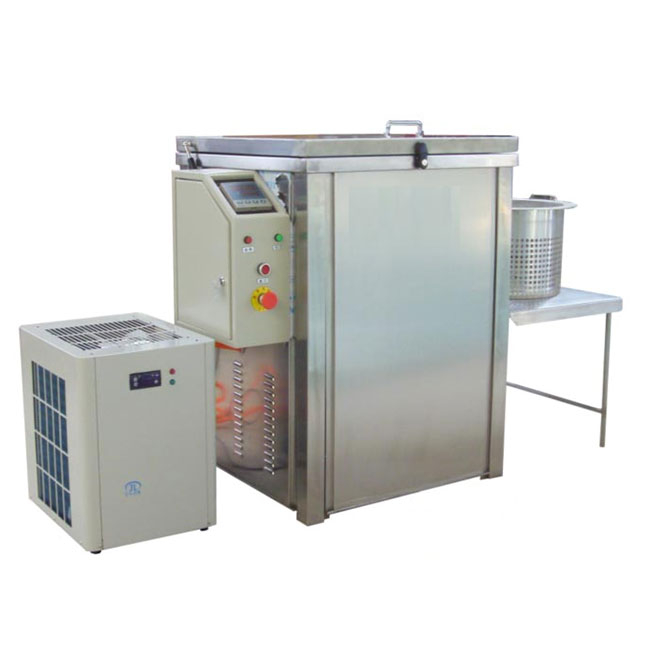

Dichloromethane Resistance Testing Equipment
Standards
ISO 9852-2007
Application
IT is designed for determining the resistance of unplasticized poly (vinylchloride) (PVC-U) pipes to dichloromethane at a specified temperature.
It is applicable to all PVC-U pipes, irrespective of their intended use.
The method can be used as a rapid means of quality control during manufacturer.
Principle

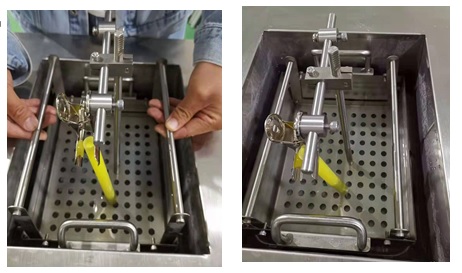

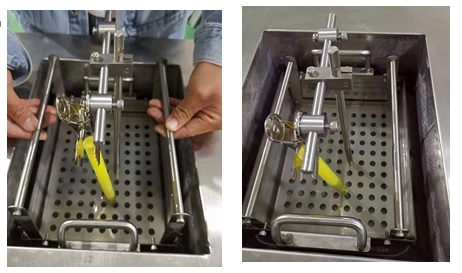

A piece of PVC-U pipe, of specified length, chamfered at one end to an angle dependent on its thickness, is immersed for 30min in dichloromethane, at a temperature specified by the referring standard, to verify that the PVC-U is not attached at that temperature. For safety reasons, the surface area of the dichloromethane is kept to the minimum and the dichloromethane is covered by a deep layer of water to reduce evaporation. After immersion in the dichloromethane, the test piece is held in the water layer to allow it to “drip” before final drying and inspection.
Feature
1. The insulation system adapts the inner lining wrapping the whole body, two kinds of insulation materials are used for good insulation performance& long-term energy saving.
2. During the heating or cooling process, the outer chamber temperature is close to room temperature, which greatly improves the safety of the whole machine, also save more than 70% of power consumption.
3. The whole material is made of 304 stainless steel.
4. Built-in heater largely improves the high heat exchange efficiency.
5. The refrigeration device is placed outside, which has no influence on the temperature of the laboratory.
6. The chamber lid lid is controlled by the gas spring, making operation more reliable and convenient. The lid is sealed with silicone rubber strip, no air overflow even at high temperature.
7. Structural frame bottom of the box, bearing high weight & deformation resistance.
Technical Parameters
1. Temperature range: 10℃～50℃ (With cooling and heating devices)
2. Temperature uniformity: ±0.5℃
3. Temperature resolution: 0.1℃
4. Test medium: pure water
5. Test bath dimension: φ350mm x 260mm
6. Overall dimension: 660×660×800(mm)
7. Power supply: 220VAC，50Hz，3kW
Associated equipment
Ventilation Chamber
