When it comes to assessing the impact resistance of pipes, particularly in the context of PVC pipes and fittings, accurate and reliable testing methods are crucial. Computerized CSA (Canadian Standards Association) drop impact testers play a pivotal role in this process. These sophisticated instruments provide precise measurements of how pipes react under specific impact conditions, simulating real-world scenarios. In this article, we will delve into the importance of computerized CSA drop impact testers, how they work, their application in pipe impact resistance analysis, and the key factors to consider when choosing the right model for your testing needs.
What is a Computerized CSA Drop Impact Tester?

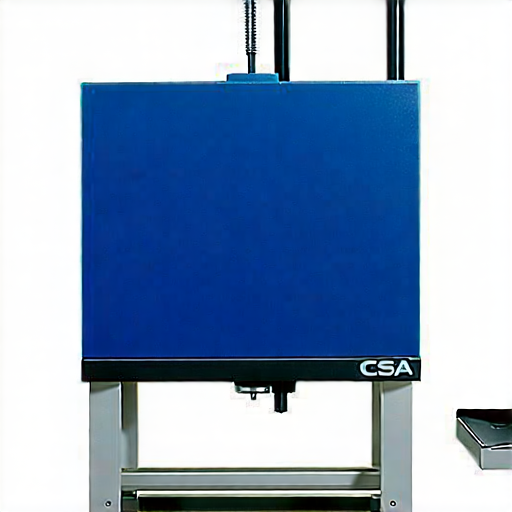

A computerized CSA drop impact tester is an advanced testing device used to measure the ability of materials, especially pipes, to withstand high-impact forces. The machine simulates real-world conditions where pipes might be subject to sudden, forceful impacts, such as during transportation, installation, or under heavy operational conditions. The tester is designed to drop a standardized weight onto the pipe at a controlled height to observe how the pipe absorbs and resists impact forces. This helps engineers and manufacturers determine the durability and reliability of pipes in various applications.
These testers are equipped with computerized systems that provide real-time data collection, analysis, and reporting. This technology improves the accuracy of test results and allows for faster, more efficient testing procedures.
Why is Pipe Impact Resistance Important?
Impact resistance is an essential property for pipes used in various industries, such as plumbing, construction, and wastewater management. Pipes are often exposed to sudden shocks, whether from external forces like falling objects, pressure changes, or internal stresses. A pipe that lacks sufficient impact resistance is at a higher risk of cracking, rupturing, or failing, which could lead to costly repairs, environmental hazards, and safety concerns.
For instance, PVC pipes are commonly used in water supply systems, sewerage systems, and drainage networks. These pipes must withstand impacts during installation, transportation, and normal usage without compromising their structural integrity. By conducting impact resistance tests, manufacturers and engineers ensure that the pipes meet the required standards and can perform effectively over time.
How Does a Computerized CSA Drop Impact Tester Work?
The process of testing pipe impact resistance using a computerized CSA drop impact tester is relatively straightforward but highly controlled. Here’s a step-by-step breakdown of how the test works:
1. Sample Preparation
A pipe sample is prepared and placed on the testing platform. The size and type of the pipe depend on the specifications of the test and the industry requirements.
2. Impact Weight Selection
The tester is equipped with a standardized weight, typically ranging from a few kilograms to several hundred kilograms, depending on the pipe material and its intended application. This weight is designed to simulate the impact forces the pipe might experience in the field.
3. Controlled Drop Height
The weight is raised to a specific height, and the drop height can be adjusted based on the pipe material and the intended application. The drop height is crucial, as it determines the force of the impact. A higher drop height results in a more intense impact force.
4. Impact and Measurement
Once the weight is released, it falls onto the pipe sample, simulating the type of shock or impact the pipe might face. The impact causes stress on the pipe, and the tester measures how much deformation, cracking, or damage occurs. The computerized system records the data and analyzes the pipe’s resistance to the force.
5. Data Analysis and Reporting
The tester’s computerized system provides real-time data, including the exact force of impact, the deformation of the pipe, and any damage that occurred. The data is used to assess the pipe’s impact resistance and determine whether it meets the required standards for durability and strength.
6. Repeat Testing
To ensure accuracy and reliability, multiple tests are typically performed on different sections of the pipe or different pipe samples. This helps obtain consistent results and eliminates any anomalies caused by individual sample variations.
Applications of Computerized CSA Drop Impact Testers in Pipe Testing
1. PVC Pipe Testing
One of the most common applications of computerized CSA drop impact testers is in the testing of PVC pipes. These pipes are widely used for water, gas, and sewage systems, where they are exposed to varying levels of impact stress. The impact resistance of PVC pipes is vital to ensure their longevity and performance in these critical applications.
A detailed study of PVC Pipe Falling Weight Impact Testers provides valuable insights into how these machines offer precise measurements for the testing of PVC pipe resistance to drop impacts. These tests are particularly useful for ensuring that the pipes can endure the stresses encountered during installation and use.
2. Fittings and Joints Testing
PVC fittings and joints are integral to pipe systems and must be capable of withstanding impacts. A drop impact test helps evaluate the strength of the joints and connections between pipes, ensuring that they do not crack or weaken under pressure. This is particularly important when pipes are exposed to sudden shocks or vibrations.
3. Industrial Pipe Applications
In industrial settings, pipes are often subjected to rigorous conditions, such as high temperatures, pressure fluctuations, and mechanical stresses. Drop impact testers help assess how well pipes, including Falling Weight Impact Testers, can handle these harsh conditions and ensure they maintain their integrity over time.
4. Transportation and Installation
Pipes undergo significant mechanical stress during transportation and installation. Computerized CSA drop impact testers help simulate these stresses, ensuring that the pipes remain intact when subjected to falls or impacts during handling. This is crucial for minimizing damage during logistics and handling, especially for long-distance transport.
Factors to Consider When Choosing a CSA Drop Impact Tester
When selecting a computerized CSA drop impact tester for pipe testing, there are several factors to consider:
1. Test Range and Capacity
Ensure that the tester can handle the size and type of pipes you are testing. Some testers are designed specifically for small-diameter pipes, while others are capable of testing larger pipes. The tester should be able to accommodate the weight and drop height needed for your specific pipe material.
2. Accuracy and Precision
A high-quality impact tester should offer precise measurements and consistent results. Look for a tester with a high degree of accuracy in measuring the impact force and deformation, as well as the ability to provide detailed data analysis.
3. Data Reporting Features
Choose a tester with advanced data collection and reporting capabilities. The ability to generate comprehensive reports helps track the performance of your pipes over time and ensures compliance with industry standards.
4. Certification and Compliance
Ensure the tester complies with international standards and has relevant certifications, such as CE, to guarantee its reliability and accuracy. A certified tester will provide consistent and reliable results, which are crucial for making informed decisions about the pipe’s performance.
5. Ease of Use
Opt for a user-friendly system that simplifies the testing process. The computerized features should be easy to operate, with clear instructions and intuitive software to streamline data collection and analysis.
Conclusion
In conclusion, computerized CSA drop impact testers are indispensable tools in pipe impact resistance analysis. By simulating real-world impact conditions, these testers provide valuable insights into the durability and performance of pipes, ensuring they meet the rigorous demands of various industries. Whether you are testing PVC pipes, fittings, or industrial-grade pipes, selecting the right impact tester is crucial for ensuring long-lasting, reliable performance in challenging environments.
If you are looking to invest in a high-quality computerized drop impact tester, consider exploring options like the PVC Pipe Falling Weight Impact Tester or Falling Weight Impact Testers, which offer accurate, consistent, and reliable testing results.
