Compact Air Driven Hydrostatic Low Pressure Testing Equipment For Oilfield Blowout

They are mainly used to determine the resistance of internal pressure and short-time hydraulic burst to constant internal water pressure at constant temperature, which is designed for pressure testing plastic pipes and fittings in PE, PEX, PVC, PP, PB etc., glass fibre pipes, tubes.
Quantity:
  • GT-TANK
  • GT-TEST
  • 9024800000

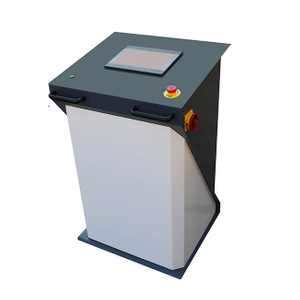

Hydrostatic Pressure Tester

Standards

  •  ISO 1167

  • ASTM D 1598

  • ASTM D 1599



Application

GT-HPS series is mainly used to determine the resistance of internal pressure and short-time hydraulic burst to constant internal water pressure at constant temperature, which is designed for pressure testing plastic pipes and fittings in PE, PEX, PVC, PP, PB etc., glass fibre pipes, tubes.


Features

  •  It is a modular pressure testing system with high accuracy no matter what size sample is connected to.

  • Self-developed solenoid valve greatly raises its working life, further maintenance is not needed.

  • With the advantage of pressure testing on large PE plastic pipes and fittings.

  • The compact and modular design enables up to 20 independent pressure stations to be connected over an area of just 0.5 m². A further significant advantage is the low energy consumption of this system.

  • Thanks to the high pressure water hydraulic pump and big capacity pressure reservoir to ensure maximum capacity at all times.



Software Features

  • With the functions of specimen pre-treatment, real time monitoring,test data storage, data power-off protection (memory) and recovering while powered on.

  • It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.

  • For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant pressure.

  • Protective measures are from electric part, mechanical part as well as software.



Highlights

  • pressure testing of even large PE pipe samples

  • Burst test, internal-pressure test

  • Easy to install and to operate

  • High accuracy pressure control

  • Online support via internet connection



Technical specifications

Output:                                  Up to 100 , 160 bar or 200 bar

Capacity:                                 to 20 stations (30 stations on request)

Pressure resolution:               0.01 bar

Timing range:                        0~10000h

Time resolution:                    1s

Timing mode:                       Counter-up, counter-down



Associated equipment

  • Test tank

  • End closures

  • Laboratory saw

 thermal bath test tank for pressure testing
