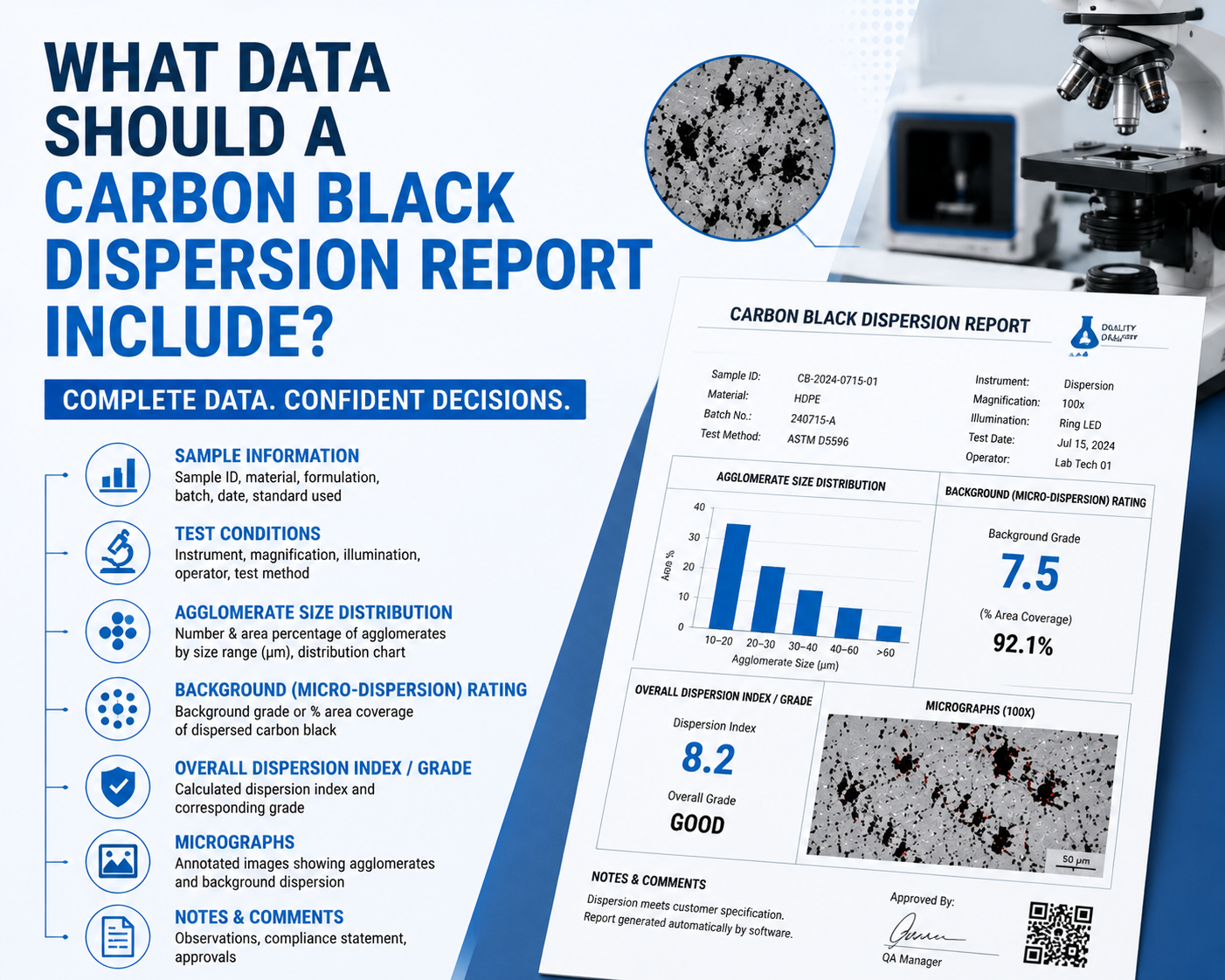

What Data Should A Carbon Black Dispersion Report Include?

In polymer and rubber manufacturing, poor carbon black dispersion directly correlates to premature mechanical failure, reduced conductivity, and compromised UV resistance. These microscopic flaws often remain entirely hidden from the naked eye. They only reveal themselves when a catastrophic product failure occurs in the field. A standard pass/fail metric is no longer sufficient for today. Modern, stringent QA/QC protocols demand much more from your laboratory. Decision-makers need granular, reproducible data. You must validate material performance and justify batch releases using unquestionable analytical evidence. You simply cannot optimize a compounding process you cannot measure accurately. The comprehensiveness of your report depends heavily on the analytical capabilities of your equipment. This guide outlines the essential data points you need. We detail the compliance markers and analytical metrics required in a modern, decision-grade dispersion report. We will explore how to successfully translate raw optical data into highly actionable production insights.

Key Takeaways

• A robust report must separate macro-dispersion (agglomerates) from micro-dispersion (background grading).

• Data must strictly align with international standards like ASTM D2663, ISO 18553, or ISO 11345 to ensure authoritative compliance.

• Modern reporting requires automated, operator-independent visual evidence (micrographs) rather than subjective human grading.

• The right testing equipment bridges the gap between raw optical data and actionable production adjustments.

The Business Impact of Accurate Dispersion Data

Risk Mitigation in Downstream Applications

Precise dispersion reporting drives critical business outcomes across your entire production floor. You rely on this precise data to mitigate severe operational risks. Undispersed carbon black agglomerates create dangerous stress concentrations. These structural weak points threaten extruded pipes, geomembranes, and protective cable jackets. They eventually cause severe pipe cracking or cable degradation under physical stress. Accurate reporting actively prevents these costly downstream failures. It empowers your QA team to intercept bad batches before they ever leave your facility. You protect your brand reputation by keeping defective materials out of the supply chain.

Driving Cost Efficiency in Compounding

Accurate dispersion reports also improve your operational cost efficiency dramatically. Compounding engineers use this granular data to systematically optimize mixing times. They adjust rotor speeds and internal shear forces based on feedback from the report. They can safely reduce energy consumption during the extrusion process. They achieve this without ever sacrificing structural material integrity. Shorter mixing times directly translate to higher factory throughput. You process more material in less time. You eliminate the wasteful practice of over-mixing batches just to guarantee filler dispersion.

Enforcing Supplier Accountability

Detailed technical reports enforce strict accountability across your raw material supply chain. They serve as an unquestionable, verifiable audit trail. You can hold raw material suppliers accountable for base carbon black quality. You can also verify specific pellet hardness parameters before accepting shipments. If a masterbatch fails during production, your dispersion report isolates the root cause. It conclusively proves whether the raw material was at fault or if your internal mixing parameters failed. You gain tremendous leverage during vendor negotiations when you possess empirical optical data.

Core Metrics Every Carbon Black Dispersion Report Must Deliver

Agglomerate Size Distribution (Macro-Dispersion)

Your report must break down complex physical properties into digestible metrics. We divide these measurements into macro and micro categories. First, examine the Agglomerate Size Distribution. This metric measures your macro-dispersion quality. The report must include quantitative, precise counts of un-dispersed particles. These dangerous agglomerates typically exceed 10µm in size. You should demand statistical representations of this data. Clear histograms showing particle size and frequency make it incredibly easy to spot anomalies. This macro data immediately flags severe failures in your initial mixing phase.

Background Rating (Micro-Dispersion)

The Background Rating measures your micro-dispersion quality. It evaluates the uniformly dispersed carbon black matrix surrounding the larger agglomerates. You need to know the exact percentage of area covered by agglomerates versus properly dispersed material. This metric tells you the base quality and tinting strength of the mix. Excellent macro-dispersion means nothing if the background matrix remains poorly distributed. A comprehensive report evaluates the background matrix to ensure optimal UV protection and uniform electrical conductivity.

High-Resolution Micrographs

Text and numbers alone cannot replace visual proof. High-resolution micrographs provide this necessary visual validation. They capture raw optical images of the freshly cut sample surface. Advanced analytical software then overlays colored highlights on detected agglomerates. These annotated images remain crucial for immediate visual validation by your QA technicians. They also serve as an essential historical record-keeping tool. You can review these images years later if a client reports a field failure. They provide undeniable proof of the sample's condition at the time of release.

Overall Grade and Dispersion Index

Laboratory managers need fast, reliable ways to approve production batches. You need an Overall Grade or Dispersion Index for this purpose. This index serves as a definitive numerical score. It calculates a weighted average from both macro and micro data points. It gives your QA team a quick-glance benchmark for batch approval or rejection. You set the acceptable threshold based on your specific application requirements.

Aligning Test Data with Global Standards

ASTM D2663 & ISO 11345 for Rubber Compounds

Global compliance requires standardized testing methodologies. Your laboratory data must align with recognized frameworks to carry any industry authority. For rubber compounds, ASTM D2663 and ISO 11345 dictate the absolute rules. The report must specify the exact grading scale used. Most analytical labs use a standard 1–10 scale based on standard reference photographs. Your report must also explicitly list the specific test method applied during the analysis. Method D under ASTM D2663 relies on optical microscopy. Documenting these specific methods guarantees your data holds up against third-party scrutiny.

ISO 18553 for Polyolefin Pipes and Fittings

Plastic manufacturers operate under different regulatory standards. For polyolefin pipes and fittings, ISO 18553 takes strict precedence. This standard mandates the specific data required for assessing pigment dispersion in plastic materials. Your report must reflect these exact parameters if you manufacture PE or PP pipes. It dictates the evaluation of specific sample cross-sections under transmitted light. You cannot use rubber testing standards to certify polyolefin pipes. The report must dynamically adapt its output formatting to match the material tested.

Audit Trails and Compliance Tracking

Audit trails guarantee the long-term integrity of your QA data. Modern manufacturers face intense scrutiny from external regulatory bodies. Ensure the generated report includes precise digital timestamps. It should clearly log the active operator IDs. It must also record recent hardware calibration events. These transparent details satisfy rigorous ISO 9001 requirements. They also meet the strict compliance audits demanded by the automotive and aerospace sectors. An unalterable audit trail proves you did not manipulate the data to force a passing grade.

How Your Carbon Black Dispersion Tester Dictates Report Reliability

Optical Resolution vs. Detection Limits

The overall quality of your report directly reflects the quality of your laboratory hardware. Optical resolution strictly limits what your equipment can actually see. A sub-par carbon black dispersion tester limits the report's accuracy entirely. It often fails to detect dangerous micro-agglomerates. This hardware limitation creates a false sense of security regarding your material quality. High-end optics utilize telecentric lenses and precise LED illumination angles. They capture edge definitions cleanly without unwanted shadowing. You need superior optics to guarantee the data feeding your report represents the true physical sample.

Algorithmic Consistency and AI Analysis

Algorithmic consistency matters just as much as physical optics. You must evaluate testers based on their automated image analysis software. Reports generated by algorithmic grading permanently remove subjective operator bias. Human technicians will eventually suffer from eye fatigue. They often grade the exact same sample differently on different days. Software algorithms grade the sample the exact same way every single time. This consistency remains a critical requirement for reliable multi-site benchmarking. You can compare data from your European facility with your Asian facility confidently.

Export and Integration Capabilities

Export and integration capabilities streamline your entire laboratory workflow. You should shortlist an advanced carbon black dispersion tester that seamlessly exports data into LIMS (Laboratory Information Management Systems). You want to extract raw data in PDF, CSV, or XML formats easily. The best hardware offers direct API integrations into your factory network. This removes dangerous manual data entry errors from your QA pipeline. If you are unsure which integration protocol fits your laboratory infrastructure, consult an expert to customize the right carbon black dispersion tester for your specific workflow.

Common Reporting Pitfalls and Implementation Risks

Sample Preparation Artifacts

Even the absolute best optical equipment cannot fix fundamental human error. Sample preparation artifacts frequently ruin otherwise perfect dispersion reports. A dull microtome blade leaves distinct scratch marks across the sample surface. The camera incorrectly interprets these linear scratches as large, undispersed agglomerates. Reports should always note potential surface quality warnings if the algorithm detects linear anomalies. Operators must practice flawless sample preparation techniques before running the analysis. Cryo-facing and sharp razor cuts represent the minimum baseline for accurate optical reading.

Single-Point Overreliance

Single-point overreliance remains another incredibly common reporting mistake. A single tiny cross-section never represents an entire mixing batch. It remains statistically insignificant in the context of a massive industrial mixer. Reports must intelligently aggregate data from multiple sample cuts. You should test several locations across the extruded profile. This rigorous sampling ensures true statistical significance. It proves batch uniformity rather than just localized luck. A robust report will display the variance and standard deviation across these multiple cuts.

Hardware Calibration Drift

Hardware calibration drift silently corrupts your QA data over time. Lenses accumulate microscopic dust. LED lighting intensity gradually degrades after thousands of hours of operation. You must transparently state your calibration assumptions on the final report. The document is only valid if the tester's baseline remains current. You must regularly use certified reference blocks to recalibrate the optical system. Establishing a strict calibration schedule prevents your reports from drifting out of compliance.

Conclusion

An effective carbon black dispersion report is not just a regulatory QA checkpoint. It serves as a highly critical diagnostic tool for your entire facility. It enables true process optimization and proactive risk management across your production lines. Comprehensive reports shift your QA team away from reactive problem-solving. They move toward proactive, data-driven quality assurance. You catch compounding errors before they inflate your scrap rates.

We advise buyers to strictly request sample reports from vendors during the equipment evaluation phase. You must compare these generated samples against the metrics and compliance standards outlined above. Verify their algorithmic consistency and high-resolution imaging capabilities before finalizing any capital expenditure. Demand transparent proof that the hardware can deliver the exact data points your decision-makers require.

FAQ

Q: What is the difference between macro and micro dispersion in a report?

A: Macro-dispersion evaluates large, un-dispersed agglomerates, typically measuring over 10µm. It highlights severe initial mixing failures. Micro-dispersion measures the background matrix. It looks at the uniformly dispersed carbon black particles surrounding the larger chunks. A comprehensive report provides distinct, separate scores for both to give a complete picture of overall mixture quality.

Q: How often should a carbon black dispersion tester be calibrated to ensure report accuracy?

A: Industry standards recommend calibrating your equipment at least annually. High-volume laboratories should perform basic calibration verification monthly. You must use NIST-traceable certified reference blocks to check optical resolution and software accuracy. Regular calibration prevents data drift and ensures your reports maintain strict ISO and ASTM compliance over time.

Q: Can automated dispersion reports replace traditional visual grading?

A: Yes, automated reports easily outperform traditional visual grading. Human operators suffer from eye fatigue and subjective bias. Two technicians often grade the exact same sample differently. Automated optical analysis completely eliminates this subjectivity. It applies the exact same mathematical rules to every image, ensuring perfectly reproducible data.

Q: What file formats should a modern dispersion tester output?

A: Modern systems must output unalterable PDF files for compliance and strict audit purposes. For robust data integration, they should also export raw analytical data as CSV or XML files. These flexible formats allow seamless integration into your Laboratory Information Management Systems (LIMS), eliminating manual entry errors.
