Poor carbon black dispersion aggressively compromises UV resistance and mechanical strength. This leads directly to premature failure in plastics, pipes, and rubber components. You cannot afford field failures when structural integrity and weathering resistance matter most. Relying on subjective, manual visual inspections introduces high operator variance. This guesswork also creates significant compliance risks during rigorous quality audits. Human eyes simply cannot quantify micro-agglomerates consistently across different production shifts.
Transitioning to a standardized workflow requires precise sample preparation alongside reliable analytical equipment. You must implement a high-quality carbon black dispersion tester to guarantee objective, reproducible quality control. Modern laboratories use these automated tools to replace subjective opinions with hard, actionable data. This guide walks you through establishing a robust, error-free testing workflow to elevate your facility's output.
Key Takeaways
Effective workflows separate sample preparation errors from actual dispersion issues.
Automated carbon black dispersion testers eliminate operator bias by utilizing algorithmic grading against established industry standards.
Compliance with ASTM D5596 or ISO standards requires documented, repeatable image capture and calibration protocols.
Selecting the right equipment depends on lab throughput, LIMS integration needs, and the specific polymer matrices tested.
The Business Case for Standardizing Dispersion Analysis
Laboratories can no longer rely on visual comparisons against printed reference charts. Transitioning to a digital workflow protects your brand reputation and minimizes costly material waste. A standardized approach provides defensive data during client disputes or compliance audits.
Defining Success Criteria
Moving from qualitative "pass/fail" guesswork to quantifiable metrics transforms your quality control strategy. You need exact data on agglomerate sizing, spatial distribution, and overall background grading. Modern automated systems scan the polymer matrix and measure every visible particle. They generate a precise statistical breakdown. This allows you to set strict tolerance limits based on actual defect areas rather than human interpretation. If a batch fails, you know exactly why it failed.
Industry Applications
Certain sectors demand flawless compounding. Plastics and pipe manufacturing sectors face critical requirements where structural integrity remains paramount. Pressure pipes extruded from polyethylene (PE) will suffer catastrophic hydrostatic failure if carbon black agglomerates act as stress concentrators. Similarly, telecommunication cables and agricultural films rely on even dispersion for maximum UV protection. Poorly mixed particles leave large areas of the polymer matrix exposed to solar radiation. This accelerates chalking, cracking, and mechanical breakdown.
Compliance Framework
Meeting rigorous requirements satisfies auditor scrutiny and client quality assurance demands. Global standards like ASTM D5596 and ISO 18553 dictate specific preparation methods and grading scales. A standardized digital workflow ensures you remain compliant. It forces operators to follow documented steps. It also records unalterable digital proof of every test. When an external auditor reviews your lab, automated records demonstrate technical competence and process control.
Chart: Traditional vs. Standardized Dispersion Workflows |
Workflow Attribute | Traditional Manual Testing | Standardized Automated Testing |
|---|
Grading Method | Subjective visual comparison | Algorithmic particle mapping |
Data Output | Pass/Fail or rough scale (1-5) | Agglomerate size, count, and area percentage |
Audit Trail | Paper logs, prone to loss | Secure digital images and timestamped databases |
Operator Variance | High (differs by technician) | Zero (standardized optics and algorithms) |
Core Capabilities to Evaluate in a Carbon Black Dispersion Tester
Not all analytical instruments perform equally. Upgrading your lab requires evaluating the internal mechanics and software intelligence of the equipment. You need a system built specifically for polymer analysis.
Optical and Illumination Hardware
Fixed, high-resolution optics capture micro-agglomerates without edge distortion. The camera sensor must possess enough megapixel density to differentiate between closely packed particles. Low-quality lenses create a fisheye effect. This inflates the perceived size of agglomerates near the edge of the field of view.
Consistent, calibrated illumination is equally critical. You want to avoid false shadowing or overexposure. Surface reflections often trick the camera into seeing white spots, while shadows look like dark carbon clumps. Superior machines utilize coaxial or ring LED lighting setups. These designs cast uniform light across the entire sample surface, ensuring true particle representation.
Analytical Software and Automated Grading
Replacing manual reference charts with algorithmic image analysis represents the biggest leap in laboratory efficiency. You should evaluate software capabilities for auto-categorizing agglomerate size, background grading, and defect mapping. The software must automatically subtract the background matrix and highlight the unmixed carbon black. When evaluating a high-performance carbon black dispersion tester, ensure its algorithms adhere strictly to recognized ISO and ASTM grading scales. The system should flag anomalies instantly and generate detailed histograms of particle distribution.
The best optics cannot fix a poorly prepared specimen. You must assess integrated or complementary tools required for optimal specimen creation. These include hot plates, precision microtomes, and hydraulic melt-presses. Some manufacturers bundle these preparation tools alongside the main optical unit. Having a cohesive equipment ecosystem prevents compatibility issues and streamlines operator training.

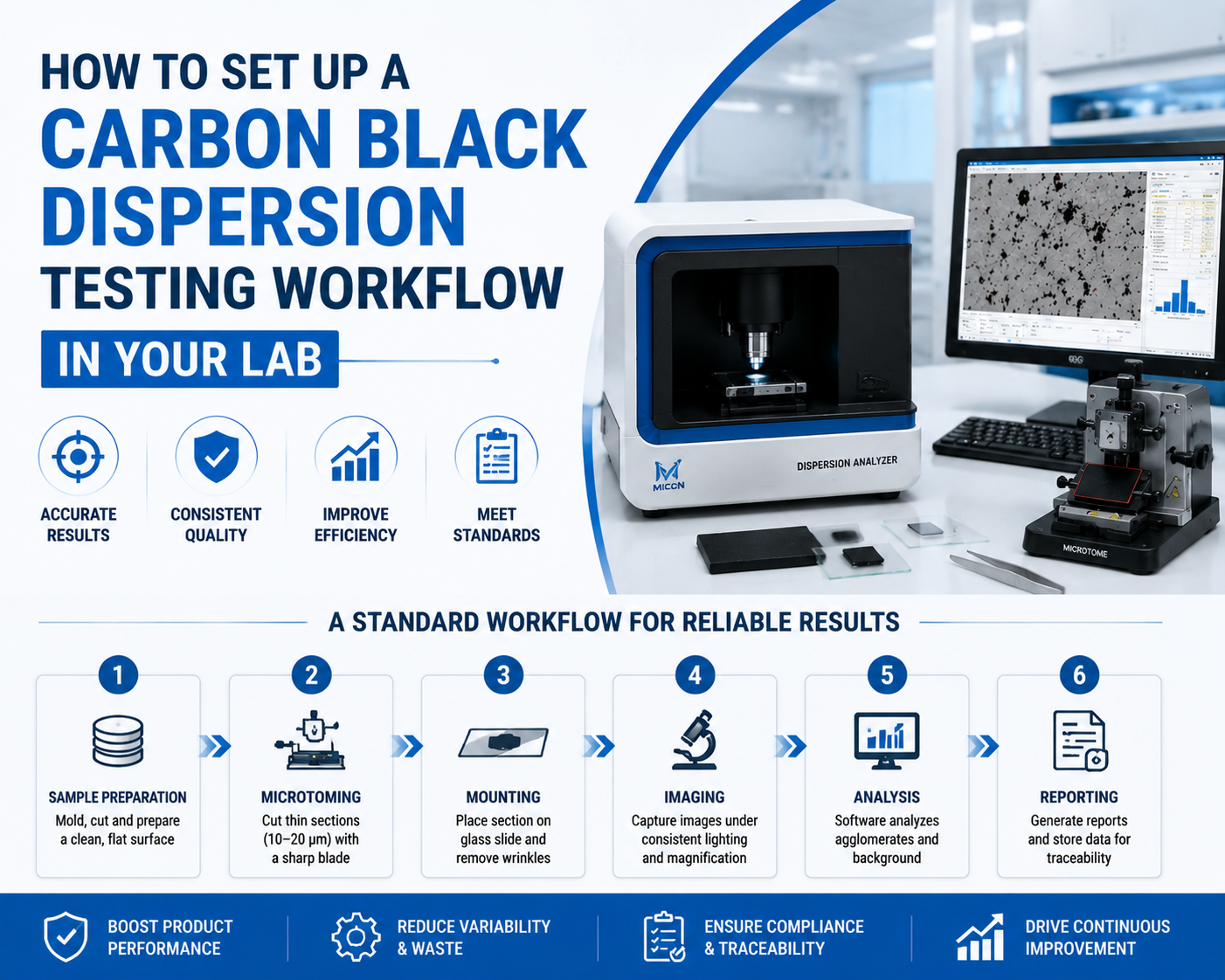

Step-by-Step Lab Workflow Implementation
Introducing new equipment requires a structured rollout. A phased implementation ensures your technicians adapt smoothly and maintain strict process discipline.
Phase 1: Specimen Preparation
Establishing strict protocols for microtome slicing or melt-pressing forms the foundation of reliable testing. Operators must handle samples carefully to prevent contamination.
Follow this standard sequence for preparation:
Extract a representative sample from the production batch.
Clean all cutting tools and pressing plates using isopropyl alcohol.
Use a precision microtome to slice the sample, or use a melt-press to flatten it.
Transfer the specimen to a clean glass slide using sterile tweezers.
Note: Inconsistent sample thickness is the leading cause of false dispersion readings. A sample cut too thick blocks transmitted light. This makes the background appear artificially dark. A sample cut too thin may tear, creating gaps that algorithms misinterpret as light defects.
Phase 2: Calibration and Baseline Setup
Setting routine calibration schedules using traceable reference standards must occur before testing any live batches. You cannot assume the optical alignment remains perfect indefinitely. Establish a daily baseline. Technicians should insert a certified calibration slide at the start of every shift. The software will read this slide and verify spatial measurements and lighting intensity. If the system drifts out of tolerance, it must prevent users from running real tests until they realign the hardware.
Phase 3: Image Capture and Data Extraction
Standardizing focus depths and exposure settings guarantees reproducible data. Once you secure the sample under the lens, the operator must utilize the autofocus feature or follow a strict manual focus protocol. Variations in focus blur the edges of agglomerates. This alters their measured surface area.
After achieving sharp focus, you run the automated analysis to quantify carbon black distribution. The software snaps the image, applies the specific grading algorithm (like ASTM D5596), and calculates the results within seconds. Operators must refrain from manually adjusting exposure sliders during this phase, as doing so invalidates the standardized test conditions.
Phase 4: Interpreting Results and Documentation
Translating visual data and algorithmic scores into actionable QC decisions keeps production moving safely. The software dashboard will display an overall grade alongside a detailed particle map. If the material scores a failing grade, the lab manager can immediately halt production.
Automating data export to Laboratory Information Management Systems (LIMS) eliminates transcription errors. Modern testers push results directly into your central database. This seamless integration saves time and ensures your historical data remains intact for future audits.
Common Setup Pitfalls and Operator Risks
Even automated systems require vigilant oversight. Human error during the preparation phases frequently compromises the final analytical output.
Preparation Artifacts
Mistaking surface scratches, dust, or knife marks for carbon black agglomerates ruins data integrity. A dull microtome blade leaves distinct parallel drag marks across the polymer surface. Dust particles settling on the glass slide appear as dark anomalies under intense illumination. You must train operators to recognize these artificial defects. True agglomerates appear randomly distributed and irregularly shaped. Scratches usually form straight, continuous lines.
Calibration Drift
Failing to verify optical alignment and lighting intensity over time leads to severe baseline shifts. LED bulbs degrade slowly. Mechanical stages vibrate and lose perfect alignment. If you skip daily verification checks, the machine might start grading marginal samples as passing. This exposes your company to massive liability. Enforce strict daily calibration habits.
Misunderstanding Content vs. Dispersion
Clarifying testing definitions prevents dangerous assumptions on the production floor. Verifying the percentage of carbon black (content testing) does not guarantee it is evenly mixed (dispersion testing). You might have the perfect 2.5% carbon black content by mass. However, if all that carbon black clumps into one corner of the pipe wall, the remaining pipe possesses zero UV protection. Your team must understand they need both tests to certify a product.
Best Practices vs. Common Mistakes |
Workflow Stage | Best Practice | Common Mistake |
|---|
Cutting | Replace microtome blades frequently. | Using dull blades, causing drag marks. |
Handling | Use clean tweezers and lint-free wipes. | Touching slides with bare fingers. |
Environment | Test in a temperature-controlled, clean room. | Testing near dusty manufacturing lines. |
How to Shortlist Equipment for Your Facility
Purchasing analytical equipment represents a major capital investment. You must align the machine's capabilities with your specific operational realities.
Throughput Requirements
Matching machine speed and automation levels to your daily sample volume prevents laboratory bottlenecks. A research and development lab might only test five samples a day. They can utilize a manual-focus, basic desktop unit. A 24/7 production lab manufacturing miles of pipe daily needs rapid, motorized stages. High-throughput labs require systems capable of scanning multiple slides sequentially without operator intervention.
Software Transparency
Avoiding "black box" algorithms protects your testing credibility. Ensure the system allows technicians to audit and verify how grades are calculated. If an auditor asks how the machine determined a failing grade, you must easily display the underlying pixel math and standard curve. Proprietary algorithms that hide their calculation methods often fail rigorous external validation processes.
Vendor Support and Training
Evaluating the vendor's ability to assist with installation qualification (IQ) and operational qualification (OQ) is mandatory. The best hardware fails if installed incorrectly. Ensure the vendor provides comprehensive on-site operator training. They should help you write your internal Standard Operating Procedures (SOPs) based on their equipment's specific workflow.
Next Step Action
Request a blind sample test from shortlisted vendors using your facility’s actual polymer or pipe compounds. Do not rely solely on their polished marketing materials. Send them difficult, borderline samples. Compare their automated reports against your historical data. Before finalizing your decision on a new carbon black dispersion tester, demand proof of real-world accuracy on your specific materials.
Conclusion
Transitioning from subjective checking to standardized, automated workflows completely transforms laboratory quality control. You eliminate human bias, reduce false rejection rates, and generate defensible digital audit trails. This transition requires careful planning, strict sample preparation protocols, and reliable equipment.
Prioritize consistent sample preparation; perfectly flat, clean specimens are non-negotiable.
Enforce strict daily calibration to prevent optical baseline drift.
Select equipment featuring transparent software algorithms and LIMS integration.
Train operators to differentiate between actual agglomerates and preparation artifacts like dust or blade scratches.
Final reminder: The best automated optical equipment will only perform as well as the lab's sample preparation and calibration discipline allows. Build your workflow around repeatability, and your data will remain unassailable.
FAQ
Q: What is the difference between a carbon black content tester and a dispersion tester?
A: Content testers measure the total percentage of carbon black by mass within a sample. Dispersion testers evaluate how evenly those specific particles are distributed at a microscopic level across the polymer matrix.
Q: Which industry standards apply to carbon black dispersion testing?
A: ASTM D5596, ISO 18553, and specific regional equivalents dictate precise preparation methods, optical requirements, and standardized grading scales for carbon black agglomerates.
Q: Can dispersion testing software completely replace human operators?
A: No. While software completely eliminates subjective grading bias, highly skilled operators are still required for precise specimen preparation, slide handling, and routine system calibration.
Q: How often should optical testing equipment be calibrated?
A: Routine internal verification using standard reference slides should occur daily or per shift. Formal vendor calibration and optical alignment are typically conducted annually.
