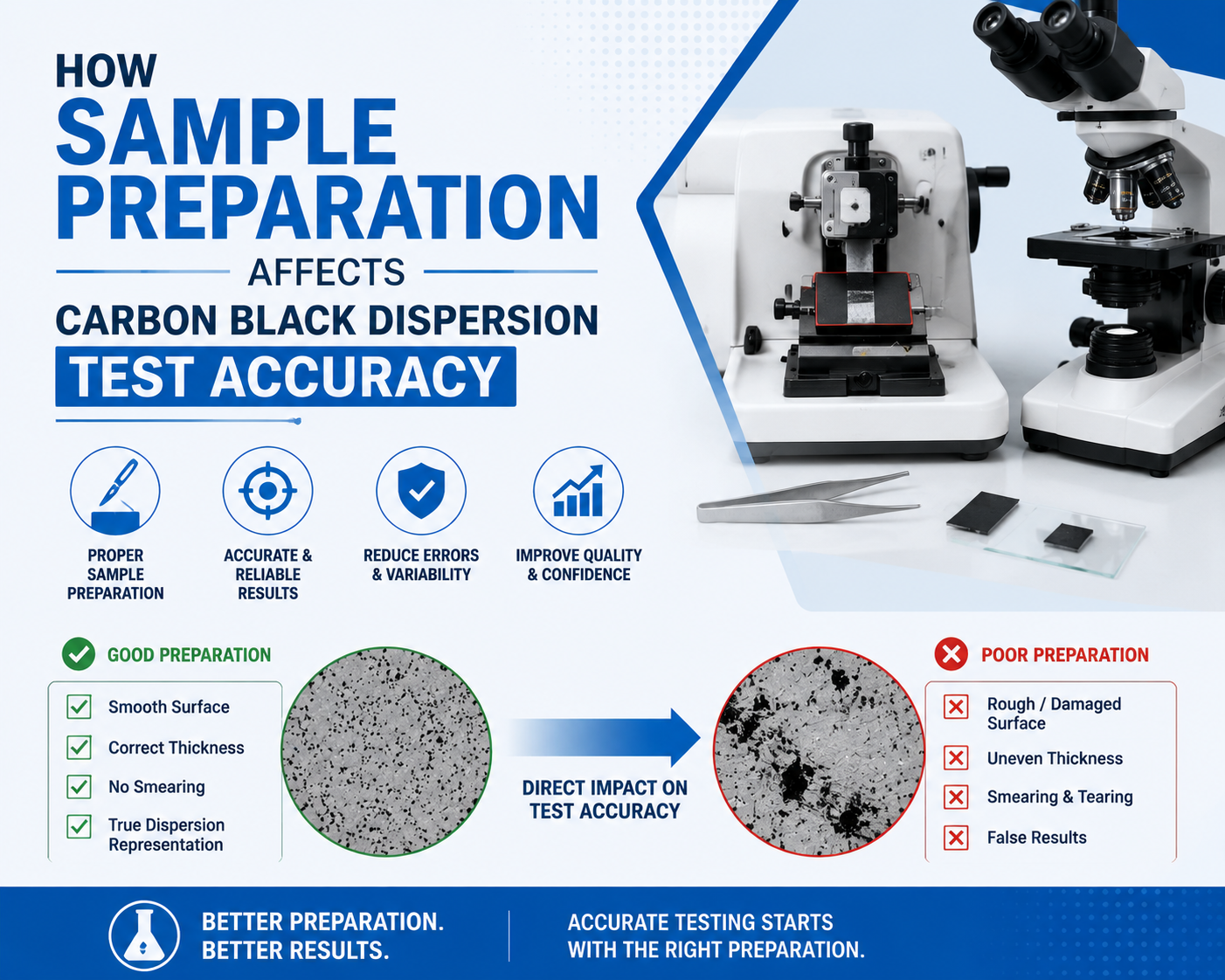

How Sample Preparation Affects Carbon Black Dispersion Test Accuracy

High-resolution optical testing is only as reliable as the sample provided. Even the most advanced analytics cannot compensate for smeared agglomerates. Uneven cuts or thermal distortion introduced during preparation ruin data entirely. In industries ranging from geosynthetics to extruded plastics, inaccurate grading causes massive issues. It leads to premature UV degradation. It drastically reduces tensile strength. You also face costly material rejections.

This guide breaks down how sample preparation flaws manifest as testing errors. You will learn the specific standard protocols you must follow. Proper technique directly prevents these common analytical failures. We also explore how to evaluate testing equipment effectively. You need analytical systems capable of processing prepared samples correctly. This synergy ensures reliable QA/QC outcomes every single time.

Key Takeaways

• Sample thickness and surface uniformity directly dictate the accuracy of agglomerate sizing and background rating.

• Improper microtomy or hot-pressing introduces mechanical artifacts (smearing, tearing) that software algorithms misidentify as poor dispersion.

• Aligning sample preparation with established standards (e.g., ASTM D5596, ISO 18553) is non-negotiable for reproducible baseline data.

• Selecting a capable carbon black dispersion tester requires evaluating its optical depth-of-field and software's ability to filter out minor, unavoidable preparation artifacts.

The Business Impact of Preparation-Induced Testing Errors

Analytical accuracy starts long before the sample reaches the microscope stage. Flawed preparation introduces significant liabilities. These errors hit your bottom line hard. They disguise bad materials and condemn good ones. Understanding these business impacts helps prioritize laboratory training.

• False Negatives (Overestimating Quality): Thick samples mask micro-agglomerates. This masking allows out-of-spec materials to pass QA protocols smoothly. You then face latent liabilities in field applications. For example, geomembrane liners rely on uniform dispersion for UV resistance. Hidden agglomerates create weak points. These liners eventually crack under environmental stress. This failure causes catastrophic leaks and exposes you to massive liability claims.

• False Positives (Unnecessary Rejections): Blade scores from poor prep look like carbon clumps. Thermal degradation also mimics agglomeration. Automated software flags these mechanical errors incorrectly. As a result, QA rejects perfectly viable batches. You scrap good materials needlessly. This wastes expensive raw polymer and reduces overall factory yield.

• Compliance & Audit Risks: Global supply chains demand strict adherence to testing protocols. Deviating from ASTM or ISO preparation standards is dangerous. It renders your test data completely indefensible. Clients routinely demand third-party audits. If auditors discover non-compliant sample thicknesses, they reject the entire batch history. You lose client trust instantly. Standardized preparation protects your legal and commercial standing.

Common Sample Preparation Bottlenecks (and How They Skew Data)

Every step in the preparation workflow introduces unique risks. Mechanical forces alter the polymer matrix. Heat changes the compound structure. Human error creates inconsistencies. We must identify these bottlenecks to correct them.

Microtomy and Cutting Artifacts

Microtomy requires precision and sharp tools. When operators neglect equipment maintenance, data suffers immediately.

Blade Dulling: A dull microtome blade drags across the polymer surface. It causes aggressive "chatter marks." The blade also pulls carbon particles out of the matrix. This creates directional smearing. Optical software reads these smears as massive agglomerates. Your particle shape data becomes heavily skewed. The circularity metrics drop artificially.

Thickness Variations: Sample thickness governs optical clarity. Samples exceeding 20 microns drastically reduce light transmission. The background matrix appears much darker than reality. Software interprets this dark background as poorly dispersed carbon. It artificially lowers your final dispersion grade. You fail batches simply because the slice was too thick.

Hot-Pressing Distortions

Some laboratories use hot-pressing instead of microtomy. This thermal approach carries distinct physical risks.

Polymer Flow Disruption: Hot-pressing melts the polymer matrix. Applying excessive heat or pressure forces the material to flow rapidly. This flow artificially shears existing carbon agglomerates apart. The final sample looks highly dispersed. However, this presents a falsely optimistic rating. The actual extruded product remains clumped and weak.

Surface Contamination: Heating platens attract environmental debris. Dust settles on the polymer easily. Platen residue embeds directly into the softened surface. Brightfield and darkfield microscopy capture these contaminants clearly. The software registers them as opaque carbon particles. You get a false positive for poor dispersion.

Operator-to-Operator Variability

Manual preparation relies heavily on human technique. This introduces significant subjectivity.

Inconsistent slicing speeds change sample topography. Variable pressure during hot-pressing alters thickness. These human factors lead to severe baseline data drift. A morning shift might produce 15-micron samples. The night shift might produce 25-micron samples. You cannot compare their data reliably. Standardizing operator movements is critical.

Standardizing the Workflow: Best Practices for Optical Evaluation

Eliminating variability requires strict procedural controls. You must treat sample preparation as a highly scientific process. Follow these core practices to ensure reliable baseline data.

1. Target Specifications: You must achieve a consistent sample thickness. Target 10 to 15 μm for most polyolefins. This specific range ensures optimal light transmission. Transmitted-light microscopy relies entirely on this transparency. Thinner samples prevent agglomerates from overlapping vertically. Overlap confuses image analysis algorithms.

2. Cooling and Conditioning: Room temperature polymers often deform under a blade. They compress rather than cut cleanly. You must condition the matrix properly. Use cryogenic sprays or liquid nitrogen cooling. Freezing the sample stiffens the polymer chains. This prevents elastic deformation during the cut. You achieve a perfectly flat optical plane.

3. Standard Alignment: Lab procedures must match international standards. Map your internal SOPs directly to standard test methods. Use ISO 18553 for polyolefin pipes and fittings. Apply ASTM D5596 for geosynthetics. These standards define exact thickness parameters and evaluation criteria. Alignment removes guesswork from your daily operations.

4. Slide Preparation: Mount the cut sample immediately. Use standard glass slides. Apply a coverslip to flatten any minor curling. Ensure the mounting medium matches the refractive index of the polymer. This reduces edge-scattering under the microscope.

Evaluating a Carbon Black Dispersion Tester: The Equipment Synergy

Perfect sample preparation is rarely achievable in high-volume environments. Minor flaws always occur. Therefore, your analytical hardware must compensate intelligently. Hardware and software must handle real-world, imperfect samples robustly.

Optical Tolerance and Depth of Field: Even the best microtome cuts have minor topographical variances. A basic microscope loses focus across a wavy sample. Does your equipment feature motorized autofocus? Dynamic lighting is equally crucial. A high-end carbon black dispersion tester adjusts Z-axis focus automatically. It compensates for uneven slices dynamically. This keeps the entire image sharp for the algorithm.

Intelligent Defect Filtering: Preparation introduces inevitable artifacts. Air bubbles form under coverslips. Blades leave microscopic scratches. Surface dust settles quickly. Basic software counts all dark spots as carbon. Advanced software differentiates them. It evaluates the software’s capability to identify genuine carbon agglomerates. Shape-recognition algorithms filter out linear scratches. They ignore perfectly round air bubbles using refraction halos. This filtering prevents false rejections.

Calibration and Baseline Setting: Light bulbs dim over time. Camera sensors age. How does the system adapt? The system must use standard reference slides. Daily calibration ensures variations in light intensity do not skew data. Without calibration, the software interprets slightly thicker samples as having a higher carbon black percentage. It misjudges the background matrix opacity.

Data Reproducibility (Gauge R&R): True equipment quality shows in reproducibility. The tester's ability to return the exact same dispersion rating matters most. You must achieve identical results when different operators analyze the same prepared sample. High Gauge R&R scores prove the automated system eliminates human subjectivity entirely.

Implementation Roadmap: Upgrading Your Lab’s Capabilities

Modernizing your laboratory requires a structured approach. Do not buy new software and ignore old preparation tools. You need a synchronized upgrade strategy.

Audit Existing Prep Tools: Start by assessing your current physical assets. Check the condition of all microtomes. Are the blade holders secure? Evaluate your embedding media. Inspect heating presses for platen damage. Worn-out tools guarantee bad cuts. You must fix mechanical issues before investing in advanced analytics. A brilliant camera cannot fix a mangled polymer slice.

Trial with Real Samples: Vendor demonstrations often use perfectly prepared reference slides. Do not accept this. When shortlisting a new carbon black dispersion tester, demand real-world trials. Require vendors to run blind tests on your actual plant samples. Include intentionally poorly prepared ones in the batch. You must evaluate software robustness under stress. Watch how the algorithm handles your specific chatter marks and thickness variations.

SOP Integration: Technology upgrades fail without operator buy-in. Develop parallel training tracks immediately. Dedicate one track to modern sample preparation techniques. Focus heavily on microtomy physics and tool maintenance. Dedicate the second track to equipment operation. Teach operators how the software analysis works. When operators understand how the camera sees a scratch, they cut more carefully.

Conclusion

Accurate carbon black dispersion analysis is essentially a two-part equation. You need rigorous, standardized sample preparation first. You then need intelligent optical evaluation. Neither side functions effectively without the other. Smeared agglomerates will always defeat simple cameras.

Investing in high-end analytics yields poor ROI if the upstream process is flawed. Labs must view the microtome and the dispersion tester as a single system. They form an integrated quality control loop. Poor cuts waste advanced algorithmic power.

Encourage your lab managers to act today. Review your current ASTM and ISO compliance levels. Audit your microtome maintenance logs. Finally, evaluate testers offering advanced artifact-filtering capabilities. Upgrading both your physical tools and analytical software protects your product integrity permanently.

FAQ

Q: What is the ideal sample thickness for carbon black dispersion testing?

A: The ideal thickness ranges strictly between 10 to 20 microns. This depends on the specific polymer matrix and the governing standard, like ISO 18553. This precise thickness allows sufficient light transmission. It ensures carbon agglomerates do not overlap vertically. Overlapping obscures actual particle sizes and distorts the background opacity readings.

Q: Can a modern carbon black dispersion tester fix poorly cut samples?

A: No equipment can "fix" a physically ruined sample. However, advanced software easily filters out minor anomalies. It ignores blade scratches, surface dust, or tiny air bubbles using shape recognition. Despite this, severe mechanical smearing or extreme thickness variations will always require you to re-cut the sample.

Q: Why do manual dispersion ratings differ so much between operators?

A: Manual ratings rely on high visual subjectivity. Operators visually compare microscopic samples to standard printed reference charts. Human eyes interpret shadows and clumps differently. This subjectivity is compounded by slight physical variations in how each operator cuts the slice. Automated testers eliminate this visual guesswork completely.
