Abrasion Testing Machine for PE-UHMW
Standards
ISO15527
SH/T 1818-2017
TCSTM 00173-2019
DB51/T 2450—2018
Application
Abrasion tester is mainly for determination ultra-high molecular weight polyethylene (PE-UHMW) and PE-HD abrasion performance. It is an necessary testing machine for resin products manufacturers factory inspection, downstream processing enterprises entrance inspection and product comparison.
It is controlled by the microcomputer, the real-time rate of rotation and temperature can be accurately displayed on the panel, at the same time may do the countdown setting on the panel, this control way ensures accurate values, high precision and no hysteresis phenomenon.
Features

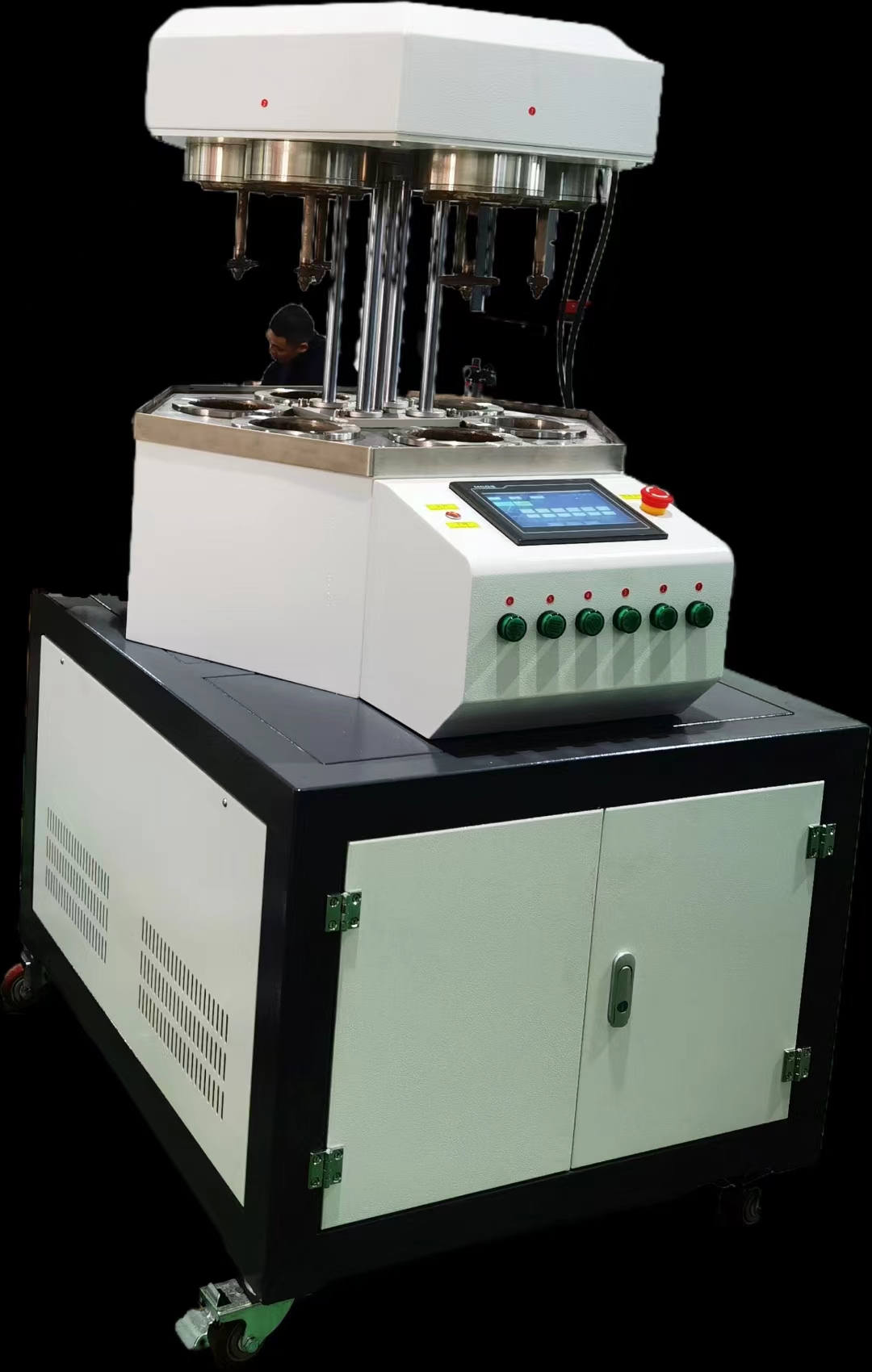

The instrument is set up with 6 test stations, it can be done at the same time on 6 specimens, each station is connected with the synchronous belt, and the spindle motor speed without deviation to ensure the consistency of its rate of rotation, which greatly improves the comparability of the results.
Automatic lifting system, high test efficiency and good safety

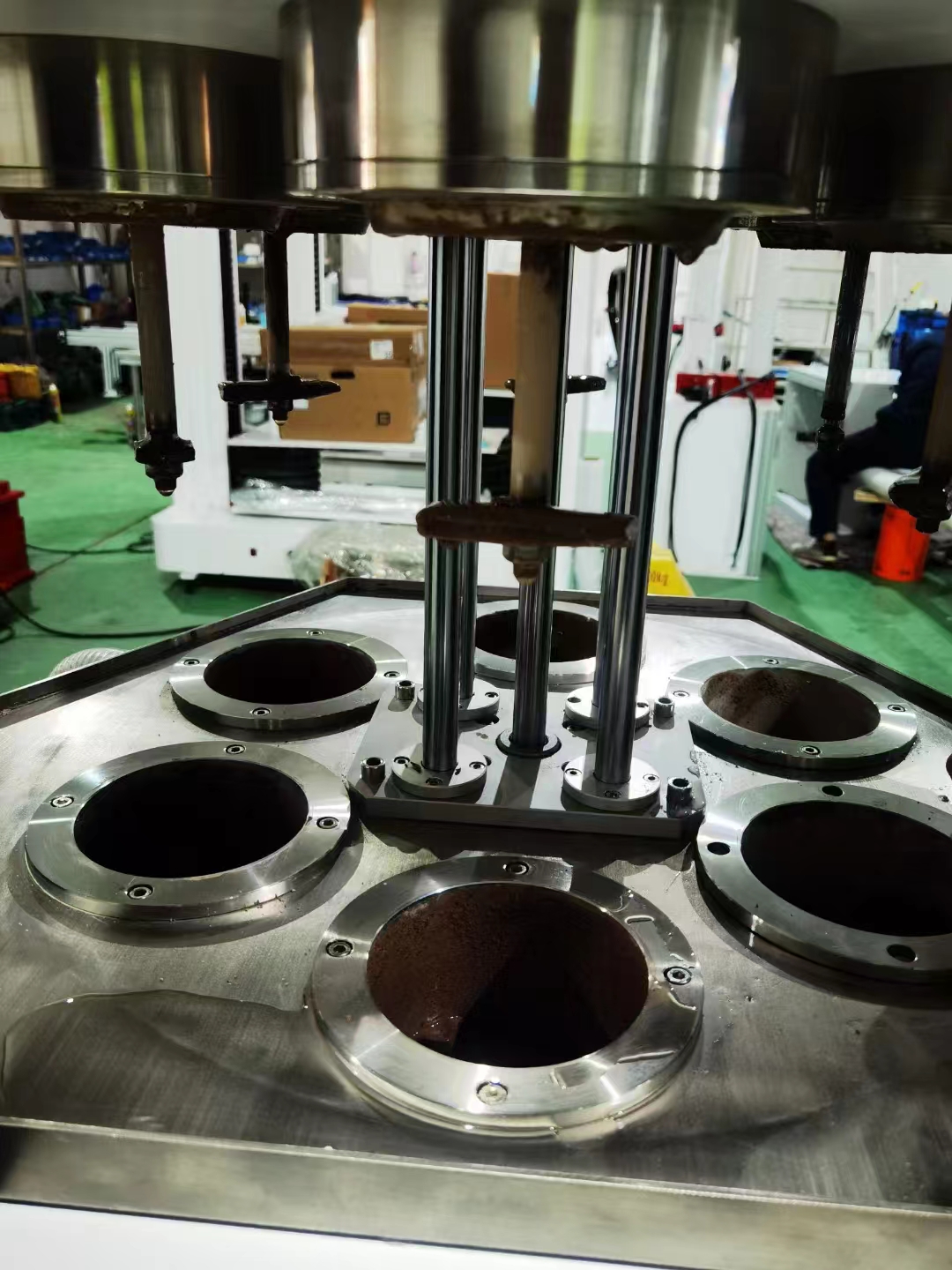

Immersed abrasion test cup design

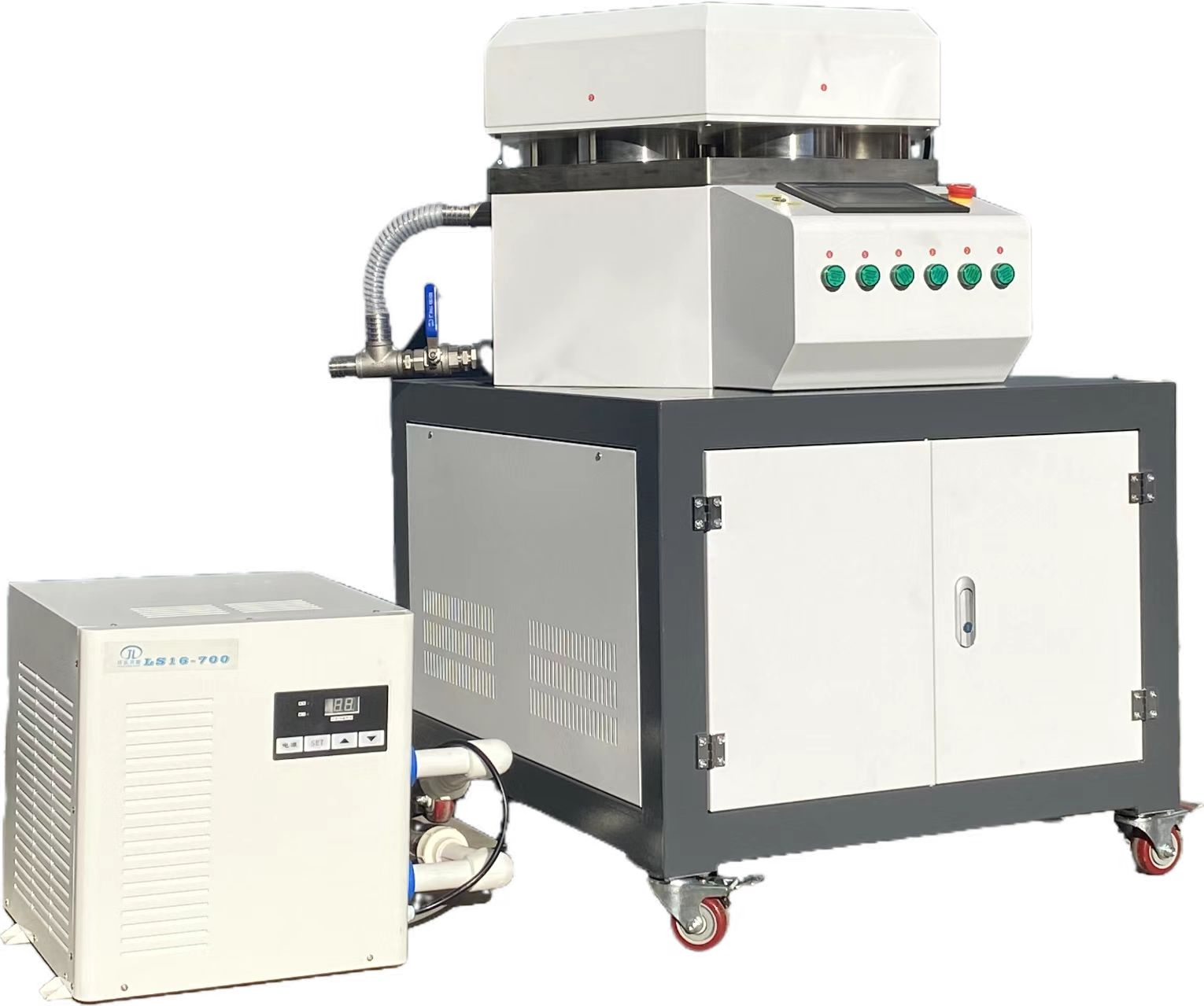

Separate cooling system
Rotating specimen disk, external suspension stirring design
Automatic test, real-time monitoring test paramters
Display panel may set the test time (countdown mode, the system defaults 3 hours), the timing device is automatically activated when test starts, the display panel can show the current slurry temperature and specimen rotation, simplifying the operating steps and work intensity.
Technical Parameters
1. Number of instrument test stations: 6
2. Rate of rotation: 800 to 1400r/min
3. Rote control precision: 1% (≥1000r/min); 10r/min (＜1000r/min)
4. Rate of rotation display resolution: 1r/min
5. Timing accuracy: 1s
6. Timing deviation: 0.1%
7. Temperature display resolution: 0.1 ℃
8. Temperature control accuracy: ± 0.5 ℃
9. Tank volume: 35 liters
10. Mortar ratio in each test cup: silica sand 450g of silica san, 300g of water
11. Refrigeration power: 5.1KW
12. Refrigeration medium: water
13. Power supply: 220VAC 2Kva
14. Dimensions (L ×W × H): 1.2 × 0.5 × 1.2 (m)
15. Weight: 220kg
