Batch rejections from failed opacity tests drain finances and ruin reputations in plastic pipe manufacturing. When production lines yield non-compliant batches, you face immediate material waste, delayed shipments, and the threat of field failures. Unchecked light transmission in above-ground piping leads directly to severe structural and operational issues. Ultraviolet radiation degrades the polymer matrix over time. Sunlight penetration facilitates rapid algae and bacterial growth within water supply lines. These defects violate strict industry quality standards and accelerate the physical failure of the piping system.
Resolving these persistent failures requires a dual-pronged approach. First, you must diagnose the root causes of the defects. These typically trace back to poor pigment dispersion, uneven wall thickness, or unmanaged process variations during extrusion. Second, facilities must implement a reliable opacity tester for pipes and fittings to ensure verifiable ISO compliance. By addressing mechanical extrusion issues and upgrading measurement capabilities, production teams eliminate light transmission failures and secure long-term product integrity.
Regulatory Baseline: ISO 7686 dictates strict light transmission limits (typically ≤ 0.2%); failing to meet these standards compromises pipe integrity and safety for potable water applications.
Primary Failure Modes: Most opacity failures stem from microscopic pigment agglomeration, extrusion die misalignment causing thin walls, or process-induced porosity.
Dual-Risk of Defects: Physical defects like uneven wall thickness and porosity not only fail opacity tests but also compromise the pipe's pressure resistance and physical strength.
Testing Necessity: Relying on visual inspection is inadequate; automated, sensor-driven opacity testing is required to quantify light transmission accurately.
Equipment Evaluation: Selecting the right testing equipment requires balancing sensor sensitivity, sample accommodation size, and integration with existing QA data logging systems.
The Business Impact of Opacity Failures in Plastic Piping
Light-Induced Degradation and Biological Risks
Ultraviolet degradation poses a severe threat to the structural integrity of unplasticized polyvinyl chloride (PVC) and polyethylene (PE) pipes. When light penetrates the polymer matrix, it initiates photo-oxidation. This chemical reaction breaks the long polymer chains. The material becomes brittle, loses tensile strength, and eventually cracks under pressure. Without adequate opacity to block UV rays, above-ground installations suffer drastically reduced lifespans. This leads to premature mechanical failure in the field.
Beyond structural decay, light transmission creates severe operational risks for water supply lines. Sunlight penetration provides the necessary energy for photosynthesis. This facilitates rapid algae and bacterial proliferation inside the pipe. Biological growth contaminates potable water, clogs valves, and degrades water quality. Preventing light ingress remains a fundamental requirement for maintaining sanitary conditions in any fluid transport system exposed to ambient light.
ISO 7686 serves as the definitive international standard for measuring the opacity of plastic pipes and fittings. The standard specifies the exact methodology for determining light transmission and establishes rigorous success criteria. For most applications, the acceptable limit for light transmission is strictly capped at 0.2%. Achieving this threshold ensures the pipe provides sufficient shielding against both UV degradation and internal biological growth.
Failing to meet these ISO 7686 requirements carries heavy business risks. Non-compliant batches result in immediate material waste and force production halts. This disrupts supply chains and delays shipments. If non-compliant pipes reach the field, manufacturers face substantial liability for premature structural failures and water contamination incidents. Loss of certification due to repeated quality control failures permanently damages a manufacturer's market standing.
Root Cause 1: Pigment Dispersion and Agglomeration
The Science of Pigment Agglomeration
Opacity in plastic pipes relies heavily on the uniform distribution of opacifying agents. Manufacturers primarily use carbon black or titanium dioxide. During the compounding phase, these microscopic pigment particles have a natural tendency to clump together due to strong van der Waals forces. If the mixing process fails to break apart these clusters, the particles form larger agglomerates within the polymer matrix.
Pigment agglomeration directly compromises the pipe's ability to block light. When pigments clump together, they leave surrounding areas of the polymer matrix completely unpigmented. These microscopic windows act as clear pathways. They allow light to pass directly through the pipe wall. Even if the total volume of pigment added to the resin is correct, poor dispersion results in localized opacity failures and unpredictable light transmission rates.
Compounding vs. Extrusion Failures
Diagnosing dispersion issues requires distinguishing between compounding defects and extrusion failures. Compounding issues typically originate from poor masterbatch quality provided by the supplier. If the masterbatch contains pre-existing agglomerates or utilizes a carrier resin incompatible with the base polymer, achieving uniform dispersion during final production becomes nearly impossible.
Extrusion failures occur when the manufacturing process itself lacks the necessary mechanical force to distribute the pigment. Inadequate mixing shear inside the extruder barrel prevents the breakdown of pigment clusters. Incorrect screw design, worn mixing elements, or improper temperature profiles reduce the shear stress applied to the melt. This leads to poor dispersion even when using high-quality masterbatch.
Root Cause 2: Uneven Wall Thickness and Extrusion Instability
Die Alignment and Extrusion Pressure Fluctuations
Consistent wall thickness acts as a primary defense against light transmission. Unstable extrusion pressure or improper die centering frequently creates eccentric pipe walls. One side of the pipe becomes significantly thinner than the other. Pressure surges caused by inconsistent feeding, melt temperature variations, or screen pack blockages disrupt the steady flow of polymer through the die. This results in dimensional instability.
Uneven wall thickness causes a cascading series of product failures. The thin sections of the eccentric pipe fail opacity tests because there is less physical material to absorb or reflect incoming light. Simultaneously, these thin sections compromise the pipe's internal pressure resistance and overall tensile strength. They create localized weak points highly susceptible to bursting under operational stress.
The Relationship Between Minimum Wall Thickness and Light Transmission
Light transmission scales inversely with wall thickness. As the physical barrier of the polymer matrix decreases, the probability of photons passing through the material increases exponentially. Standard opacity testing often targets the thinnest section of the pipe. This area represents the path of least resistance for light and the highest risk for failure.
Manufacturers often face a difficult trade-off when addressing this issue. Over-thickening the pipe walls across the entire circumference easily passes opacity tests and compensates for minor eccentricity. However, this brute-force approach significantly increases raw resin consumption. It drives up production costs and ultimately reduces the profitability of the manufacturing operation. Precision control over die alignment remains the only sustainable solution.
Root Cause 3: Process Variations and Material Deterioration Risks
Porosity, Inclusions, and High Crystallinity
Internal material defects fundamentally alter how light interacts with the polymer. Moisture trapped in the raw resin or improper degassing during extrusion leads to micro-porosity within the pipe wall. These microscopic internal voids scatter and transmit light unpredictably. They cause opacity failures even in well-pigmented materials. Furthermore, these voids act as localized stress concentrators. They accelerate mechanical failure and physical deterioration under load.
Variations in polymer crystallinity also affect optical properties. In semi-crystalline polymers like PE, the cooling rate directly dictates the crystalline structure. Rapid, uneven cooling creates regions of varying density and crystallinity. These subtle structural differences alter the refractive index of the material. They change how light penetrates the pipe and potentially push a borderline batch over the 0.2% transmission limit.
Temperature Fluctuations During the Extrusion Cycle
Maintaining a stable thermal profile across the extruder barrel is mandatory for optical consistency. Inconsistent temperatures degrade the polymer chains and compromise the integrity of the additives. Excessive heat burns pigments or causes thermal degradation of the base resin. This leads to localized discoloration and opacity failures.
Temperatures that are too low prevent the polymer from fully melting. This results in un-melted inclusions and poor fusion. These thermal inconsistencies create physical anomalies within the pipe wall that disrupt light absorption. They ensure the final product fails rigorous ISO 7686 testing protocols.
The ISO 7686 Opacity Test Protocol: Step-by-Step Execution
Specimen Preparation and Sectioning
Accurate opacity testing begins with precise specimen preparation. Technicians must cut representative test pieces from the extruded pipe or fitting without inducing secondary defects. Using dull cutting tools or excessive cutting speeds generates localized heat. This causes structural deformation, micro-cracking, or surface glazing. These preparation-induced artifacts artificially alter light transmission readings.
ISO 7686 dictates specific sample geometry requirements based on the nominal diameter of the pipe. The test specimens must be large enough to cover the aperture of the testing equipment fully. This ensures no ambient light bypasses the sample edges. Proper sectioning ensures the sample accurately represents the structural and optical reality of the production batch.
Luminous Flux Measurement and Calibration
The core of the ISO 7686 protocol involves measuring luminous flux. The testing equipment first measures the initial incident light flux emitted by the calibrated light source without any sample in place. Next, the specimen is inserted. The sensor measures the transmitted light flux that successfully passes through the pipe wall.
Eliminating ambient light interference is an absolute requirement during this phase. The testing chamber must be completely light-tight. Any external light reaching the photoelectric sensor artificially inflates the transmission reading. This results in false failures and unnecessary batch rejections. Routine calibration using verified reference materials ensures the sensor maintains absolute accuracy over time.
Determining Compliance: The 0.2% Transmission Threshold
Determining compliance relies on a straightforward calculation methodology. The percentage of light transmission is calculated by dividing the transmitted light flux by the initial incident light flux and multiplying by 100. This calculation provides the definitive metric for quality clearance.
The standard industry threshold for absolute quality clearance is typically ≤ 0.2% transmission. If the calculated percentage falls at or below this limit, the pipe possesses sufficient opacity to resist UV degradation and prevent internal biological growth. Readings above 0.2% mandate immediate batch quarantine and a thorough investigation into the extrusion process parameters.

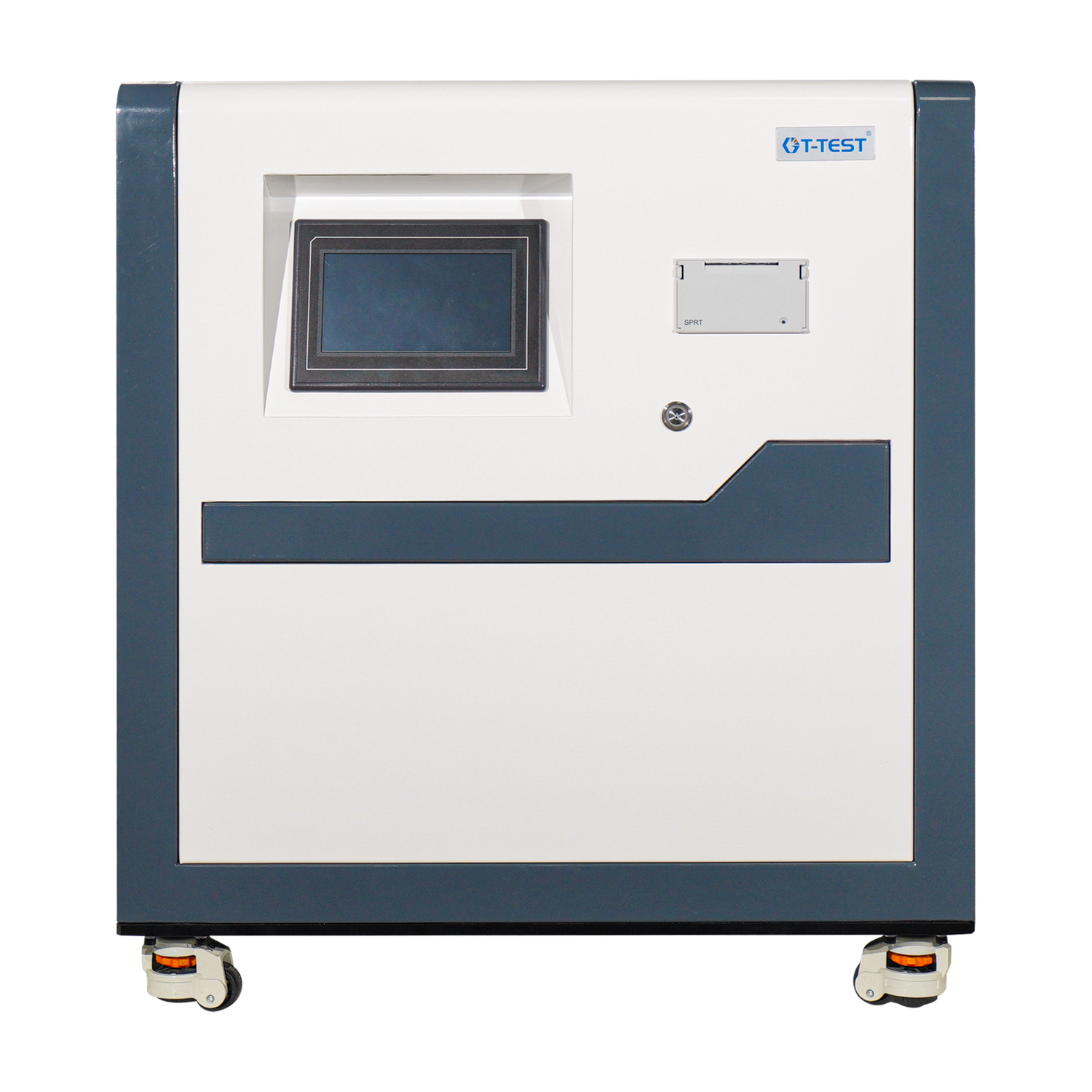

How to Evaluate an Opacity Tester for Pipes and Fittings
Essential Technical Specifications for ISO 7686 Compliance
Selecting the correct measurement equipment is critical for maintaining production standards. A compliant testing unit must feature precise light source wavelengths that match ISO 7686 specifications. The system requires highly sensitive photoelectric sensors capable of detecting minute fractions of light transmission accurately. The testing chamber must be robustly constructed to remain entirely light-tight under continuous industrial use.
Sample size accommodation is another critical specification. The equipment must possess the physical capacity and adjustable fixtures necessary to test various nominal pipe diameters and wall thicknesses. If the fixtures cannot secure the sample flush against the aperture, light leakage occurs. This renders the test results invalid.
Feature-to-Outcome Mapping: Accuracy vs. Throughput
Manufacturers must evaluate the trade-offs between different tiers of testing equipment based on their specific production environments.
Equipment Type | Primary Advantage | Operational Trade-off | Best Use Case |
|---|
Lab-Grade Units | Maximum sensor sensitivity and extreme precision. | Slower testing cycles; requires controlled environments. | R&D, masterbatch qualification, and final audit compliance. |
At-Line Units | Rapid throughput; built for harsh, dusty environments. | Slightly lower absolute precision compared to lab units. | Continuous production monitoring and immediate QC feedback. |
Automated sample positioning is a highly valuable feature regardless of the unit type. Automation eliminates operator-induced alignment errors. It ensures the specimen is consistently placed over the sensor aperture. This increases the repeatability of the test results.
Data Logging, Repeatability, and Calibration
Modern quality control demands robust digital integration. An effective testing unit must automatically generate compliance reports and maintain historical data tracking for audit trails. Compatibility with existing Laboratory Information Management Systems (LIMS) allows QA managers to map opacity trends against specific extrusion batches. This facilitates rapid root cause analysis.
Sensor trustworthiness relies entirely on strict calibration protocols. The equipment must support routine calibration using verified, traceable reference materials. Establishing a mandatory calibration frequency prevents sensor drift. It ensures the data logging system records accurate, defensible compliance metrics.
Implementation Risks and Mitigation in Quality Control
Integrating Opacity Testing into Existing QA Workflows
Introducing new testing protocols carries the risk of creating production bottlenecks. This happens if the opacity tester requires complex, time-consuming sample preparation. If QA technicians cannot process samples at the speed of production, untested inventory accumulates on the factory floor.
To mitigate this risk, QA managers must establish clear standard operating procedures (SOPs). These SOPs should define realistic sampling frequencies based on total production volume, pipe diameter, and historical failure rates. Streamlining the cutting and preparation process ensures testing integrates smoothly into the existing workflow without causing delays.
Operator Training and Avoiding False Positives
False failures disrupt production and waste valuable diagnostic time. These false positives are frequently caused by improper sample cutting that leaves gaps around the sensor. Ambient light leakage from an improperly closed testing chamber or dirty sensors obscured by factory dust also cause false readings.
Mandate daily sensor cleaning and fixture inspections to guarantee mechanical integrity.
Train operators on the mechanical nuances of the specific testing equipment deployed.
Implement a secondary verification step for any sample that fails the initial opacity test.
Mitigating these errors requires comprehensive, hands-on training for all QA technicians. Operators must understand how to handle the samples correctly and secure them within the testing chamber to prevent light leaks.
Conclusion
Achieving consistent pipe opacity requires bridging mechanical production and analytical verification. You must tighten extrusion process controls to eliminate pigment agglomeration, stabilize wall thickness, and prevent material degradation. Deploying highly accurate, standardized testing equipment verifies these process improvements.
When selecting an opacity tester, prioritize strict ISO 7686 compliance, proven sensor repeatability, and robust data management capabilities over superficial software features. The equipment must deliver defensible data that integrates seamlessly into your quality assurance framework.
Conduct an immediate audit of your current batch rejection rates to identify primary failure modes.
Review the specific ISO 7686 requirements applicable to your product lines.
Request technical specification sheets or live demonstrations from testing equipment manufacturers.
Establish a routine calibration schedule for all new and existing opacity testing units.
Reach out to our technical team and contact us to discuss your specific testing needs.
FAQ
Q: What is the ISO 7686 standard for plastic pipes?
A: ISO 7686 is the international standard specifying the method for determining the opacity of plastics pipes and fittings. It outlines the procedures for measuring light transmission to ensure the material provides adequate protection against UV degradation and prevents internal biological growth, typically requiring light transmission to be ≤ 0.2%.
Q: Why does uneven wall thickness cause opacity test failures?
A: Light transmission scales inversely with material thickness. If extrusion instability causes eccentric pipe walls, the thinner sections lack sufficient polymer and pigment density to block light effectively. This results in localized opacity failures during testing.
Q: How does pigment agglomeration affect pipe quality?
A: Pigment agglomeration occurs when opacifying agents clump together during compounding or extrusion. This leaves microscopic unpigmented windows in the polymer matrix that allow light to pass through. It fails opacity tests and leaves the pipe vulnerable to UV damage.
Q: Can ambient light affect opacity test results?
A: Yes. If the testing chamber is not completely light-tight or the sample does not fully cover the sensor aperture, ambient light reaches the photoelectric sensor. This artificially inflates the transmission reading, causing false failures and unnecessary batch rejections.
Q: How often should an opacity tester be calibrated?
A: Calibration frequency depends on the manufacturer's guidelines and testing volume. It is typically recommended to perform routine checks daily or weekly using verified reference materials. This prevents sensor drift and ensures continuous ISO 7686 compliance.
