Plastic piping systems like PVC, PEX, and PPR offer significant advantages in corrosion resistance and installation speed. However, their vulnerability to light transmission introduces severe biological, chemical, and structural liabilities. Even microscopic levels of light penetration trigger algae proliferation, accelerate chlorine-induced degradation, and catalyze the leaching of toxic chemicals into potable water. For pipe manufacturers and QA/QC managers, failing to quantify and block light transmission results in regulatory non-compliance, compromised water safety, and catastrophic field failures. Mitigating these risks requires moving beyond subjective visual inspections and assumed material properties. Ensuring compliance with international standards demands rigorous, quantifiable quality control using a specialized opacity tester for plastic pipes.
Biological and Chemical Risks: Light transmission through plastic pipes facilitates Photosynthetically Active Radiation (PAR) that drives algae growth, while UV exposure breaks down polymer chains, accelerating chemical leaching and chlorine corrosion.
Strict Compliance Thresholds: International standards (such as ISO 7686) mandate that light transmission in potable water pipes must not exceed 0.2%, requiring highly sensitive photometric testing.
Equipment Evaluation: Selecting the right opacity tester for plastic pipes requires evaluating photometric accuracy, sample accommodation (diameter and thickness), and automated calibration capabilities.
QA/QC Integration: Implementing standardized opacity testing reduces the risk of batch rejections, liability from premature pipe failures, and costly product recalls.
The Science of Light Transmission and Pipe Vulnerability
Photosynthetically Active Radiation (PAR) and Algae Proliferation
Light wavelengths between 400 and 700 nanometers penetrate semi-translucent plastics with surprising ease. This specific spectrum is known as Photosynthetically Active Radiation. When this light reaches the interior of a water pipe, it creates an environment ripe for biological activity. Algae and biofilm growth thrive in nutrient-carrying water systems when exposed to PAR. Even trace amounts of minerals in municipal water supply the necessary nutrients for these organisms. In field applications, we frequently see clear or poorly pigmented pipes develop thick green or brown sludge within weeks of installation if exposed to ambient sunlight or bright facility lighting.
The biological mechanics are straightforward but highly destructive. Microorganisms attach to the inner walls of the pipe, forming a resilient biofilm. This growth causes secondary water quality impacts that are difficult to reverse. Consumers often notice distinct changes in taste and odor. More critically, these biofilms harbor pathogenic bacteria, shielding them from standard water disinfectants and compromising the entire potable water network. Flushing the lines rarely removes established biofilms, requiring aggressive chemical shock treatments that further degrade the pipe material.
UV Degradation and Molecular Chain Breakdown
Intense UV radiation attacks the polymer backbone of PVC, PEX, and PPR pipes. Sunlight and artificial UV sources carry enough energy to sever the carbon-to-carbon bonds within the plastic matrix. This process is known as molecular chain scission. As the polymer chains break down, the material loses its inherent flexibility and tensile strength. We observe this constantly on job sites where pipes are left unistalled in the yard for too long.
Physical manifestations of this degradation appear rapidly in unprotected pipes. Operators will observe embrittlement and micro-cracking along the pipe surface. Color fading serves as an early visual indicator of structural compromise. Ultimately, this breakdown leads to a severe loss of hydrostatic strength, causing the pipe to rupture under normal operating pressures. A pipe that should last fifty years can fail in five if UV exposure compromises its structural integrity before it even goes into the ground.
The Synergistic Effect of UV, Chlorine Corrosion, and Chemical Leaching
Light penetration and molecular chain scission weaken the polymer structure significantly. This makes the material highly susceptible to chlorine corrosion from municipal water disinfectants. When the internal surface of a pipe is compromised by light, hypochlorous acid attacks the weakened bonds much faster. This synergistic degradation drastically reduces the expected lifespan of the piping system. The inner wall becomes chalky and begins to flake off into the water stream.
The chemical mechanics of leaching are directly tied to this degradation. UV-damaged inner pipe surfaces release volatile organic compounds (VOCs), plasticizers, and stabilizers into the drinking water. Contaminants like vinyl chloride monomers, MTBE, and ETBE leach at accelerated rates when the polymer matrix is compromised. Material-specific risks vary across different plastics. Flexible PEX, rigid PVC, and PPR exhibit different leaching rates under combined light and chlorine exposure due to their distinct chemical formulations. PEX, for instance, relies heavily on anti-oxidant packages that deplete rapidly under UV stress.
Thermal degradation further amplifies these risks. Light-weakened pipes fail much faster when exposed to high heat or hot water systems. The elevated temperatures accelerate the chemical reactions, driving both chlorine corrosion and toxic leaching to dangerous levels. In commercial hot water recirculation loops, this combination is a known pipe killer.
Regulatory Standards and Success Criteria for Pipe Opacity
Defining "Opaque" in Industrial Terms
Modern quality control requires moving away from subjective visual assessments. Holding a pipe up to a light bulb is not a valid testing method. Industrial opacity is defined by quantifiable light transmission percentages. Manufacturers must rely on precise photometric measurements to guarantee product safety. You cannot manage what you cannot measure, and visual checks fail to detect the 0.5% transmission levels that still cause algae growth.
The baseline success criteria are universally strict. Achieving ≤0.2% light transmission is necessary to effectively halt photosynthetic activity. This threshold also minimizes UV-catalyzed chemical leaching. Any transmission above this limit leaves the piping system vulnerable to the biological and chemical failures detailed earlier. Hitting this number consistently requires tight control over extrusion parameters and material blending.
Key International Standards
ISO 7686 serves as the primary global standard for determining the opacity of plastics pipes and fittings. It outlines the specific photometric methodology required to measure light transmission accurately. Compliance with ISO 7686 is often a mandatory prerequisite for selling pipes in international markets. The standard dictates the exact geometry of the light source, the sensor, and the sample placement.
Regional and material-specific standards also govern light transmission. Various ASTM and EN standards dictate opacity requirements for potable water infrastructure and water storage systems. Understanding these overlapping requirements is necessary for compliance. Manufacturers bidding on municipal, sanitary, or large-scale commercial contracts must provide certified testing data to prove their products meet these stringent opacity thresholds. Without this data, inspectors will reject the material on site.
Evaluating an Opacity Tester for Plastic Pipes
Core Mechanisms of Opacity Testing

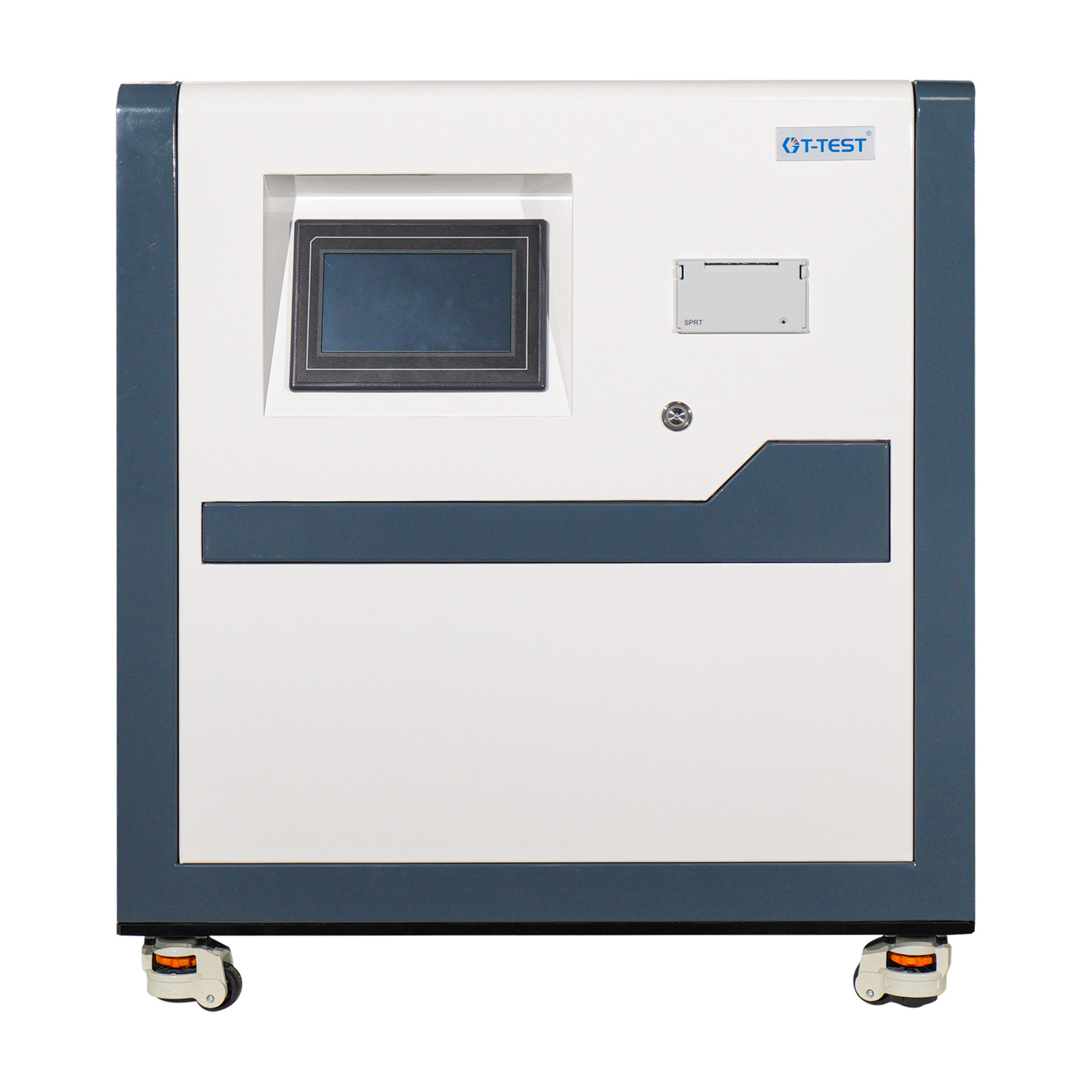

Photometric testing relies on highly controlled environments. An opacity testing unit utilizes a controlled light source, typically a specific wattage halogen or LED, paired with a high-sensitivity photoelectric sensor. The system is enclosed to prevent ambient light from skewing the results. The internal chamber must be completely light-tight.
The methodology involves measuring incident light flux versus transmitted light flux. The machine calculates the exact percentage of light that successfully passes through a curved pipe specimen. This requires precise alignment of the light source, the sample, and the sensor to ensure accurate readings. Any misalignment will cause light scattering and result in a false pass.
Critical Features to Evaluate (Features-to-Outcomes)
Selecting the right equipment dictates the reliability of your quality control process. Sensor sensitivity and range are paramount. The equipment must accurately measure transmission levels down to 0.01% to ensure compliance with the strict 0.2% ISO 7686 threshold. Inferior sensors produce false passes, leading to defective products entering the market.
Sample geometry accommodation is another major factor. The testing chamber must securely hold various pipe diameters, wall thicknesses, and multi-layered fittings without light leakage. Automated data acquisition streamlines the testing process. Software integration allows for real-time calculation, batch reporting, and completely eliminates operator calculation errors.
Feature | Operational Requirement | Quality Control Outcome |
|---|
Sensor Sensitivity | Resolution down to 0.01% transmission | Guarantees strict compliance with ISO 7686 thresholds. |
Sample Geometry | Adjustable clamps for curved surfaces | Prevents ambient light bleed around thick or wide pipes. |
Data Acquisition | Automated software integration | Eliminates manual math errors and generates audit-ready reports. |
Light Source Stability | Constant voltage regulation | Prevents fluctuating baseline readings during long test batches. |
Scalability and Calibration
Evaluating the frequency and complexity of equipment calibration is necessary for long-term operational efficiency. High-quality testers require less frequent calibration while maintaining high accuracy. Assessing the lifespan of the light source helps predict maintenance schedules. Furthermore, the availability of standardized calibration lenses or filters ensures that the machine can be verified quickly before major production runs.
Turn on the machine and allow the light source to warm up for the manufacturer-specified duration to ensure thermal stability.
Insert the zero-transmission calibration block to verify the sensor reads absolute zero ambient light.
Insert the known-transmission reference lens (e.g., a 0.5% transmission filter) and verify the software reads the correct value.
Log the calibration results in the QA software before beginning the daily batch testing.
Pigmentation and Carbon Black Dispersion
Manufacturers use carbon black, titanium dioxide, and specialized UV-absorbers to block light. These additives absorb or reflect UV and visible light, protecting the polymer matrix. Proper dispersion of these pigments is necessary for uniform opacity. Clumping of carbon black leaves clear windows in the pipe wall where light easily penetrates.
However, there is a conceptual trade-off in material formulation. High pigment loading increases opacity and UV resistance but negatively impacts the physical properties of the pipe. Excessive additives reduce the tensile strength, flexibility, and weldability of the polymer matrix. Testing allows manufacturers to find the exact minimum pigment loading required to pass opacity standards without compromising structural integrity. Over-pigmenting wastes money and creates brittle pipes.
Co-extrusion and Multi-layer Pipe Challenges
Multi-layer pipes present unique manufacturing challenges. Products like PEX-AL-PEX, PPR with fiberglass reinforcement, or pipes with specialized UV-blocking outer layers rely on complex co-extrusion processes. An opacity testing machine validates the structural integrity and uniform thickness of the opaque barrier layer during this process.
Verifying barrier layer placement via optical testing prevents catastrophic field failures. If the opaque layer is too thin or uneven, light penetrates the pipe. This testing prevents delamination and oxygen-permeation failures by ensuring the barrier layer meets exact specifications across the entire production batch. We often see multi-layer pipes fail testing because the extrusion die was slightly off-center, causing one side of the pipe to have a dangerously thin barrier layer.
Implementation Risks and QA/QC Mitigation
Integration into Existing Workflows
Establishing robust batch testing protocols is necessary. QA managers must determine the statistical frequency of sampling required per extrusion run to guarantee compliance. Testing too infrequently allows defective pipes to slip through, while over-testing slows down production. A standard approach is testing one sample per line every four hours.
Preparation of test specimens directly impacts accuracy. Technicians must ensure clean, precise cuts. Jagged edges or debris cause ambient light bleed and scattering during sensor readings, resulting in false failures. We recommend using a dedicated pipe lathe or precision saw for sample prep rather than hand tools.
Mitigating Adoption Risks
Operator error is a common risk in laboratory settings. Utilizing automated opacity testers with enclosed, light-tight testing chambers removes ambient light interference. This hardware design minimizes the chance of human error affecting the results. If the chamber door is not fully sealed, the machine should automatically abort the test.
False positives and negatives disrupt production schedules. Establishing strict environmental controls in the testing lab ensures repeatable sensor performance. Maintaining consistent temperature and humidity protects the sensitive photoelectric sensors from drift. Dust control is also necessary, as particulate matter settling on the sensor lens will skew transmission readings downward.
Conclusion
Audit your current QA/QC light transmission testing protocols against ISO 7686 requirements to identify compliance gaps.
Evaluate your existing laboratory equipment for sensor sensitivity, sample clamping versatility, and automated reporting capabilities.
Request a technical demonstration of a modern opacity testing unit using your specific multi-layer or heavily pigmented pipe samples.
Reach out to our technical team to contact us for guidance on integrating automated testing into your extrusion lines.
FAQ
Q: What is the acceptable light transmission limit for plastic water pipes?
A: Under standards like ISO 7686, plastic pipes intended for potable water must exhibit a light transmission of 0.2% or less to prevent algae growth and minimize UV degradation.
Q: How does an opacity tester for plastic pipes work?
A: It places a pipe sample between a controlled, standardized light source and a highly sensitive photoelectric sensor to measure the exact percentage of light flux that passes through the material.
Q: Why do transparent or translucent pipes grow algae?
A: They allow Photosynthetically Active Radiation (PAR) to reach the water inside. If the water contains trace nutrients, this light triggers rapid algae and biofilm proliferation.
Q: Can UV degradation in plastic pipes be reversed?
A: No. UV exposure causes permanent molecular chain scission in plastics like PVC and PEX, leading to irreversible embrittlement, loss of pressure ratings, and accelerated chemical leaching.
Q: Do multi-layer pipes require opacity testing?
A: Yes. Even if a multi-layer pipe includes an opaque barrier, opacity testing is required to verify that the layer is uniformly extruded and free of micro-defects that could allow light penetration.
Q: How does light transmission affect chemical leaching in plastic pipes?
A: Light penetration, particularly UV radiation, breaks down the internal chemical bonds of the polymer. This degradation increases the rate at which chemical additives and stabilizers leach into the drinking water supply.
