Sunlight penetration creates a massive operational hazard in plastic water piping systems. When visible light breaches the pipe wall, it triggers photosynthesis inside the water column. This biological activity breeds algae, contaminates potable water supplies, and accelerates the chemical degradation of the polymer structure. Blocking this light is a strict safety mandate for any pipe manufacturer.
Quality assurance laboratories face heavy pressure to meet international standards like ISO 7686. They handle high-throughput testing demands daily. Relying on manual or outdated opacity testing methods introduces human error, inconsistent calibration, and severe production bottlenecks. Labs need a verifiable, mechanized approach to maintain compliance without slowing down the extrusion lines.

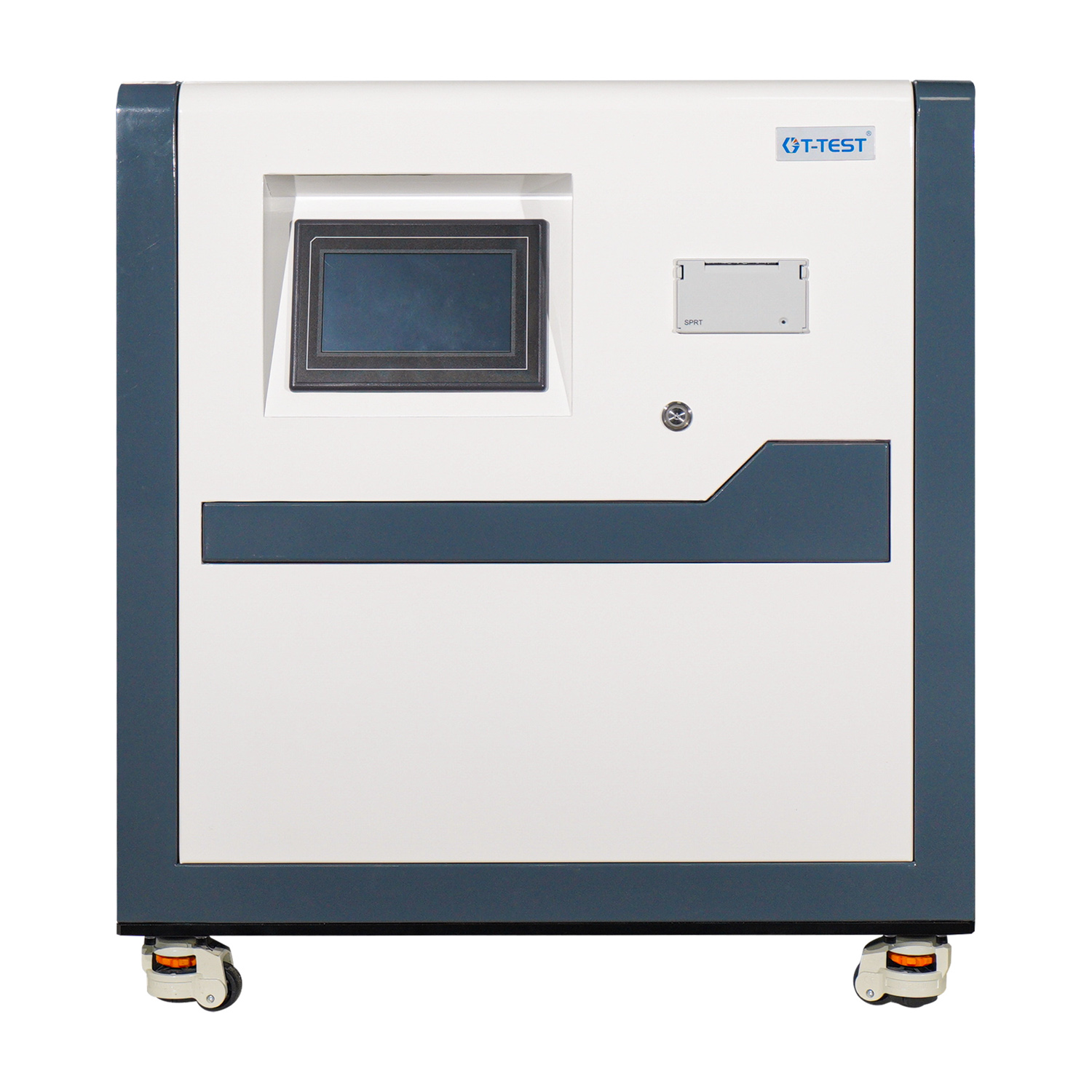

Implementing an automatic pipe opacity tester solves this problem directly. This equipment replaces subjective manual measurements with precise optical sensors. It guarantees verifiable compliance and streamlines the impermeability determination of plastic pipes and fittings for modern manufacturing facilities.
Regulatory Necessity: Pipe opacity testing is a mandatory QA/QC process to confirm plastic pipes block sufficient visible light, preventing internal algae proliferation.
Standardization: Reliable opacity testers must strictly comply with ISO 7686, utilizing precise light wavelengths and integrating spheres to measure light transmittance accurately.
The Automation Advantage: Upgrading to an automatic pipe opacity tester removes manual calculation errors, provides digital audit trails, and accelerates testing cycles for various pipe diameters.
Procurement Criteria: Selecting the right equipment requires evaluating sensor stability, maximum pipe diameter capacity, software reporting capabilities, and long-term calibration requirements.
The Fundamentals: What Is a Pipe Opacity Tester?
Core Function and Purpose in QA/QC
The instrument serves one specific function on the laboratory floor. It determines the impermeability of plastic pipes and fittings to visible light. Quality control technicians use this data to certify that extruded batches meet safety standards before shipping. The machine fires a controlled, standardized light beam through a section of the pipe wall. It then measures the exact amount of light that escapes through the opposite side.
The output metric dictates the pass or fail status of the product. Results display as a percentage of light transmittance, commonly called the opacity percentage. A lower percentage means the pipe blocks more light. This numerical value provides hard evidence that the pipe formulation contains the correct ratio of opacifiers.
A standard testing sequence involves several distinct phases:
Establishing the baseline luminous flux without a specimen in the chamber.
Securing the prepared pipe segment against the integrating sphere aperture.
Measuring the transmitted luminous flux passing through the polymer matrix.
Calculating the ratio between the transmitted light and the baseline light.
Averaging the results across four distinct segments of the same pipe sample.
The Material Science and Environmental Context
Opacity requirements change depending on the polymer type and its intended application. PVC, PE, and PPR pipes dominate the potable water and agricultural irrigation sectors. These installations frequently expose the pipes to direct sunlight or bright ambient light. If the extrusion team fails to mix sufficient carbon black or titanium dioxide into the raw material, light easily penetrates the finished pipe.
Light transmission directly correlates with environmental degradation inside the system. When photons enter a water-filled pipe, algae spores begin to multiply. This biological fouling ruins water quality, creating severe taste and odor complaints from end-users. The internal algae buildup also physically degrades the pipe's interior surface. It increases friction, reduces flow efficiency, and forces utility companies to replace the infrastructure prematurely.
Polymer Type | Common Application | Typical Opacifier Used | Vulnerability to Light Penetration |
|---|
UPVC | Potable Water Mains | Titanium Dioxide | High if improperly formulated |
HDPE | Agricultural Irrigation | Carbon Black | Low when carbon black exceeds 2% |
PPR | Indoor Plumbing | Color Pigments | Moderate, depends on wall thickness |
How Does an Automatic Pipe Opacity Tester Work?
The Optical and Physical Assembly
The physical hardware of an automatic pipe opacity tester requires extreme precision. The system starts with a stabilized light source. Manufacturers typically use a color-temperature controlled halogen lamp or a highly specific LED array. A collimating lens system catches this light and focuses it into a perfectly parallel beam. The specimen holder locks the sample in place. The integrating sphere then captures the transmitted light using highly sensitive silicon photodiodes.
The alignment path dictates the accuracy of the entire machine. The light beam must strike the specimen wall at an exact perpendicular angle. It then travels directly into the entrance port of the integrating sphere. Any misalignment scatters the light outside the sensor's range. This scattering creates false transmittance readings and ruins the test integrity.
Specimen Preparation and Clamping Protocols
Technicians must extract specimens following strict laboratory guidelines. You cannot just throw a random chunk of pipe into the machine. You cut the pipe sample into four distinct, representative segments. You take these test pieces from equally spaced intervals around the pipe's circumference. This preparation method ensures the final average accounts for any variations in wall thickness caused by the extrusion die.
The clamping mechanics prevent ambient light from ruining the data. The sample must sit completely flat against the testing aperture. The clamping system applies uniform, mechanical pressure to seal the edges. If room light bypasses the specimen and enters the sphere, the sensor registers a falsely high transmittance value, failing a perfectly good pipe.
Manual vs. Automatic Testing Workflows
Legacy manual systems create massive headaches for lab managers. Technicians must physically position four different samples one at a time. Operators manually adjust the light intensity dial and write down the voltage readings. They then punch these numbers into a calculator. This workflow is slow, tedious, and guarantees human error during a busy shift.
Modern automatic systems eliminate these bottlenecks entirely. A motorized carriage moves the specimen across all four testing points without any human intervention. The system runs continuous data logging, executes auto-calibration routines, and calculates the final percentage instantly via integrated microprocessors. You load the sample, press start, and walk away.
Workflow Element | Manual Opacity Tester | Automatic Pipe Opacity Tester |
|---|
Specimen Positioning | Manual adjustment for each segment | Motorized carriage tests all points |
Calibration | Manual zeroing via dials | Automated self-calibration routines |
Data Calculation | External calculator required | Instant microprocessor calculation |
Throughput Speed | Slow, creates lab bottlenecks | High-speed, continuous testing |
ISO 7686 strictly defines the mathematical evaluation. The machine first measures the incident luminous flux without the specimen in the chamber. The software records this baseline value as F1. The automated carriage then moves the specimen into position. The sensor measures the transmitted luminous flux passing through the plastic. The software records this second value as F2.
The microprocessor translates this raw sensor voltage ratio into a standardized transmittance percentage. It uses the formula (F2 / F1) x 100. The machine automatically calculates the arithmetic mean of the four tested segments. This final number represents the pipe's true opacity.
Automated systems instantly flag pass or fail criteria based on pre-programmed thresholds. Most standards mandate a 0.2% maximum transmission limit. If the calculated mean hits 0.21%, the software immediately flashes a failure alert, preventing that batch from leaving the factory.
Critical Testing Standards and Compliance
Demystifying ISO 7686
ISO 7686 stands as the definitive global standard for determining the opacity of plastics pipes and fittings. It outlines rigorous hardware requirements that testing equipment must meet. You cannot achieve international certification for your piping products without proving compliance to this specific standard.
The standard dictates precise technical specifications for the optical assembly. The light source must output a specific spectral distribution. The sensor's spectral sensitivity must match the human eye, following the CIE photopic curve exactly. ISO 7686 also enforces strict protocols for specimen preparation. Technicians must follow exact procedures for cutting, cleaning, and positioning the plastic segments.
Material-Specific and Regional Nuances
Opacity requirements shift depending on the installation environment. Above-ground agricultural pipes bake in direct sunlight all day. They require much stricter opacity limits than buried municipal water mains. Different material types also exhibit different baseline optical properties. UPVC behaves differently under the collimated beam than high-density polyethylene.
Equipment flexibility keeps a laboratory relevant in global markets. A high-quality tester allows the lab manager to customize test parameters. This flexibility lets manufacturers meet secondary regional standards. Whether you are testing against specific ASTM guidelines, EN standards, or national variations in the European market, adaptable software keeps your lab compliant.
Evaluation Dimensions: Choosing the Right Automatic Pipe Opacity Tester
Sensor Accuracy, Light Source Stability, and Calibration Standards
The integrating sphere's quality directly controls your test repeatability. You need zero-drift technology in the optical sensor to maintain accuracy over a twelve-hour testing shift. If the sensor drifts due to heat buildup, your baseline F1 value corrupts. Every subsequent F2 measurement becomes invalid, forcing you to retest the entire batch.
Ambient light shielding separates professional equipment from cheap alternatives. The best testers feature fully enclosed, light-tight test chambers. This heavy-duty design blocks background noise from overhead laboratory lighting. Manufacturers must also provide pre-calibrated reference standards. You use these neutral density filters or calibration glass blocks for your routine daily verification.
Specimen Capacity and Clamping Mechanisms (Scalability)
You must evaluate the physical limitations of the tester before installation. Every machine has a hard limit regarding maximum pipe diameter, wall thickness, and geometry. Testing a straight section of 20mm residential pipe is easy. Testing a complex, angled 400mm municipal fitting requires serious hardware.
Look closely at the flexibility of the specimen carriage. It should accommodate both small fittings and massive water mains without requiring you to bolt on complex, proprietary adapters. Swapping adapters wastes time. A versatile clamping mechanism keeps the testing queue moving smoothly.
Software, Industrial PC Interfaces, and Audit Trails
Treat the software as a critical compliance tool, not just a digital display. Modern testers run on industrial PC interfaces built for robust data management. These systems handle automated report generation and lock down historical data storage.
Data integrity protects your company during an audit. You need user access controls that prevent operators from tampering with failed results. Export capabilities matter just as much. The system must seamlessly push results to CSV, PDF, or directly into your Laboratory Information Management System (LIMS).
Implementation Realities and Operational Efficiency
Operational Efficiency and Automation Benefits
Moving to a fully automated, digital opacity tester transforms laboratory efficiency. The primary benefit is massive labor reduction. A technician loads the four pipe segments, hits start, and walks away to perform burst testing or melt flow analysis. The machine handles the tedious optical work.
Automation destroys false-reject and false-accept rates. Mechanized testing removes the variability of a tired technician manually positioning a sample. This mechanical reliability stops you from scrapping good pipe and prevents you from shipping non-compliant pipe that could trigger a massive recall.
Calibration, Reference Verification, and Maintenance Risks
You must manage the maintenance realities of optical equipment. Sensor degradation and light source aging happen to every machine. Halogen lamps burn out or shift their spectral output. You must replace them before they fall out of ISO standard compliance.
Standard calibration blocks keep the machine honest. Your lab must establish a rigid schedule for daily verification. You also need formal manufacturer or third-party calibration annually. If you fail to maintain these calibration records, you will fail your next external ISO audit.
Training Requirements and Lab Integration
You must manage the learning curve for your lab technicians. Automated systems simplify the actual test, but technicians still need to master specimen preparation and software navigation. Bad sample cutting still ruins the data, regardless of how advanced the machine is.
Prioritize vendors that send engineers for comprehensive on-site onboarding. Intuitive touchscreen interfaces help older technicians adapt faster. You also need responsive technical support. When the machine throws an error code during a massive production run, you need a vendor who answers the phone immediately.
Conclusion
An automatic pipe opacity tester acts as the ultimate compliance safeguard for plastic pipe manufacturers. It provides the exact optical data required to meet ISO 7686 standards and prevents algae contamination in end-user water systems. Upgrading to an automated platform guarantees precise, repeatable data while destroying manual testing bottlenecks in your laboratory.
Take the following steps to upgrade your testing capabilities:
Audit your current daily testing volume to determine your throughput requirements.
Measure the maximum outside diameter of the largest pipe your facility extrudes.
Compile a list of all regional and international standards your products must meet.
Contact equipment manufacturers to request technical specification sheets and live demonstration videos.
FAQ
Q: What is the acceptable opacity percentage for plastic water pipes under ISO 7686?
A: Under ISO 7686, the pipe must transmit less than or equal to 0.2% of visible light. Specific product standards or regional regulations may dictate stricter thresholds depending on the intended installation environment.
Q: How does ISO 7686 define pipe opacity testing?
A: It defines a method of measuring the percentage of luminous flux transmitted through a pipe wall. The standard requires a specific light source, an optical collimator, and an integrating sphere to capture the transmitted light.
Q: Can an automatic pipe opacity tester measure fittings as well as pipes?
A: Yes. Advanced testers utilize adaptable clamping mechanisms and specialized specimen carriages. These components hold irregularly shaped fittings securely against the aperture, ensuring no ambient light leaks during the measurement.
Q: How are specimens prepared for an opacity test?
A: Technicians cut four test pieces from the pipe sample, spacing them uniformly around the circumference. They clean these segments thoroughly to remove scratches or cutting debris that could scatter the light beam.
Q: How often does an automatic pipe opacity tester need to be calibrated?
A: Operators must perform daily verification using a manufacturer-supplied neutral density filter before starting a test run. A certified technician must perform a formal, comprehensive calibration annually to maintain ISO compliance.
