PE PVC Pipe Wall Thickness Measurement Device with CE

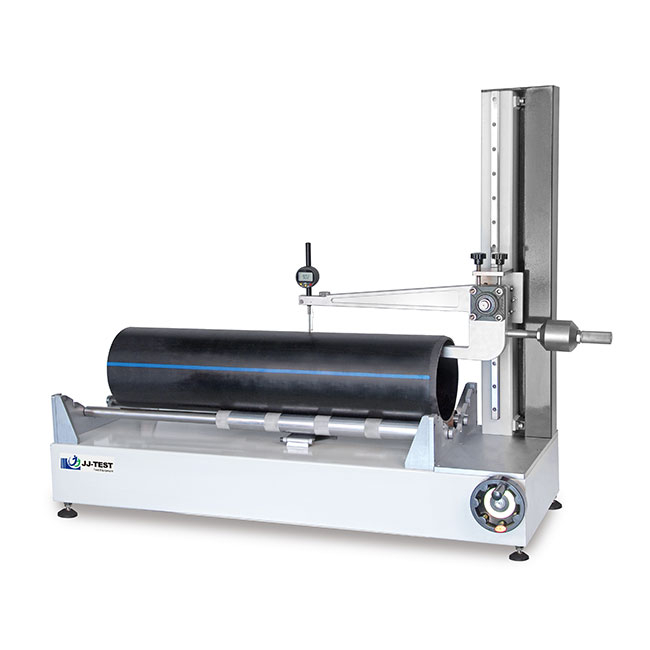

This device is mainly designed to measure the wall thickness of plastics pipes.
Availability:
  • GT-PWM-630
  • GT-TEST
  • 9024800000

Product Description

Application

This device is mainly designed to measure the wall thickness of plastics pipes.

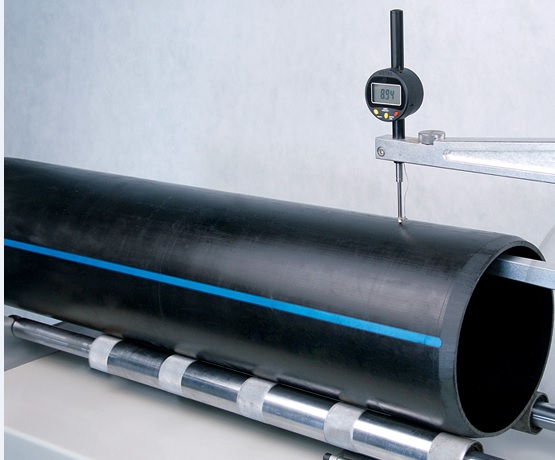

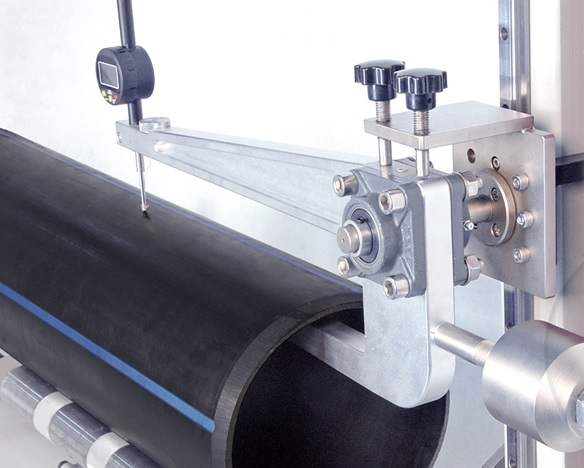

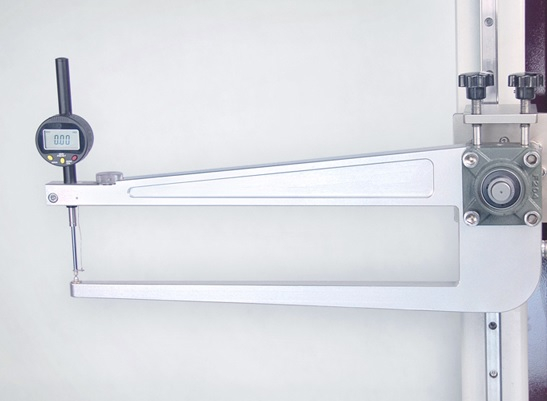

The wall thickness gauge enables the measuring of the wall thickness of all type of plastic pipes with high accuracy. The measuring is conducted with a high-precision gauge mounted on the upper arm of the retainer. In addition, a variable counter-weight enables adjustment of the compacting pressure of the lower arm.



Technical Parameter

Ø  Wall thickness range: 0 to 35mm

Ø  Resolution: 0.01mm

Ø  Pipe diameter range: Φ110mm toΦ630mm

Ø  Max. measuring depth: 400mm

123
