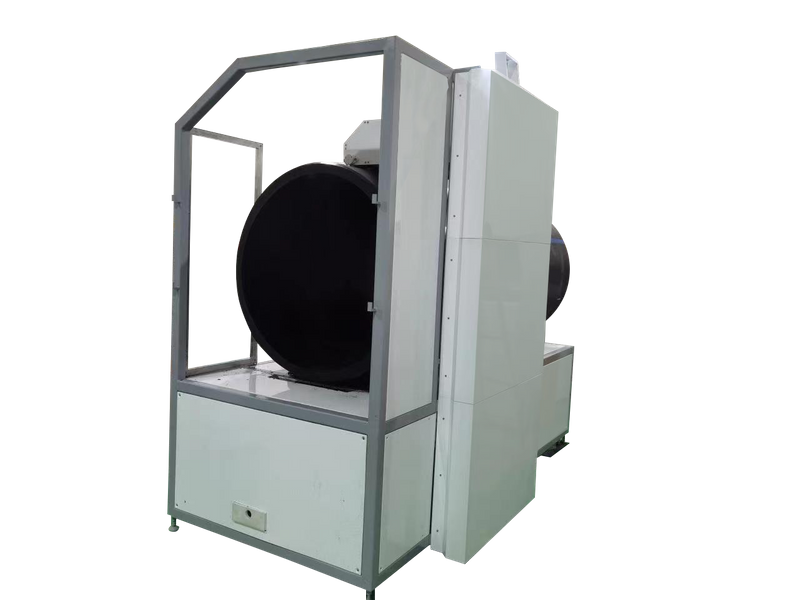

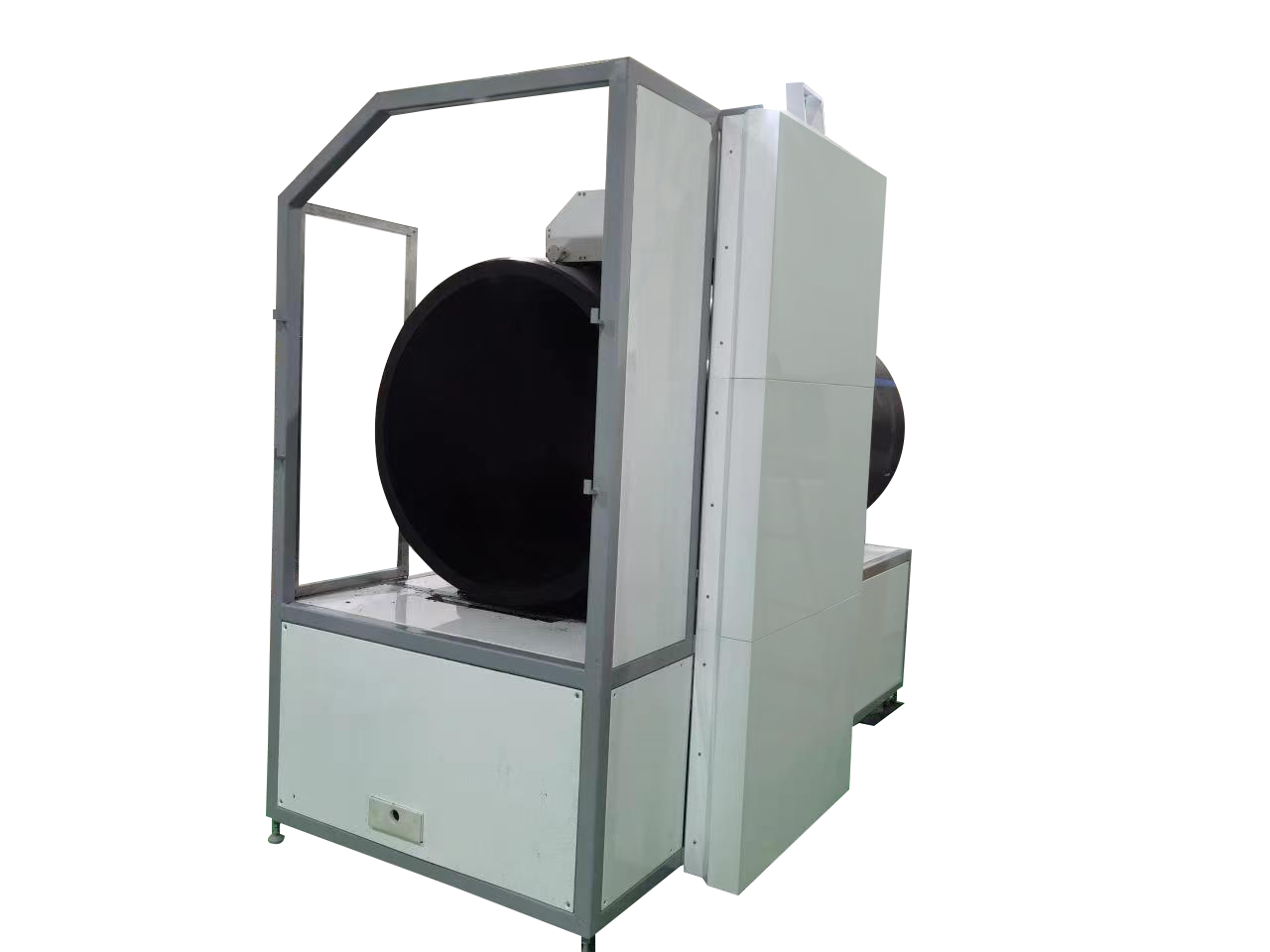

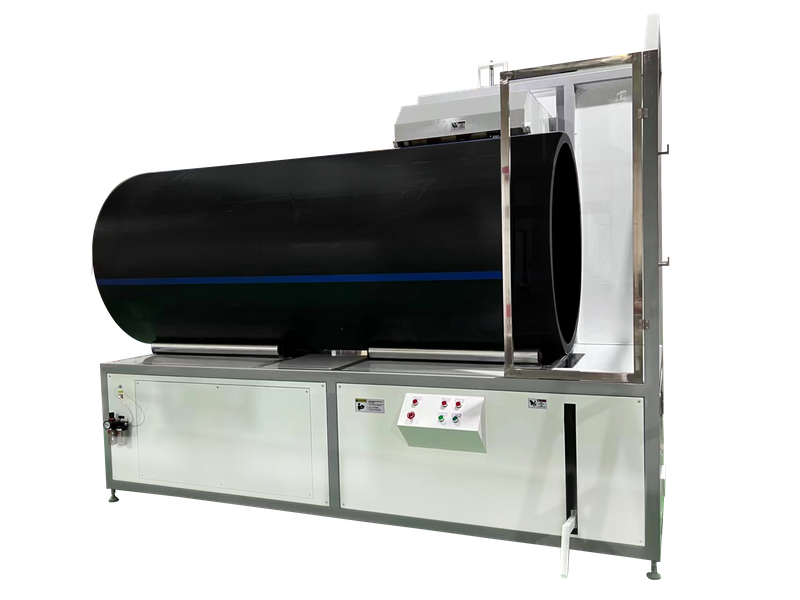

Plastic Pipe Cutting & Chamfering Machine
Standards
ISO1167
ASTM D 1598 / 1599
Application
It is mainly used for cutting and chamfering big pipes. Cooperating with pipe extrusion production line, makes it an ideal machine for pipe manufacturer, as well as for quality inspection and research institution.
Features
1. With the advantages of well performance, high automation, humanized protective devices, easy operation.
2. Up to 1200mm wide pipe application range, modular design, high rigidity, pneumatic clamp, planetary cutting method.
3. Cutting and chamfering are completed synchronously, largely increasing work efficiency and reducing working strength.
4. The rotating motor, acts only after sample well-clamped, stops while compaction released, which is a protection to the operator.
5. Electronic soft-start function provides the torque for stable start-up at low speed, which reducing the electromagnetic shock to the power supply system.
Technical Parameters
Diameter range: Φ90 to Φ630mm/1200mm
The chamfering angle: 15°
Dimension: 1580mm×1030mm×1830mm
Power: 380V 50HZ 2kW
