Excessive light penetration in plastic piping introduces severe structural and safety risks that compromise entire infrastructure projects. In potable water systems, even minimal light exposure triggers rapid algae proliferation, contaminating the water supply and clogging filtration mechanisms. In above-ground installations, ultraviolet radiation accelerates polymer degradation. This UV exposure breaks down molecular chains, leading to brittleness, micro-cracking, and catastrophic mechanical failure under pressure.
Laboratory technicians frequently confuse measuring opacity with measuring light transmittance. Opacity refers to the light blocked by the material, while transmittance refers to the light that successfully passes through. Misinterpreting these percentages routinely leads to false passes during quality control. Approving non-compliant piping results in costly material recalls, failed site inspections, and significant liability for manufacturers.
Achieving strict regulatory compliance requires moving beyond theoretical definitions and visual inspections. Quality managers must utilize a highly calibrated digital pipe opacity tester. This specialized equipment isolates and quantifies exact light transmission percentages, eliminating the guesswork associated with legacy optical methods and ensuring every pipe meets stringent international safety standards.
Key Takeaways
Inverse Metrics: Opacity and light transmittance are inversely related; a 100% opacity rating equals a 0% transmittance rating. Regulatory standards primarily measure the latter.
The 0.2% Threshold: ISO 7686 dictates a strict maximum light transmission limit of 0.2% for plastic pipes and fittings used in sensitive applications.
Equipment Imperative: Relying on legacy or analog optical equipment introduces unacceptable margins of error; modern compliance requires digital sensors with automated data logging.
Evaluation Focus: Selecting the right testing equipment hinges on sensor resolution, sample accommodation (diameter/thickness), and ambient light shielding capabilities.
Decoding the Metrics: Opacity vs. Light Transmittance
The Physics of Light Transmittance
Transmittance defines the precise percentage of incident light photons that successfully pass through a pipe wall. A reading of 0% represents total light blockage, meaning no photons breach the inner diameter. A reading of 100% represents complete transparency, akin to clear glass. In the context of plastic piping, we are dealing with values extremely close to zero, requiring highly sensitive instrumentation to detect stray photons.
Optical sensors actively measure transmittance by receiving light on the interior of the pipe sample. A controlled, uniform light source illuminates the exterior surface of the specimen. The internal sensor captures any photons that penetrate the polymer matrix. This direct measurement provides an absolute value for how much light breaches the physical barrier of the pipe, which is the exact metric regulatory bodies care about.
Understanding the physics behind this measurement is essential for laboratory personnel. When a photon strikes the surface of a high-density polyethylene (HDPE) or polyvinyl chloride (PVC) pipe, it can be reflected, absorbed, or transmitted. The goal of the extrusion process is to maximize absorption and reflection through the use of specific additives, driving the transmitted portion down to near-zero levels.
The Concept of Opacity in Rigid Plastics
Opacity represents a material's inherent resistance to light passage. It is determined by how the plastic's polymer matrix absorbs and scatters incident light. Unlike transmittance, which is a measure of what gets through, opacity is a measure of what is stopped. A perfectly opaque pipe allows zero light transmission.
Manufacturers distribute compound additives within the polymer to influence light absorption and scattering. Carbon black and titanium dioxide are the most common additives used to block light in industrial and residential piping. The concentration, particle size, and dispersion quality of these additives directly dictate the final opacity level. Poor dispersion leads to localized areas of high transmittance, even if the overall additive ratio is correct.
While "opacity tester" is the industry-standard equipment name, the terminology can be misleading for new technicians. The machine technically calculates the percentage of light that is not absorbed. It measures transmittance to mathematically derive the final opacity value. You are always measuring the light that makes it through the wall, not the light that is blocked.
Haze vs. Transmittance (A Critical Distinction)
Transmittance measures the total light passing through a material, regardless of how it is scattered. Haze measures the scattering of light that causes a cloudy appearance. These are two fundamentally different optical properties that are often incorrectly conflated on the factory floor.
Pipe testing prioritizes absolute transmittance over haze for functional safety. Haze affects visual clarity but does not quantify the total energy breaching the pipe wall. Transmittance dictates whether enough light energy enters the pipe to fuel biological growth or cause UV damage. A pipe can have high haze but still allow unacceptable levels of light transmittance.
To clarify these distinctions for laboratory training, consider the following breakdown of optical metrics used in polymer testing:
Optical Metric | Technical Definition | Primary Application in Pipe Testing | Regulatory Relevance |
|---|
Transmittance | Percentage of incident light passing through the material. | Determining ISO 7686 compliance. | Must be <0.2% for potable water and exposed pipes. |
Opacity | The material's calculated resistance to light passage. | General material classification and additive verification. | |
Haze | The wide-angle scattering of light causing visual cloudiness. | Evaluating clear films or transparent packaging. | Irrelevant for opaque functional piping safety. |
Reflectance | Percentage of light bouncing off the exterior surface. | Assessing surface finish and thermal absorption. | Secondary metric for above-ground thermal management. |
ISO 7686 Compliance and the 0.2% Transmittance Limit
Why the 0.2% Standard Exists
The 0.2% transmittance limit exists for strict biological and chemical reasons. In water pipes, this threshold prevents photosynthesis. Blocking light starves algae and bacteria, keeping potable water safe. Even a slight increase to 0.3% or 0.4% transmittance provides enough photonic energy for biofilm development over months of continuous exposure.
Below-ground applications focus heavily on biological growth prevention, as pipes may occasionally be exposed in shallow trenches or access points. Above-ground installations focus on preventing material brittleness. The 0.2% limit protects polymer chains from UV breakdown. It prevents premature mechanical failure caused by prolonged sun exposure, ensuring the pipe maintains its pressure rating over its intended lifespan.
When UV light penetrates a polymer, it initiates photo-oxidation. This chemical reaction breaks the long polymer chains that give plastic its strength and flexibility. Over time, the material becomes brittle and prone to cracking under internal hydrostatic pressure or external impact. Enforcing the 0.2% limit is a direct preventative measure against this degradation mechanism.
The ISO 7686 Testing Protocol: Step-by-Step with a Digital Tester
Executing the ISO 7686 standard requires strict adherence to sample preparation and measurement protocols. Deviating from these steps introduces variables that invalidate the transmittance reading.
Sample Extraction: Cut a representative section of the extruded pipe, ensuring the cut is perpendicular to the longitudinal axis.
Quadrant Preparation: Divide the pipe section into four distinct test pieces (quadrants). This accounts for natural extrusion variations, die shifts, and uneven cooling across the pipe body.
Surface Cleaning: Wipe all samples with a lint-free cloth to remove dust, cutting debris, or static-charged particles that could artificially block light.
Fixture Mounting: Secure the first quadrant into the tester's clamping mechanism, ensuring a completely flush seal against the sensor aperture to prevent ambient light leaks.
Measurement Execution: Initiate the test sequence. The machine will illuminate the exterior and measure the internal transmittance.
Circumferential Mapping: Repeat the measurement at multiple points along the circumference of each quadrant to identify uneven wall thickness or localized pigment concentration gaps.
Consequences of Measurement Inaccuracy
A false positive carries massive liability and financial impact. Approving a pipe with 0.3% transmittance due to equipment error compromises the entire batch. Once installed, these non-compliant pipes become ticking time bombs for algae blooms or UV-induced ruptures.
Accurate measurement serves as a frontline defense against field failures. It prevents regulatory penalties, expensive warranty claims, and the logistical nightmare of excavating and replacing failed infrastructure. Investing in precise optical measurement protects the manufacturer's reputation and ensures long-term structural integrity.
Furthermore, inaccurate readings can lead to over-engineering. If a legacy tester consistently reads high, a manufacturer might unnecessarily increase the carbon black dosage to compensate. This wastes expensive additives and can negatively alter the mechanical properties of the pipe, such as reducing its impact resistance.
Success Criteria for a Digital Pipe Opacity Tester
Defining the Modern Testing Standard

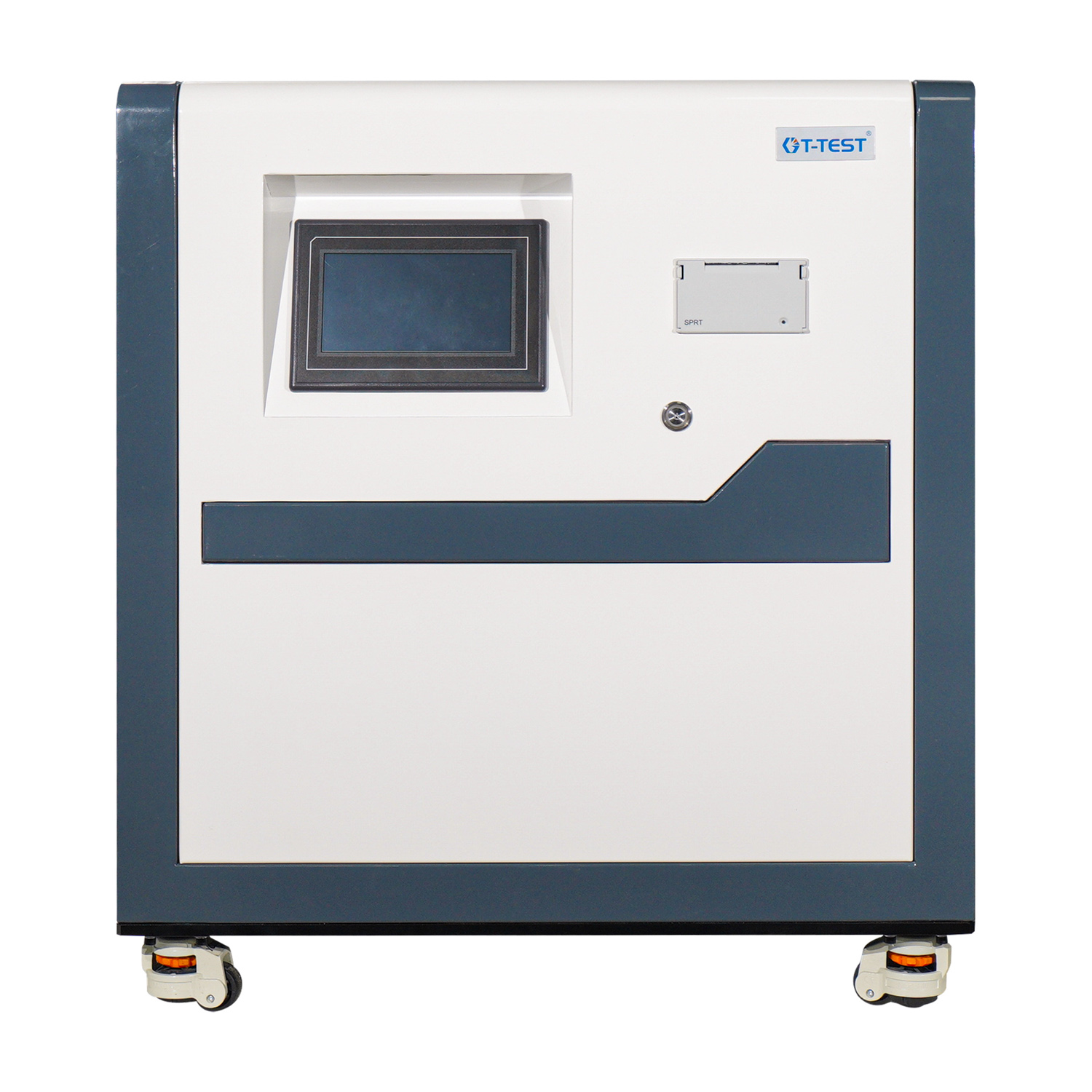

A purpose-built digital pipe opacity tester differs significantly from generic spectrophotometers. Generic devices lack the specialized clamping required for curved surfaces, leading to inevitable light leaks. Legacy optical benches rely on outdated analog sensors prone to drift and require constant manual recalibration.
Modern testers feature enclosed dark chambers constructed from light-absorbing materials. They utilize highly sensitive photoelectric receivers calibrated specifically for the 0.1% to 0.5% transmittance range. This specialization ensures accurate readings on thick, curved plastic samples that would overwhelm or confuse generalized optical equipment.
The integration of digital signal processing allows these modern units to filter out electronic noise, providing a stable, repeatable reading even at the extreme low end of the transmittance scale. This technological leap is what makes consistent ISO 7686 compliance possible in a high-volume production environment.
Core Solution Categories
When evaluating equipment, laboratories generally choose between two primary configurations based on their production volume and product mix.
Benchtop Automated Systems: These are high-throughput, fully enclosed units. They are designed for continuous lab use and rapid quality control in busy manufacturing environments. They excel when testing standard, uniform pipe sizes repeatedly.
Modular/Adjustable Systems: These testers feature interchangeable fixtures. They use adjustable optical paths to accommodate highly variable pipe diameters, from small residential plumbing to massive municipal water mains. They are ideal for custom extrusion houses.
In-Line Monitoring Systems: While less common for absolute ISO certification, these systems provide real-time trend data directly on the extrusion line, alerting operators to sudden shifts in opacity before a large batch is wasted.
Evaluation Dimensions: Features vs. Testing Outcomes
Sensor Resolution and Light Source Stability
High-resolution photoelectric sensors are absolute necessities. The equipment must detect micro-fluctuations below the 0.1% threshold. Standard sensors cannot accurately differentiate between 0.15% and 0.25% transmittance, which is the exact boundary between a pass and a fail under ISO 7686.
A stabilized, standardized light source prevents baseline drift. Integrating spheres and specific halogen or LED wavelengths ensure repeatable testing outcomes. Without a stable light source, consecutive tests on the same sample will yield conflicting results as the bulb temperature fluctuates or degrades.
The spectral distribution of the light source must also align with the standard's requirements. Using a light source that emits heavily in the infrared or ultraviolet spectrums, rather than the specified visible range, will skew the transmittance data, as polymers absorb different wavelengths at different rates.
Sample Accommodation and Scalability
Equipment must handle vastly different pipe geometries. Small diameter potable water lines require different handling than large agricultural pipes. The curvature of the sample dictates how it interacts with the sensor aperture.
Tooling and clamping systems must secure curved samples perfectly. They cannot introduce light leaks. They must not alter the path of the incident light. Poor clamping ruins the integrity of the transmittance reading immediately, usually resulting in an artificially high reading due to ambient light entering the sensor.
Advanced testers utilize adaptive, spring-loaded clamping mechanisms that conform to the specific radius of the pipe sample. This ensures a light-tight seal regardless of minor surface imperfections or slight variations in the cut angle.
Data Integrity and Audit Trails
Software capabilities define modern quality control. The system must perform automated ISO 7686 pass/fail calculations, removing the need for technicians to manually convert raw sensor voltage into transmittance percentages.
Digital reporting generates unalterable audit trails. These records are mandatory for robust quality management systems (QMS) like ISO 9001. Automated data logging removes human transcription errors from the compliance equation and provides instant historical data for continuous improvement initiatives.
Modern software should also include user authentication, ensuring that only authorized personnel can alter calibration settings or approve test results. This level of traceability is frequently requested during external audits by regulatory bodies or major infrastructure clients.
Conceptual Trade-offs and Overall Value
Capital Expenditure vs. Testing Throughput
The upfront cost of a fully automated digital pipe opacity tester can be significant. However, you must compare this against long-term labor savings and the speed at which batches can be released for shipment.
Automated systems minimize raw material waste by catching extrusion errors early. They drastically reduce human error in high-volume manufacturing environments. The initial capital expenditure pays for itself by preventing just one major batch rejection or field failure.
Manual testing methods require technicians to spend excessive time aligning samples and recording data. By automating the measurement and reporting process, skilled laboratory personnel can be reallocated to more complex analytical tasks, improving overall departmental efficiency.
Buying a dedicated pipe opacity unit offers distinct advantages over generalized plastics optical testers. Generalized equipment requires complex, custom fixturing for curved surfaces, which often degrades over time or gets misplaced in a busy lab.
Specialized tooling guarantees a perfect seal against ambient light out of the box. It streamlines the testing process, allowing technicians to work faster and with greater confidence in the results. The geometry of a pipe is unique, and the testing equipment must be engineered specifically to accommodate that geometry.
Implementation Risks and Mitigation Strategies
Ambient Light Interference
External laboratory lighting leaking into the system is a severe risk. It corrupts the highly sensitive <0.2% transmittance reading, causing false failures and unnecessary production halts.
Mitigate this by prioritizing testers built with robust, self-contained dark chambers. Enforce strict operational protocols for sample enclosure before initiating any test sequence. Technicians should be trained to visually inspect the clamping seal before pressing start.
Calibration Drift and Maintenance
Optical sensors degrade over time. Light sources dim with heavy use. This natural wear leads to baseline errors and inaccurate transmittance percentages, slowly shifting the lab out of compliance without anyone noticing.
Establish strict, documented calibration schedules to mitigate this risk. Use certified reference standards, including zero-transmittance blocks and known-transmittance filters, to verify sensor accuracy daily before testing production samples.
Sample Preparation Errors
Improperly cut, uneven, or deburred pipe samples prevent a flush seal against the sensor aperture. This physical gap allows light to bypass the material entirely, flooding the sensor.
Standardize sample cutting procedures across the laboratory. Utilize equipment with forgiving, adaptive clamping mechanisms that can accommodate minor surface imperfections without leaking light. Provide technicians with dedicated, high-quality cutting tools specifically for sample prep.
Common Testing Error | Root Cause | Immediate Mitigation Strategy |
|---|
Erratic Transmittance Readings | Unstable light source or power fluctuation. | Allow lamp warmup time; use a power conditioner. |
Consistently High Readings | Ambient light leak at the sample clamp. | Inspect sample edges for burrs; verify clamp pressure. |
Zero-Point Calibration Failure | Dust or debris on the internal sensor lens. | Clean optics with approved compressed air and lens wipes. |
Varying Results on Same Sample | Testing different circumferential points with uneven wall thickness. | Mark the exact test spot if verifying repeatability; otherwise, map the whole pipe. |
Conclusion
Understanding the inverse relationship between opacity and transmittance is only the first step in ensuring pipe quality. Enforcing the 0.2% standard requires specialized, high-resolution digital instrumentation capable of isolating minute light penetration. Quality managers must shortlist equipment based strictly on sensor accuracy at the 0.1%–0.5% range, ambient light shielding, and seamless ISO 7686 reporting capabilities.
To ensure your facility remains compliant and your infrastructure projects remain safe, take the following actions:
Audit your current optical testing methods to identify any reliance on outdated analog equipment or generalized spectrophotometers.
Request and review calibration records for all existing laboratory equipment to identify potential measurement drift or lapsed maintenance schedules.
Standardize your sample preparation protocols to ensure all pipe quadrants are cut cleanly and mount flush against testing apertures.
Schedule a technical demo with a digital pipe opacity tester manufacturer to evaluate modern, automated compliance solutions.
FAQ
Q: What is the difference between opacity and light transmittance in plastic pipes?
A: Opacity is the material's resistance to light. Transmittance is the percentage of light that successfully passes through the material. They are inversely proportional; high opacity means low transmittance.
Q: What is the ISO 7686 standard for pipe opacity?
A: ISO 7686 is an international standard specifying the test method for determining the opacity of plastics pipes and fittings. It mandates a strict light transmission limit of no more than 0.2%.
Q: Why is light transmission limited to 0.2% in potable water pipes?
A: This strict limit completely blocks the light spectrum required for photosynthesis. Preventing light penetration stops algae and bacterial growth inside the water system, ensuring water safety.
Q: How does a digital pipe opacity tester work?
A: It uses a controlled, stabilized light source and a highly sensitive photoelectric receiver inside a dark chamber. It measures the exact percentage of light photons that penetrate a pipe sample.
Q: Can I use a standard spectrophotometer instead of a dedicated pipe opacity tester?
A: While theoretically possible, standard spectrophotometers lack the specialized clamping fixtures required to seal curved pipe samples. This risks ambient light leaks and produces false transmittance readings.
Q: How does wall thickness variation affect light transmittance readings?
A: Variations in wall thickness change the optical path length. Thinner sections are more prone to elevated light transmittance. Testing multiple points along the pipe circumference is required to catch these variations.
Q: How often should a digital pipe opacity tester be calibrated?
A: Calibration should occur according to manufacturer specifications. This typically requires a daily zero-point check and an annual formal calibration using certified optical standards to ensure ongoing accuracy.
