Standards
ISO1133
ASTM D1238, method A & B
GB/T 3682
Application

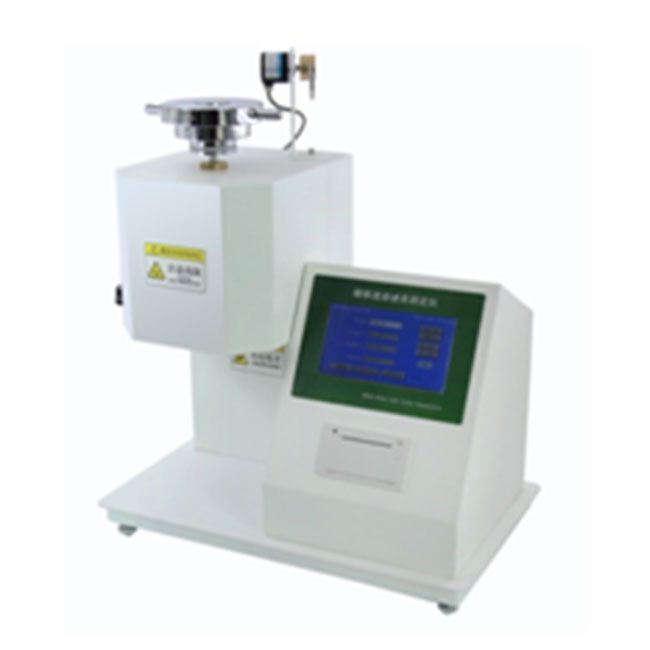

This type of Melt Flow Indexer is a new and affordable tabletop instrument that tests the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc. This test method is particularly useful for quality control tests on thermoplastics. MVR will be found particularly useful when comparing materials of different filler content and when comparing filled with unfilled thermoplastics. The MFR can be determined from MVR measurements provided the melt density at the test temperature and pressure is known.
High Accuracy
The built-in microprocessor maintains temperature control to within ± 0.5℃, with rapid ram-up to the set point. Extruded material is automatically cut off by the built-in scraper mechanism at preset intervals, controllable to ± 0.1second.
Ease to operate!
Testing Melt Flow Rate has never been so economical or easy to do! The tester is supplied completely with the accessories and weights necessary for maintenance and operation. Nothing else to buy--just plug it in and start a test.
Technical Parameters
l Operating temperature: 50 ℃ to 450℃
l Temperature control accuracy: ≤0.2℃
l Temperature display resolution: 0.1℃
l Control mode: 7” colorful touch screen and PC
l MVR displacement accuracy: 0.02mm
l Temperature recovery time: ＜4 min
l Power supply: 220V 50Hz
l Communication port: RS485 / USB
l Temperature measuring points: 2
l Measurement range:（0.1-100）g/10min /（0.01-350）cm³/10min
Features
When MVR test method is used, the MVR value of the sample with a specified time can be determined, and the MFR value can be obtained after weighing the sample. Also, the melt density can be calculated.
The MFI device can be controlled by 7” colorful touch screen, as well as computer via application software.
The application software has the functions of parameter setting, constant temperature control, cutting, calibration, timing, display of MFR and MVR results, calculation of melt density, and query and export of test data.
In order to prevent misoperation, some important operations require password verification.
Fast heating rate, small overshoot, high constant temperature accuracy, quickly restore the constant test temperature. With upper limit temperature protection, constant temperature voice prompt, restore time voice prompt.

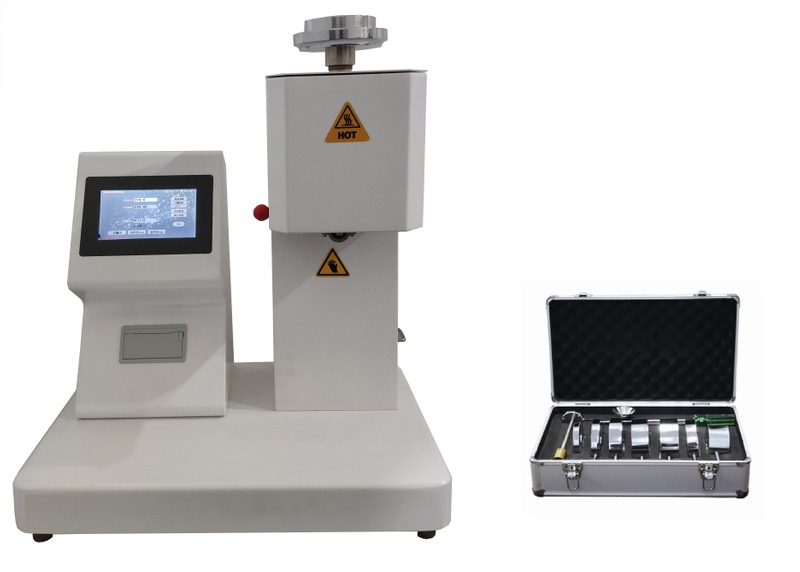

Standard configuration
1. Piston Rod
2. Die
3. Die Cleaning Tool
4. Cut-off Knife
5. Cylinder Cleaning Tool
6. Sample Charging Tool
7. Lever Meter
8. Funnel
9. Cylinder
10. Weights (up to 21.6kg)
