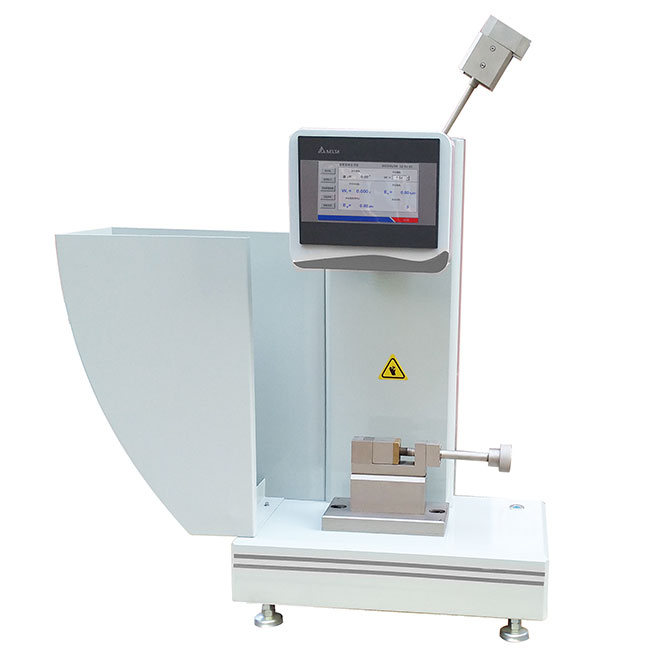

Izod Impact Tester

Izod method is used to investigate the behavior of specified types of specimen under impact conditions defined and for estimating the brittleness or toughess of specimens within the limitations inherent in the test conditions.
Quantity:
  • GT-IZOD
  • GT-TEST
  • 9024800000

Standards

l  ISO 180

l  ASTM D 256



Application

Izod method is used to investigate the behavior of specified types of specimen under impact conditions defined and for estimating the brittleness or toughess of specimens within the limitations inherent in the test conditions.

The test specimen, supported as a vertical cantilever beam, is broken by a single impact of a striker, with the line of impact a fixed distance from the specimen clamp and, in the case of notched specimens, from the centerline of the notch.

Features

l  10” full-color touch screen for quick & easy input of specimen parameters, automatic calculation impact strength as well as test data storage.

l  Equipped with a USB interface, which can directly export the data through the USB stick, and import to PC for editing and printing the test report.

l  High mass, traditional pendulum design concentrates energy at the impact point with minimal energy loss due to vibration.

l  Multiple impact energies can be generated by one pendulum.

l  The electrics contain a high-resolution encoder for accurate measurement of the impact angel.

l  Results are automatically corrected for energy loss due to air and mechanical friction.

Technical Parameters

  1. 1.     Energy levels (max capacity): 1J, 2.75J, 5.5J (Model: GTIZ-5.5) / 11J and 22J (Model: GTIZ-22)

  2. 2.     Charpy testing impact speed: 3.5m/s

  3. 3.     Measurement resolution:  0.01J
