Opacity dictates the performance and safety of plastic pipes and fittings. When visible light penetrates piping systems, it creates an environment ripe for algae growth. Photosynthetic biological activity compromises water quality, clogs filtration systems, and accelerates internal degradation. Manufacturers must prevent visible light transmission to maintain structural integrity and meet stringent regulatory standards.
Failing to control light transmission introduces severe operational risks. Non-compliance leads directly to batch rejections and regulatory penalties. Outdated or improperly calibrated testing equipment causes inconsistent light flux measurements. These hidden measurement errors force manufacturers to scrap perfectly good batches or ship defective products. Precision in optical testing separates reliable manufacturers from those facing constant quality disputes.
The ISO 7686 standard provides the definitive framework for opacity testing. It standardizes how laboratories measure light transmission through polymer walls. Understanding these test principles ensures accurate quality control. Executing the procedure correctly requires specific environmental controls and precise specimen preparation. Evaluating and selecting the right ISO 7686 pipe opacity tester ensures laboratory scalability, eliminates human error, and guarantees exact compliance with global piping standards.
Standardized Principle: ISO 7686 relies on measuring the percentage of incident light flux that passes through a prepared test piece, requiring highly controlled optical environments.
Equipment Precision is Non-Negotiable: A compliant ISO 7686 pipe opacity tester must feature exact light source specifications, precise photoelectric cell calibration, and secure specimen mounting to eliminate ambient light interference.
Procedural Rigor: Accurate results depend heavily on strict adherence to test specimen preparation, including precise cutting, sizing, and environmental conditioning prior to testing.
Procurement Strategy: Evaluating testing equipment requires balancing upfront costs against automation capabilities, sensor longevity, and the mitigation of human error in high-throughput QA environments.
Scope, Purpose, and Scientific Principle of ISO 7686 Opacity Testing
Scope and Purpose of EN ISO 7686
The EN ISO 7686 standard defines the exact methodology for determining the opacity of plastics pipes and fittings. It applies to thermoplastics, multi-layer constructions, and thermosetting materials. The standard establishes a uniform testing environment to quantify how much visible light passes through a polymer wall. Laboratories rely on this standard to certify products for specific industrial and municipal applications.
End-use applications mandate strict opacity thresholds. Potable water distribution networks require near-total opacity. If light enters the water stream, photosynthetic biological growth occurs rapidly. Algae and bacteria colonies degrade water safety and introduce foul tastes or odors. Chemical transport lines also demand high opacity to prevent UV-induced degradation of sensitive fluids. Agricultural piping faces constant sun exposure, making opacity a primary defense against internal bio-fouling.
Application Type | Primary Risk of Light Transmission | Typical Opacity Requirement |
|---|
Potable Water Distribution | Algae and bacterial growth, water contamination | ≤ 0.2% transmission |
Agricultural Irrigation | Bio-fouling clogging drip emitters and valves | ≤ 0.2% transmission |
Chemical Transport | UV degradation of light-sensitive chemical fluids | Application specific, often < 0.1% |
Sanitary Sewer | Internal structural degradation over long-term exposure | Standard dependent |
Defining Opacity in Plastics Pipes and Fittings
Opacity in polymer science refers to a material's ability to block visible light transmission. It depends on the absorption and scattering of light photons as they interact with the polymer matrix. Pigments, fillers, and the crystalline structure of the plastic all contribute to this optical barrier. High opacity means minimal light passes through the material.
Specific applications mandate strict opacity thresholds. Most potable water standards require light transmission to remain below 0.2%. Even a 0.5% transmission rate can trigger significant algae blooms in slow-moving water networks. Manufacturers achieve these low transmission rates by optimizing carbon black dispersion or utilizing specialized titanium dioxide pigments. Testing confirms these formulations work under real-world conditions.
The Light Flux Measurement Mechanism
The core physics of the test revolves around measuring light flux. The system directs a known quantity of light at the specimen. This initial light is the incident light flux. The sensor then measures the light that successfully penetrates the polymer wall. This is the transmitted light flux. The tester calculates the transmitted light as a direct percentage of the incident light.
Several variables impact light transmission during testing. Polymer density alters how light scatters internally. Pigment dispersion quality dictates the uniformity of the optical barrier. Poorly dispersed masterbatch leaves microscopic clear windows in the pipe wall. Wall thickness directly correlates with opacity; thicker walls naturally block more light. Outer and inner surface imperfections, such as scratches or extrusion lines, refract light and can skew flux measurements.

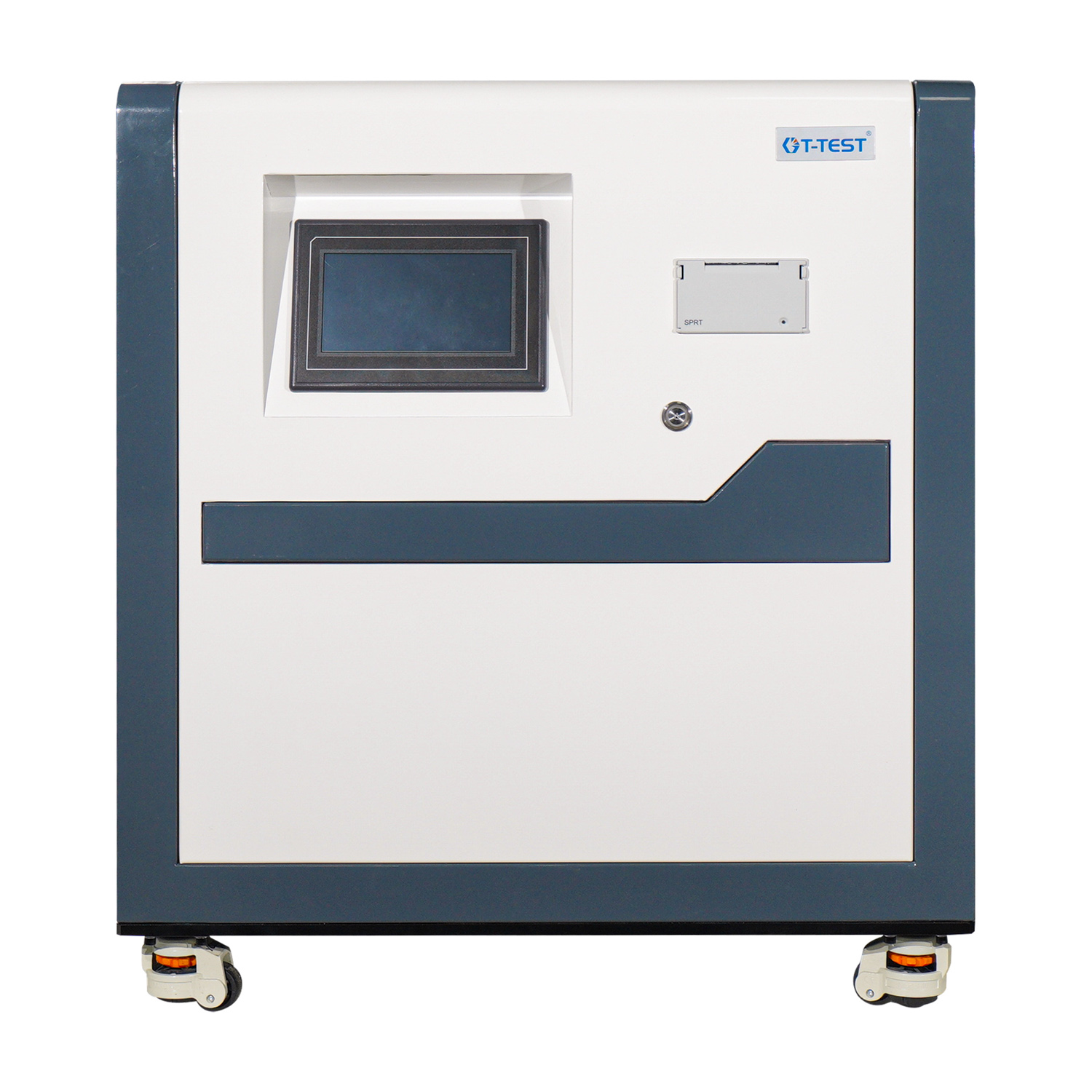

Anatomy of an ISO 7686 Pipe Opacity Tester
Essential Apparatus Components and Optical Specifications
A compliant tester requires highly specific optical components. The light source must deliver a consistent color temperature, typically mirroring daylight conditions. Luminous intensity must remain absolutely stable during the measurement cycle. The light spectrum must align with the CIE standard illuminant or feature a precise photopic spectral response. Any fluctuation in the light source invalidates the test data.
The photoelectric cell acts as the measurement core. It requires extreme sensitivity to detect minute fractions of a percent of light transmission. The sensor must possess a specific spectral bandpass to ignore infrared or ultraviolet interference. It translates the captured light photons into a measurable electrical current. High-resolution analog-to-digital converters then process this current for the software.
The optical path design prevents measurement errors. A collimating lens system ensures the light beam strikes the specimen perfectly parallel. Diaphragms and apertures control the beam diameter, matching it to the specimen size. The specimen holder maintains exact geometric alignment. It must clamp the pipe segment securely while completely blocking ambient light leaks from the surrounding laboratory environment.
Manual vs. Automated Testing Systems
Laboratories choose between traditional manual testers and modern automated systems. Manual systems require operators to physically mount the specimen, close the chamber, and record the digital readout. The operator must manually rotate the specimen to test different points. These systems demand higher labor hours and introduce operator variance.
Automated systems reduce operator variance significantly. A modern tester automatically rotates specimens to capture multiple data points across the pipe's curvature. Motorized apertures adjust to different wall thicknesses without manual intervention. Automated systems increase throughput for busy QA labs. They eliminate transcription errors by sending data directly to laboratory management software.
Calibration and Baseline Setup
Mandatory calibration protocols establish the foundation of accurate testing. Operators must establish a true zero baseline and a 100% transmission baseline before testing.
Power on the testing unit and allow the light source to reach thermal stability (usually 15-30 minutes).
Block the light path completely using a solid, opaque calibration block.
Initiate the dark current calibration to establish the 0% transmission baseline.
Remove the opaque block and ensure the testing chamber is completely empty and clean.
Initiate the full light calibration to establish the 100% incident light flux baseline.
Verify the readings with a known reference standard if required by internal QA protocols.
Calibration drift occurs over time due to sensor aging or dust accumulation. Dust on the collimating lens reduces the incident light flux, skewing the 100% baseline. Laboratories must implement strict frequency recommendations for calibration. Daily baseline checks ensure immediate accuracy. Formal third-party calibration maintains compliance in lab reporting and satisfies external quality audits.
Step-by-Step ISO 7686 Testing Procedure
Test Specimen Preparation and Sampling
The sampling plan dictates the statistical validity of the test. A standard plan requires multiple test pieces per sample. Technicians typically extract four segments cut from equidistant points around the pipe circumference. This accounts for any variations in wall thickness or pigment dispersion caused by the extrusion die.
Extracting test pieces requires precise cutting methodologies. Technicians must cut specific dimensions without inducing thermal stress. High-speed saws can melt the polymer edges, altering the local density. Slow, cooled cutting methods preserve the material's original state. The specimen must fit perfectly over the optical aperture without warping or cracking.
Edge finishing prevents optical interference. Technicians must deburr all cut edges. Rough edges scatter light, allowing stray photons to bypass the actual pipe wall and hit the sensor. Surface cleaning removes cutting fluids, dust, and fingerprints. Even a smudge can refract light and alter the transmission reading.
Environmental conditioning stabilizes the polymer before testing. Laboratories must hold the specimens at a controlled temperature and humidity for a specified duration. This prevents condensation from forming on the specimen inside the testing chamber. Thermal stability ensures the polymer matrix does not expand or contract during the measurement.
Executing the Measurement
The measurement phase follows a strict chronological breakdown. The operator places the conditioned specimen in the light path. The specimen must sit flush against the optical aperture mask. The operator adjusts the mask based on the specific wall thickness of the sample. The testing chamber is then secured and sealed against all ambient light.
Initiating the light flux reading takes only seconds. The system directs the collimated beam through the specimen. The sensor captures the transmitted light and stabilizes the reading. The operator records the value or allows the software to log it automatically. The process repeats for all four equidistant segments.
Operator errors frequently occur during this phase. Improper alignment of the specimen relative to the incident light beam causes light to leak around the edges. Failing to seal the chamber introduces ambient laboratory lighting into the sensor. Using the wrong aperture mask for the pipe's curvature results in inaccurate flux capture.
Opacity Calculation and Determining the Final Value
The mathematical formula converts raw light flux data into a final opacity percentage. The calculation divides the transmitted light flux by the incident light flux, then multiplies by one hundred.
The protocol for determining the final value requires statistical aggregation. The laboratory calculates the arithmetic mean of the individual test piece readings. If four segments yield readings of 0.15%, 0.16%, 0.14%, and 0.15%, the final reported opacity is 0.15%. This mean value represents the overall performance of the extruded pipe.
Modern automated tester software executes these calculations instantly. The system aggregates multi-point measurements without manual spreadsheet entry. It automatically flags any single reading that deviates significantly from the others. The software registers pass/fail statuses automatically based on the pre-programmed standard thresholds.
Result Reporting and Compliance Documentation
Mandatory Elements of an ISO 7686 Test Report
The standard dictates strict reporting requirements to ensure traceability. A compliant test report must contain specific data points. Missing information invalidates the certification process during external audits. Laboratories must standardize their reporting templates to capture every required metric.
Reporting Element | Description and Purpose |
|---|
Sample Identification | Full identification including material type, brand, batch number, and nominal dimensions. Ensures exact traceability to the production run. |
Wall Thickness | Exact wall thickness of each individual test piece measured at the precise point of optical testing. |
Individual Flux Readings | The raw transmitted light flux readings and the calculated transmission percentages for every segment tested. |
Final Opacity Value | The arithmetic mean of all individual specimens, representing the official test result. |
Test Conditions & Deviations | Documentation of environmental conditioning parameters and any anomalies or deviations from standard protocol. |
Handling Edge Cases and Anomalous Readings
Unexpected results require immediate investigation. A single high-transmission reading among three low readings indicates a localized issue. This often stems from localized pigment agglomeration during extrusion. Alternatively, it could indicate equipment malfunction, such as a speck of dust on the sensor or a misaligned specimen.
Laboratories must establish protocols for re-testing. If an anomaly occurs, technicians should re-verify the equipment calibration first. They must document the deviation clearly. Re-cutting new specimens from the same pipe batch helps determine if the issue is material-based or procedural. Transparent documentation of these edge cases maintains laboratory integrity.
Evaluating and Selecting an ISO 7686 Pipe Opacity Tester
Precision, Repeatability, and Sensor Accuracy
Equipment evaluation hinges on sensor resolution. The tester must differentiate between 0.10% and 0.11% transmission with absolute certainty. Reproducibility of measurements across identical samples proves the machine's reliability. If the same specimen yields different results on consecutive tests, the light source or sensor lacks stability.
Stability of the light source prevents baseline drift. High-quality testers utilize regulated power supplies to prevent voltage fluctuations from altering the luminous intensity. Evaluating the thermal management of the light source is also critical. Excessive heat can degrade the optical filters over time.
Scalability for High-Volume QA Labs
High-volume laboratories require seamless integration. Testers must connect directly to existing laboratory information management systems (LIMS). Direct data transfer eliminates transcription errors and speeds up batch release times. Procurement teams should verify the software compatibility before purchase.
Physical scalability matters just as much. The tester must handle varied pipe diameters, from small residential plumbing lines to massive municipal water mains. Interchangeable specimen holders and adjustable aperture masks allow one machine to service an entire production facility. Evaluating the changeover time between different pipe geometries ensures the lab maintains high throughput.
Risk of Non-Compliance and Procurement Strategy
Procurement managers must analyze the long-term implications of their equipment choices. Budget constraints often push buyers toward entry-level manual systems. However, the risk of non-compliance far outweighs initial hardware savings. False passes lead to field failures, algae contamination, and massive liability claims.
False fails are equally damaging. If an inaccurate tester rejects a compliant batch, the manufacturer loses raw material, production time, and energy. A decision matrix for procurement should prioritize sensor longevity, automated calibration checks, and robust manufacturer support. Investing in high-precision compliance safeguards the manufacturer's reputation and operational efficiency. For detailed specifications on advanced optical testing solutions, procurement teams should contact us to discuss custom laboratory integrations.
Conclusion
Audit current opacity testing workflows to identify manual data entry bottlenecks and upgrade to automated LIMS integration.
Calculate historical error rates related to false batch rejections to justify upgrading your optical testing hardware.
Request technical demonstrations from equipment manufacturers to verify sensor resolution and repeatability on your specific pipe samples.
Standardize specimen preparation procedures across all shift operators to reduce variance and ensure consistent edge finishing.
FAQ
Q: What is the acceptable opacity percentage for plastic pipes under ISO 7686?
A: Typically, acceptable light transmission is ≤ 0.2%, though specific product standards dictate variations. Always check the specific application standard alongside ISO 7686 to confirm the exact threshold required for your pipe's end-use.
Q: How often should an ISO 7686 pipe opacity tester be calibrated?
A: Operators must perform daily baseline checks (0% and 100% transmission) before testing batches. Formal manufacturer or third-party calibration should occur annually or bi-annually, depending heavily on the laboratory's usage volume and quality audit requirements.
Q: What is the difference between EN ISO 7686 and ISO 7686?
A: They are technically identical documents. The "EN" prefix simply denotes that the standard has been officially adopted as a European Standard by the European Committee for Standardization (CEN).
Q: How do you prepare a test piece for pipe opacity testing?
A: Preparation involves cutting a specific geometric section from the pipe, ensuring perfectly clean and deburred edges. The sample must then be conditioned to standard laboratory environmental temperatures to prevent condensation or thermal distortion during the test.
Q: Can one tester handle different pipe diameters and wall thicknesses?
A: Yes. High-quality testers include adjustable specimen holders and interchangeable aperture masks. These components accommodate various pipe curvatures and wall thicknesses while maintaining the strict light-tight seal required for accurate testing.
Q: What causes false opacity readings in plastic pipes?
A: Common culprits include ambient light leaks entering the testing chamber, dirty optical lenses, uncalibrated photoelectric sensors, or poorly cut specimens that cause the incident light to refract rather than transmit straight through the wall.
