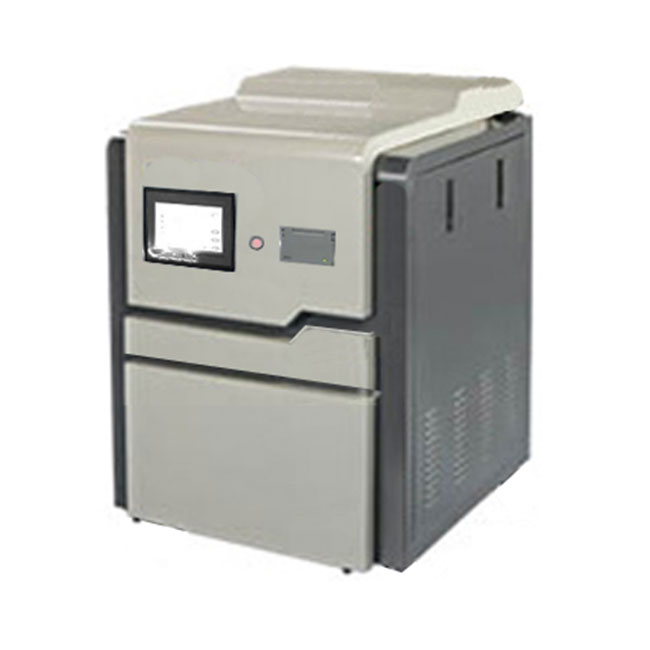

Pipe Opacity Testing Machine
Standards
ISO 7686:2005
Application
Pipe opacity testing machine is used to determine the opacity determination of plastic pipes and fittings (the result is displayed as a percentage).
This series of products are widely used in scientific research institutions, universities and colleges, quality inspection departments, production enterprises.
It consists of optical source, Luminous flux collection system, automatic specimen going in/out controlling system, specimen automatic moving device, specimen support, man-machine communicating touch screen and micro-printer.
Features
It can test four specimens at the same time.
Industrial touch screen with strong anti-interference ability is adopted as the man-machine interaction interface, the operation process is simple and convenient.
The luminous flux collecting system adopts high-precision light collector and 24-bit analog-to-digital conversion circuit.
System can automatically identify 4 specimens and 12 measurement points. Also, positioning, tracking and moving can realize fully automatic measurement.
For easy operation, it has the function of automatic analysis, recording, storage and display.
Technical parameters
l Pipe diameter range: Φ16 to Φ40mm
l Number of specimens: 4, each specimen has 3 measuring points
l Optical wavelength: 545nm±5nm
l Luminous flux resolution：±0.01%
l Luminous flux accuracy：±0.05%
