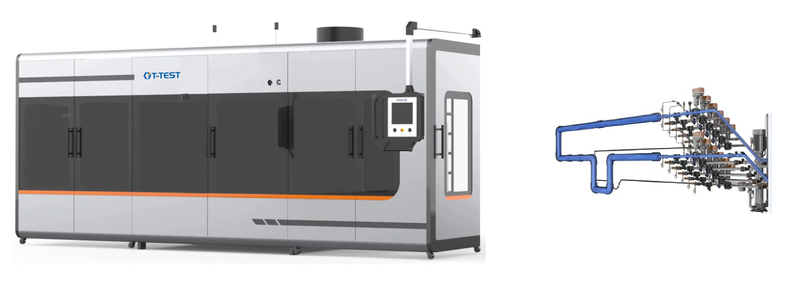

Temperature Cycling Test Unit
Standards
ISO 10508, ISO 15876, ISO 15875, BS 7291, EN12293
Application
The Hot and cold water cycling tester is mainly used to determine the leakage status of composite pipes & fittings when subjected to specified cycling times under specified internal pressure load.
Product Composition
• Sample chamber
• Good quality 304 SUS cold water tank (with chiller & heat exchanger)
• 316 SUS hot water tank with good quality heating elements
• Electric control system
• Flow measurement (option)
• Pre-tension loading system (option)
Features
• Open structure: high temperature and high pressure only exists in the specimens.
• Multiple safety protection: Liquid level protection, transparent shield, perfect prompt function, unique water flow control, maintenance-free control valve and Intelligent water replenishment.
• Automatically identify the fault and give prompt information
• Good quality 304 SUS cold water tank (with chiller & heat exchanger)
• 316 SUS hot water tank with good quality heating elements
• With the optional functions of flow measurement and tensioning device
Technical Parameters
Pressure range (bar) | 4 to 11 |
Pressure control accuracy (bar) | ±0.2 |
Number of test stations | 6 |
Maximum pipe diameter (mm) | 2 X 63 |
Cycle numbers | 1 to 100000 |
Temperature of cold water tank (℃) | 15 to RT (±2℃), 800L |
Temperature of hot water tank(℃) | 60 to 95（±1℃), 800L |
Display | Touch screen |
Control | PLC |
