Opacity testing directly impacts the structural longevity and safety of plastic pipes and fittings deployed in exposed environments. When manufacturing piping systems for potable water or outdoor conduits, preventing UV degradation and algae growth is a strict operational requirement. If a pipe allows excessive light transmission, ultraviolet radiation breaks down the polymer chains, while visible light promotes photosynthesis and bacterial fouling inside water lines. Inaccurate impermeability determination creates severe financial and operational risks. Batch rejections, failure to meet international regulatory standards like ISO 7686, and premature material failure in the field expose manufacturers to massive liability. You need a structured evaluation framework to select the right equipment. This means analyzing technical specifications such as diameter range, wavelength precision, and measurement accuracy. You must also evaluate automation capabilities and long-term reliability to make qualified procurement decisions. Implementing a high-quality pipe opacity tester ensures your production lines consistently output compliant, durable materials that withstand harsh environmental conditions.
Key Takeaways
Standardization is Non-Negotiable: True compliance with ISO 7686 requires specific light source wavelengths and precise optical measurement systems to guarantee accurate impermeability determination.
Diameter Range Dictates Utility: A tester must natively support your production line's specific sample diameter ranges (e.g., Φ16mm to Φ40mm and beyond) with matching specimen supports and rasters to prevent testing bottlenecks.
Automation Reduces Operator Error: Automated specimen handling and data logging significantly improve test repeatability and throughput compared to manual configurations.

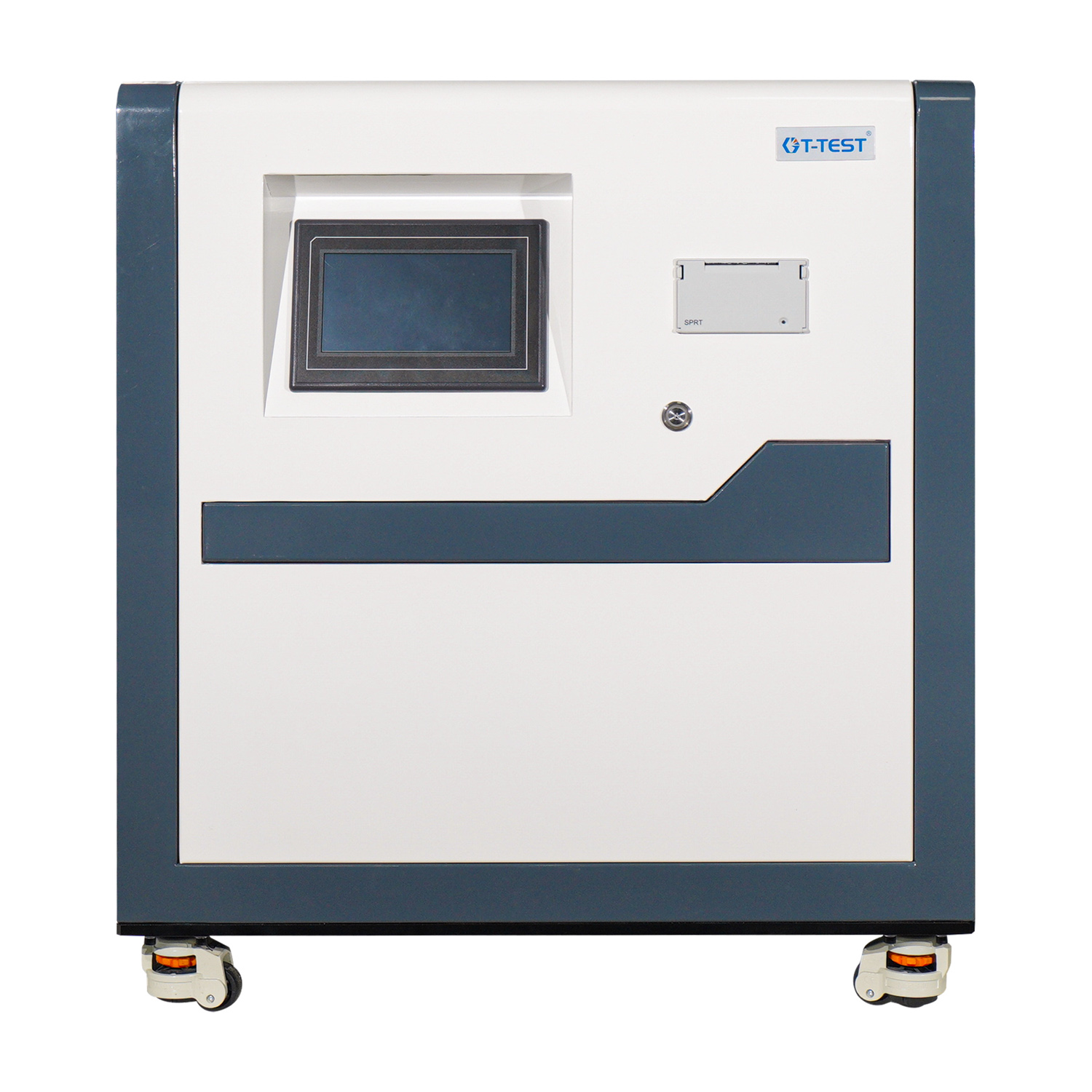

The Role of a Pipe Opacity Tester in Quality Control
Understanding Impermeability Determination
Opacity testing quantifies the exact percentage of light transmission through a solid material. For plastic pipes and fittings, this physical measurement dictates whether a product is fit for purpose. High opacity prevents photosynthesis inside the pipe cavity. This mechanism stops algae growth in potable water systems, ensuring water quality remains safe for consumption. It also protects outdoor electrical conduits and telecommunication ducts from ultraviolet light damage. UV exposure degrades polyethylene and polyvinyl chloride over time, causing embrittlement and micro-cracking. A reliable pipe opacity tester verifies that the material formulation contains sufficient carbon black or other opacifying agents. This ensures the pipe blocks enough light to maintain structural and functional integrity over decades of continuous use.
The physics of this measurement rely on precise optical alignment. The equipment directs a controlled beam of light at the exterior surface of the pipe sample. A highly sensitive photoelectric sensor sits on the interior side of the sample. The sensor measures how many photons successfully penetrate the polymer matrix. If the material formulation is inconsistent, or if the extrusion process stretches the polymer too thin, light transmission increases. Quality control teams use these transmission percentages to monitor the stability of the extrusion line. Catching a spike in light transmission early prevents thousands of meters of defective pipe from reaching the storage yard.
ISO 7686 Compliance and Success Criteria
The ISO 7686 standard establishes strict light transmission limits for plastic pipes and fittings. Typically, these materials must demonstrate a light transmission of ≤0.2%. Meeting this standard requires verifiable, documented compliance. Your testing machine must deliver repeatable results across multiple shifts and different operators. It must also generate auditable data trails that trace back to specific production batches. Success means your quality control team can confidently certify every batch before shipment, knowing the data will hold up under third-party audits.
Failing to meet these limits compromises the entire piping network. If a manufacturer ships non-compliant pipe, the liability extends far beyond the cost of the material. Replacing buried water mains or embedded electrical conduits requires heavy excavation, disrupting municipal infrastructure. Therefore, the testing equipment must eliminate false passes. The optical sensors must be sensitive enough to differentiate between 0.19% and 0.21% transmission. This narrow margin of error demands laboratory-grade precision on the factory floor.
The ISO 7686 Test Procedure at a Glance
The test procedure requires meticulous sample preparation and precise execution. Operators cannot simply place a whole pipe into the machine. The geometry of a cylinder scatters light, making direct measurement impossible. Instead, the standard dictates a specific preparation and measurement workflow.
Operators cut a pipe specimen into four equal segments along its longitudinal axis using a specialized precision saw.
They deburr the edges and clean the inner and outer surfaces with a lint-free cloth to remove cutting dust and static-bound particles.
The operator mounts the first segment onto the specimen support, ensuring the convex surface faces the light source.
The machine measures the incident light flux passing through a defined aperture, known as the raster, without the specimen in place.
The machine then measures the transmitted light flux passing through the mounted specimen.
The system calculates the opacity percentage using the standard formula, comparing transmitted light to incident light.
The operator repeats this process for the remaining three segments, and the software calculates the average transmission for the entire pipe sample.
Accurate preparation and measurement are vital for valid results. If an operator leaves dust on the sample, the dust blocks light, artificially lowering the transmission reading. If the sample is not seated perfectly flush against the raster, ambient light leaks into the sensor, artificially raising the reading. The equipment design must minimize these human variables.
Core Technical Evaluation Dimensions
Sample Diameter Range and Specimen Support
Modular specimen supports are essential for versatile testing environments. A standard machine must handle common ranges like Φ16mm, Φ20mm, Φ25mm, Φ32mm, and Φ40mm natively. You must evaluate machines based on their ability to accommodate custom or oversized fittings without requiring complex modifications. The raster plays a critical role in this mechanical setup. It must match the specific diameter and curvature of the pipe segment perfectly. A properly sized raster focuses the light path directly through the thickest part of the pipe wall and prevents stray light from bypassing the specimen edges.
When testing large-diameter pipes, the curvature of the segment is much shallower. The specimen support must adapt to this flatter profile to maintain a light-tight seal against the raster. Conversely, small-diameter pipes have an aggressive curvature. The support mechanism must cradle these small segments securely so they do not shift during the measurement cycle. If the specimen moves even a fraction of a millimeter, the optical alignment fails.
Pipe Outer Diameter (OD) | Required Raster Size | Typical Application | Curvature Profile |
|---|
16mm - 20mm | Small Aperture (2mm - 3mm) | Residential PEX / Indoor Plumbing | Aggressive / High Arc |
25mm - 32mm | Medium Aperture (4mm - 5mm) | Commercial Water Supply Lines | Moderate Arc |
40mm - 63mm | Large Aperture (6mm - 8mm) | Industrial Conduits / Mains | Shallow Arc |
75mm and above | Custom Wide Aperture | Municipal Infrastructure | Near Flat |
Evaluating Raster and Specimen Support Configurations
The mechanical interface dictates operational efficiency on the testing floor. Operators must swap rasters and supports quickly when transitioning between different pipe sizes. Tool-less magnetic systems offer significantly faster changeovers than traditional manual screw-in systems. Magnetic mounts snap into perfect alignment instantly, whereas threaded mounts can cross-thread or loosen over time due to machine vibration. Always verify that the vendor provides a complete, comprehensive kit. This kit must match all standard outer diameters in your production portfolio out of the box.
Missing supports will halt your quality control process. If an operator attempts to test a 32mm pipe using a 25mm raster, the curvature mismatch creates gaps. Light floods through these gaps, triggering a false failure. You must audit your entire product catalog and cross-reference it with the vendor's raster inventory. High-quality manufacturers machine their rasters from anodized aluminum or stainless steel to prevent wear and maintain dimensional stability over thousands of testing cycles.
Light Source Wavelength and Optical Precision
The light source must meet strict technical requirements defined by international standards. Testing protocols require specific nanometer wavelengths to simulate environmental light spectrums accurately. Typically, this involves a halogen or specialized LED light source that emits a stable, continuous spectrum. Stability is just as important as the wavelength itself. A fluctuating light source causes severe measurement drift, rendering the data useless.
High-quality machines maintain consistent light output over time by utilizing regulated power supplies and thermal management systems. Heat degrades LED performance and alters the emission spectrum. Premium testers incorporate active cooling or massive heat sinks to keep the light source at a constant temperature. This ensures your readings remain accurate across multiple testing shifts, regardless of the ambient temperature in the laboratory.
Measurement Accuracy and Resolution
High-precision manufacturing requires strict resolution parameters. Target a resolution of 0.01% or better when evaluating equipment. Sensor quality directly impacts this metric. The system relies on efficient photoelectric conversion, typically utilizing high-grade silicon photodiodes. These sensors must possess a linear response curve across the entire measurement range, ensuring accuracy whether the transmission is 0.05% or 0.18%.
Robust ambient light shielding is equally critical. Any external light entering the testing chamber will skew the final percentage reading. Superior optical design separates standard testers from laboratory-grade equipment. Look for machines featuring interlocking darkrooms, baffled ventilation ports, and matte-black internal coatings that absorb stray photons. The sensor should only register light that has passed directly through the polymer matrix.
Automation Requirements and Software Integration
Manual vs. Automated Testing Workflows
Manual testing requires operators to position each sample physically, close the chamber, record the reading, and repeat the process for all four segments. This introduces human error and slows down throughput significantly. Operators may misalign the sample, apply inconsistent pressure, or transcribe numbers incorrectly. Fully automated machines feature motorized specimen stages driven by precision stepper motors. They automatically position the four cut segments in the optical path sequentially.
This automation reduces labor requirements and accelerates test cycle times. An operator simply loads the four segments into a multi-station carousel, closes the lid, and presses start. The machine handles the rest. It guarantees consistent sample alignment and uniform clamping pressure, which drastically improves the repeatability of the results. In a high-volume manufacturing environment, the time saved by automated testing frees up quality control personnel to perform other critical inspections.
Data Logging, Export, and Audit Trails
Modern testing requires robust software capabilities to manage the influx of quality data. Look for systems that offer real-time result displays with graphical trend lines. Extensive historical data storage is mandatory for tracking long-term extrusion performance. Export formats should include CSV and PDF for easy reporting to management and external auditors. Advanced systems allow direct integration with factory ERP platforms via Ethernet or API connections, pushing test results directly to the batch record without manual data entry.
Secure audit trails are mandatory for regulatory compliance. They provide an unalterable record of all tests, ensuring complete quality assurance transparency. The software should require individual user logins and track who performed each test, when it occurred, and what parameters were used. If a parameter is changed or a test is aborted, the system must log the event. This level of traceability protects the manufacturer during liability claims or compliance audits.
Implementation Realities and Adoption Risks
Calibration Needs and Long-Term Drift Mitigation
Sensors require regular calibration to maintain accuracy and comply with ISO standards. Standard procedures involve using master calibration plates with known, certified transmission values to verify the light transmission baseline. Operators insert these plates into the machine just like a pipe sample. If the machine reads a 0.10% plate as 0.12%, the system requires recalibration. You must store these calibration plates in desiccators and handle them only with lint-free gloves to prevent surface contamination.
Optical drift is a common risk in older or lower-quality machines. As the light source ages or dust settles on the lenses, the baseline light flux changes. Premium equipment utilizes self-calibrating routines or reference-beam technologies. These features mitigate drift by splitting the light beam. One path goes through the sample, while the other goes directly to a reference sensor. The system continuously verifies the light source intensity against this known standard during operation, automatically compensating for any degradation in output.
Operator Training and Sample Preparation Bottlenecks
Sample preparation is often the biggest bottleneck in the opacity testing workflow. Operators must cut specimens precisely along the longitudinal axis. If the cut is angled, the segment will not sit flat against the raster. They must clean surfaces of all debris, including microscopic plastic shavings generated during the cutting process. They must then mount the specimens on the correct matching supports, ensuring the orientation is correct.
Different machine interfaces come with varying learning curves. A complex, poorly designed software interface leads to operator frustration and mistakes. Comprehensive vendor training is necessary to ensure operators understand the nuances of sample alignment and software navigation. Proper training prevents false failures caused by poor preparation. You should designate a lead technician to master the equipment and train new hires, ensuring standard operating procedures are strictly followed across all shifts.
Conclusion
The optimal testing equipment balances strict ISO 7686 compliance with your specific production needs. Throughput requirements, raster configurations, and diameter ranges must align perfectly with your manufacturing output. Prioritize vendors that offer transparent calibration procedures, robust automation for high-volume testing, and verifiable optical resolution of at least 0.01%. Upgrading your testing infrastructure protects your brand reputation and prevents catastrophic field failures.
Take the following steps to upgrade your testing capabilities:
Audit your current production line to map all required pipe diameter ranges and curvature profiles.
Request technical data sheets and sample test reports from shortlisted vendors to verify ISO 7686 compliance.
Verify the mechanical interface of the rasters and specimen supports for quick, tool-less changeovers.
Schedule a live or virtual equipment demonstration to evaluate the software interface and audit trail capabilities.
Contact a testing specialist to confirm the availability of master calibration standard plates and long-term support.
FAQ
Q: What is the standard test method for pipe opacity?
A: ISO 7686 is the primary international standard for determining the opacity of plastics pipes and fittings. It focuses on measuring light transmission percentages to ensure long-term impermeability, preventing UV degradation and internal algae growth.
Q: How does a pipe opacity tester measure impermeability?
A: It passes a specific wavelength of light through a prepared pipe sample. A matched raster blocks ambient and bypass light. A high-resolution optical sensor then calculates the exact percentage of light transmission through the polymer matrix.
Q: What diameter ranges can a standard pipe opacity tester accommodate?
A: Standard testers typically support ranges such as Φ16mm, Φ20mm, Φ25mm, Φ32mm, and Φ40mm. Each specific pipe size requires matching specimen supports and rasters to ensure accurate optical alignment and prevent light leaks.
Q: How often does a pipe opacity tester require calibration?
A: Calibration should occur bi-annually or annually using certified reference calibration plates. Operators must also perform quick daily self-checks to verify base light flux stability and sensor accuracy before testing production batches.
Q: What is the difference between manual and automated pipe opacity testers?
A: Manual testers require operators to physically reposition each of the four specimen segments over the optical path. Automated testers utilize motorized stages to automatically translate the specimen holder across all test points and compute the average opacity.
Q: Why is ISO 7686 compliance critical for plastic pipes and fittings?
A: Compliance ensures the pipe material blocks sufficient light to prevent internal algal growth in potable water lines. It also ensures the material resists UV-induced degradation, preserving the piping network's structural integrity over its lifespan.
