High Precise Fully Automatic Notch Making Machine for Chaypy and IZOD specimens with CE

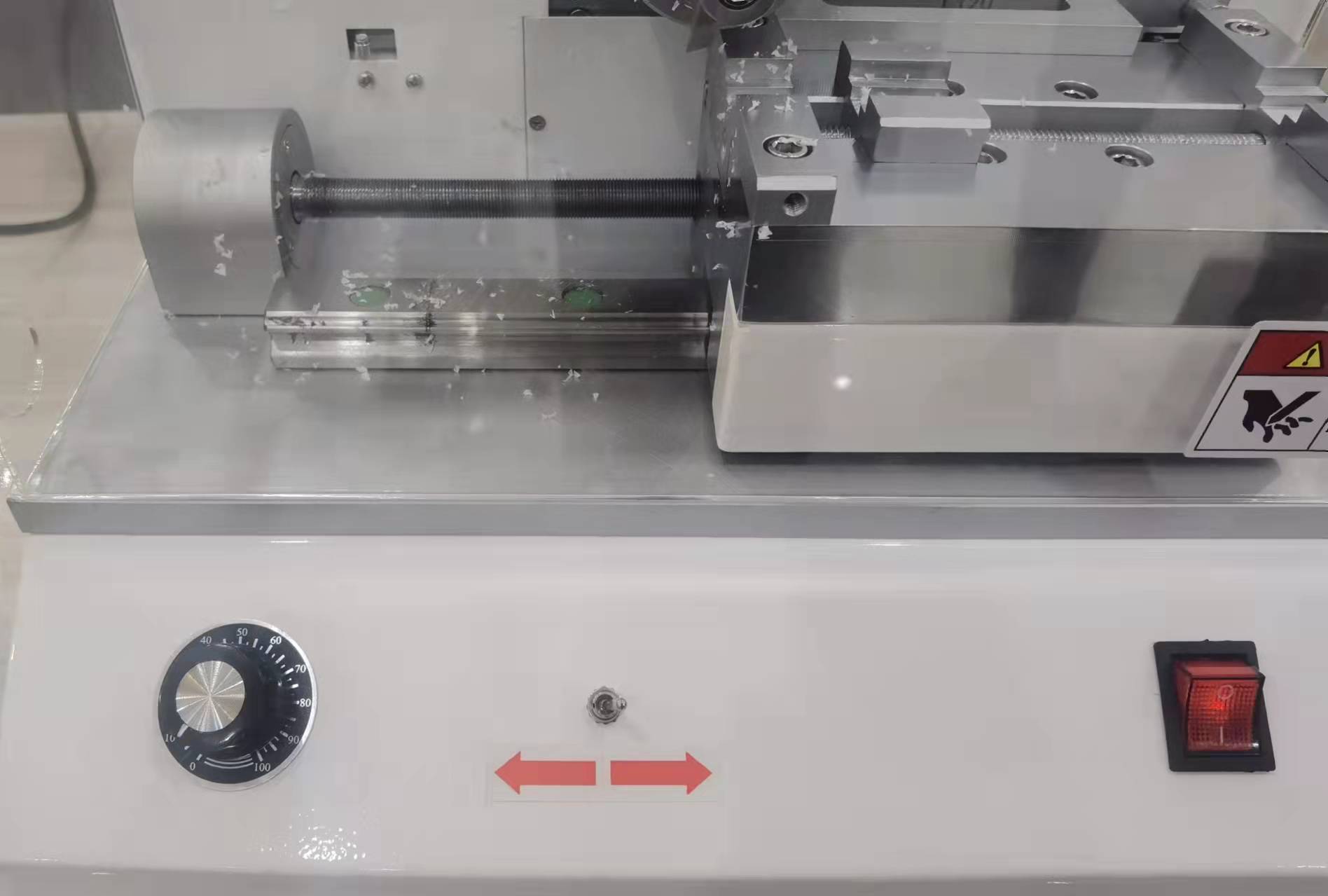

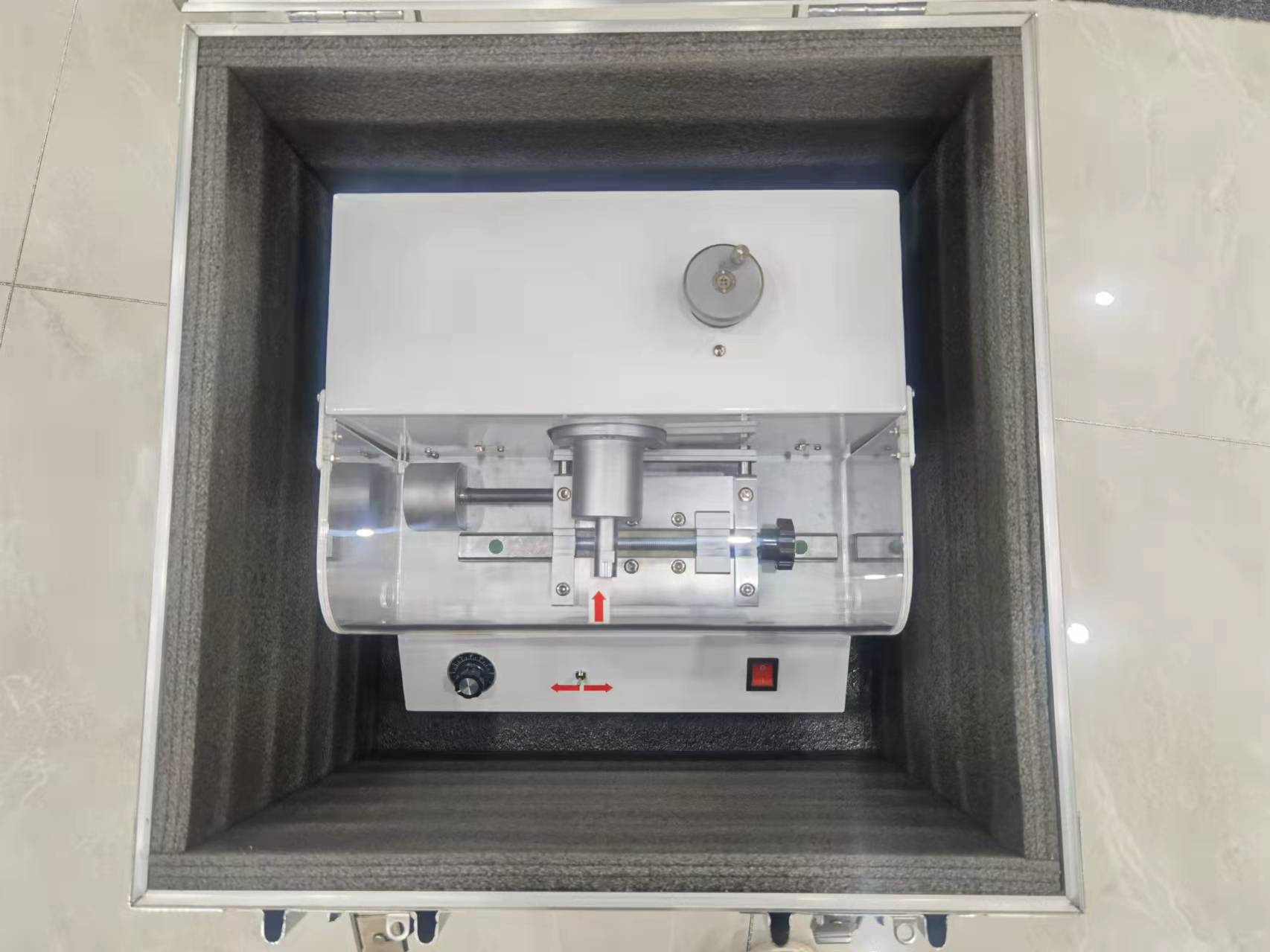

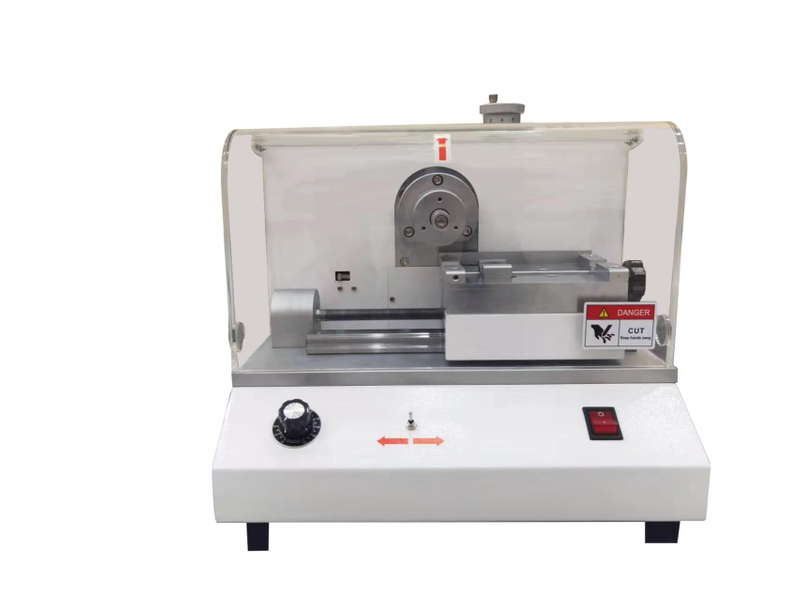

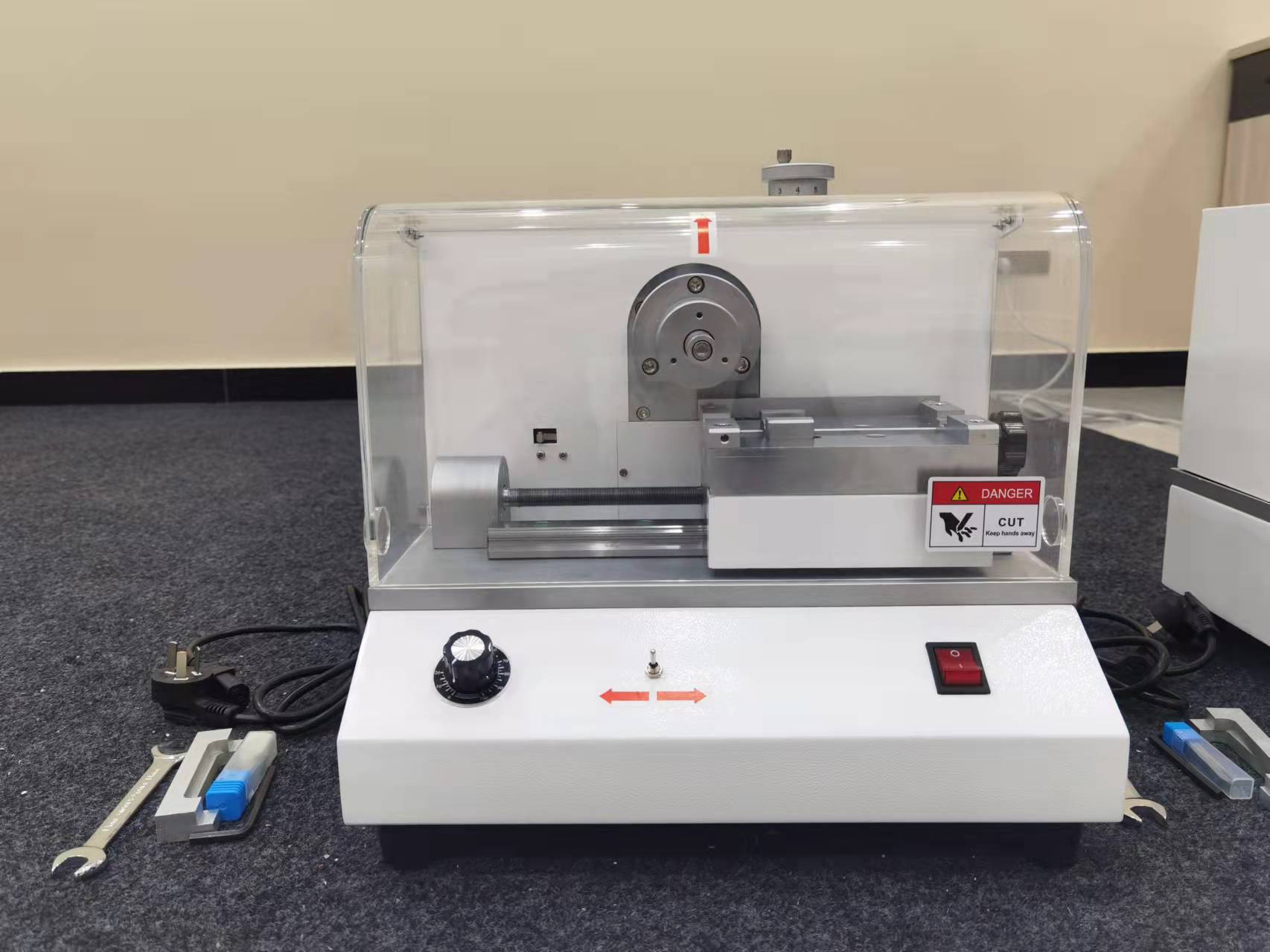

Motorized Notch Maker

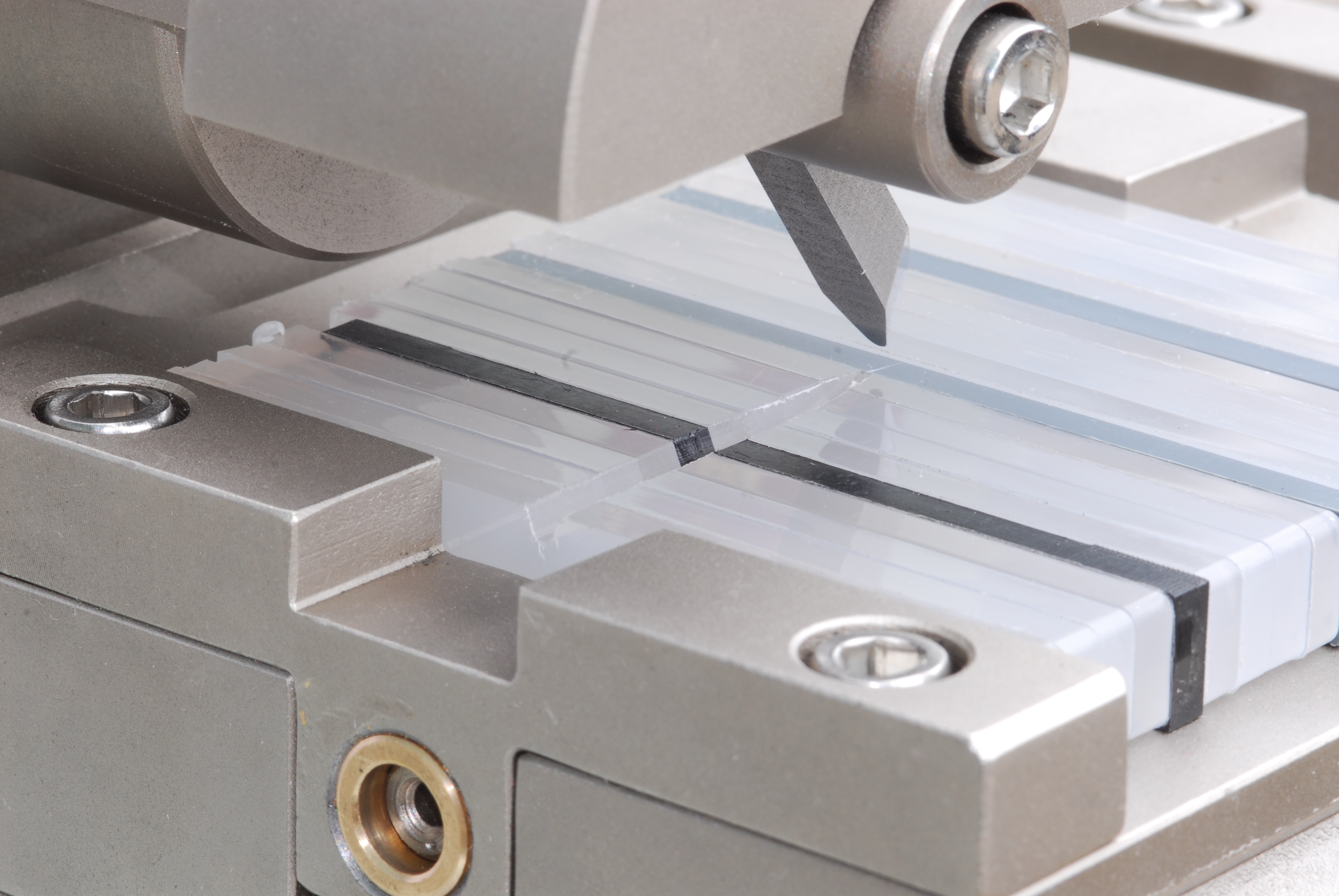

It is designed to notch specimens for Charpy & Izod impact test. 20 specimens may be clamped at one time and at least 60 specimens may be notched in 10 minutes. It allows a perfect reproducibility of the notches, increases working efficiency and reduces the labor intensity.

Main parameters

• Knife stroke: 90mm

• Cutting speed: 30mm/min

• Notch specification: According to the knives’ specification.

• Feed mode: hand feed

• Feed stroke:10mm

• Dimension:400mm (L)×270mm(W)×300mm(H)

• Power supply:220V/50HZ

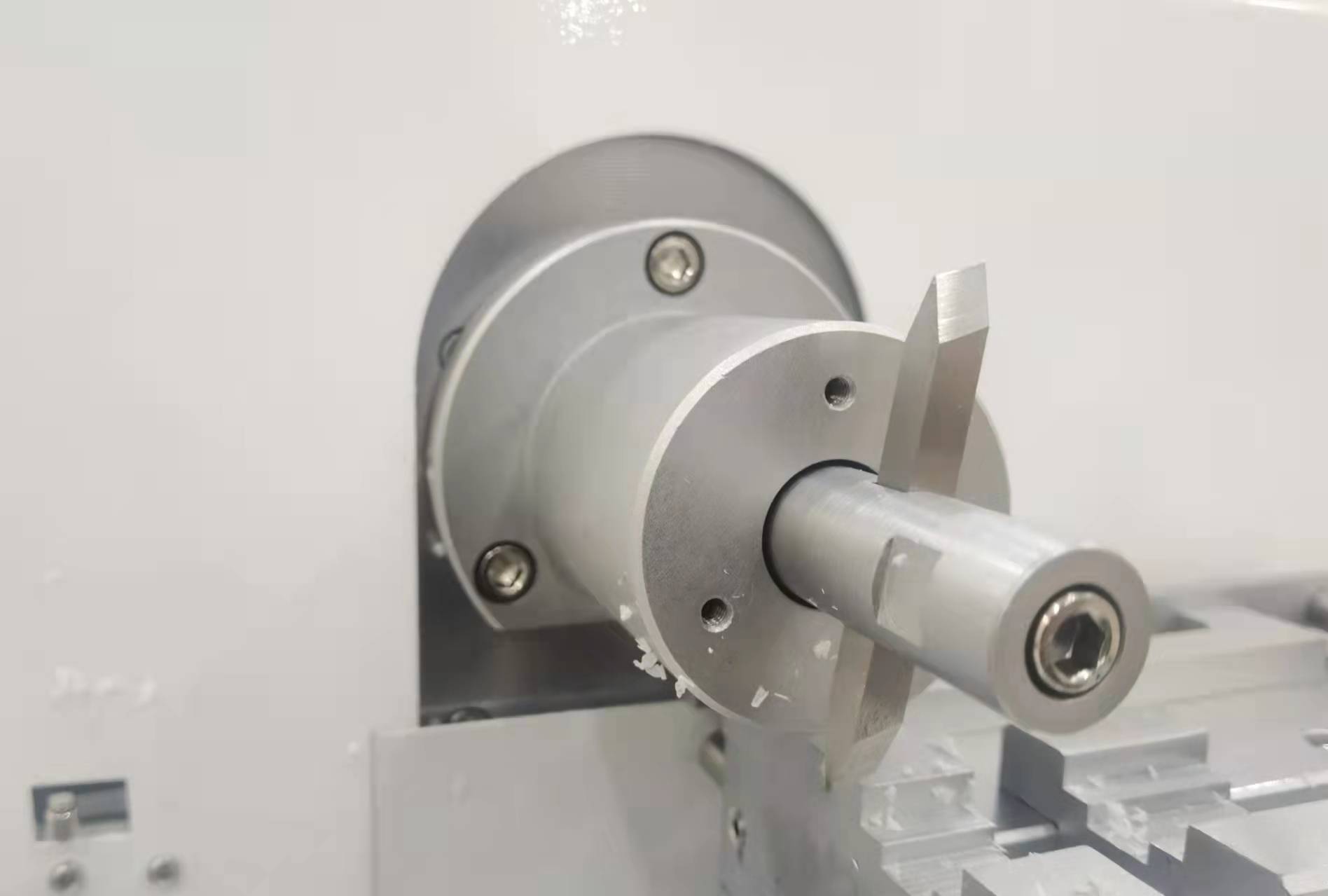

• Knives specifications:

     Type A: 45º±0.2 º  r=0.25mm ± 0.05mm(standard)

     Type B: 45º±0.2º  r=1.00mm±0.05mm(option)
