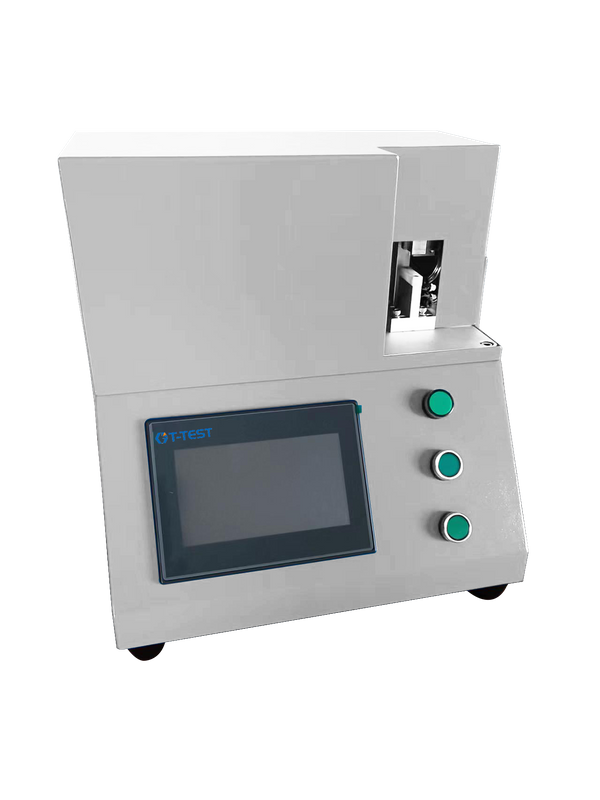

DSC Specimen Slice Maker
Standards
ISO 11357
Application
The maker is designed for making DSC specimens from plastic pipes.
It has the advantages of automatic feeding/cutting/return. Thanks to the unique design, the specimen can be sliced to a constant thickness of (650±100）µｍ and parallel surfaces, be flat without any burrs or scars.
Procedure
1. Put the specimen bar into the clamping position, click “Clamp” button on the screen to clamp the bar sample automatically.
2. Click “Forward” button on the screen to move the bar forward to the cutting position.
3. Click the “Cutting” button on the screen to cut the material automatically.
Technical Parameters
1. Motor speed：3000rpm
2. Knife diameter：Ф4 to Ф6
3. Slice thickness：650um (adjustable)
4. Slice accuracy:±10%
5. Power supply: 220V 50HZ 500W
