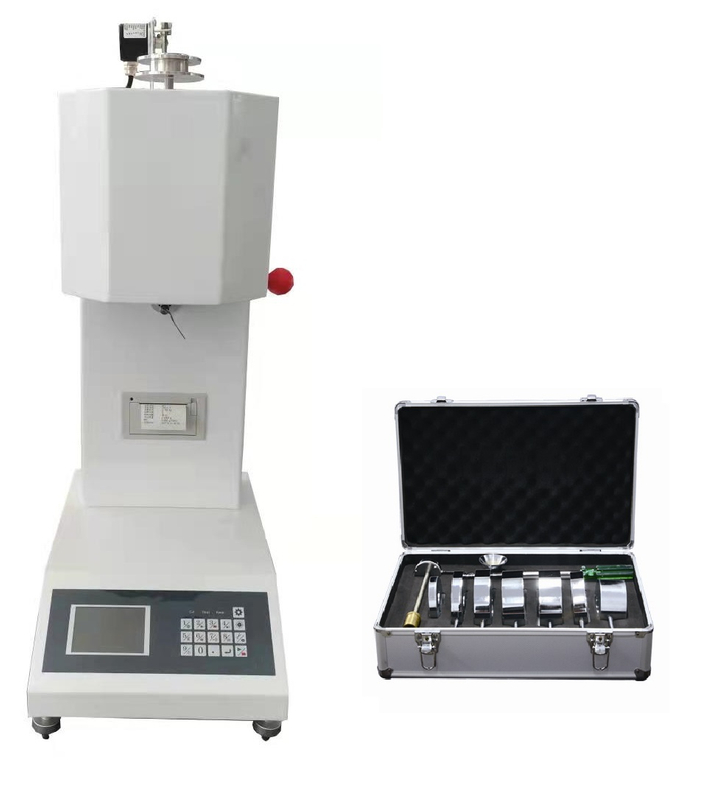

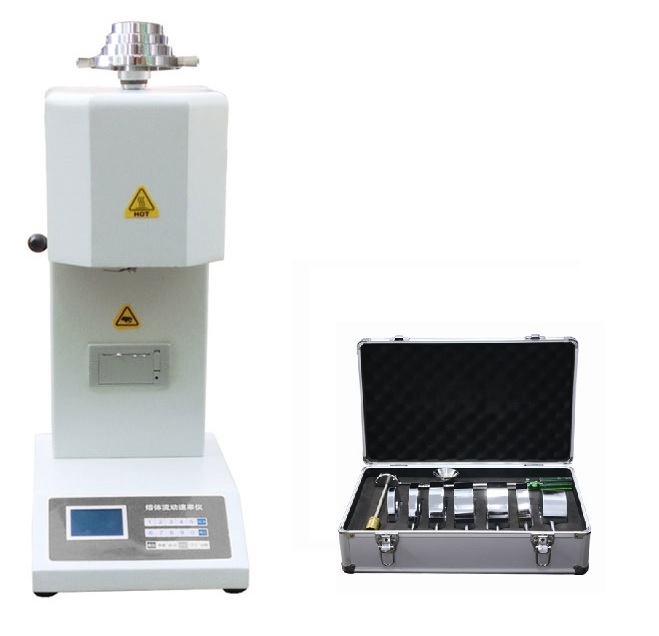

Melt FLow Indexer for PE Granule
Standards
l ISO 1133
l ASTM D 1238
Application
It is a new and affordable tabletop instrument that tests the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc, which is particularly useful for quality control tests on thermoplastics.
Features
l The instrument is with panel for a simple and fast input of the test parameters, visualization of test execution and final results. Also, test result can be print out via a built-in printer.
l Both Melt flow rate (MFR) and Melt volume rate (MVR) can be determined through a calibrated die under the effect of a pre-determined force, at constant temperature.
l Piston displacement monitored by encoder; storing and printing whenever necessary.
l It is supplied completely with all the accessories and weights necessary for maintenance and operation.
Technical Parameters
· Temperature Control Range: 50°C to 450°C
· Temperature Accuracy: +/- 0.2°C
· Temperature fluctuation ± 0.5°C
· Temperature Recovery time:< 4min
· Accuracy of timer: 0.01°C
· Displacement Accuracy: ± 0.02mm
· Measurement range: (1.0g -100g)/10 Min (MFR) / (0.01 -350cm3)/10min(MVR)
· Electrical Requirement: 220V 50HZ/60HZ
