Pneumatic Punching Machine
Standards
ASTM D 638
ISO 527
ISO 6259
ISO 179/ISO 180
Application
It is suitable for the preparation of specimens for a variety of tests. Different cutting knife can be replaced to produce dumbbell specimens, right-angle tear specimens, rectangular specimens, round specimens, etc.
It is applicable for rubber, plastic, leather, paper, film and other materials.
Features

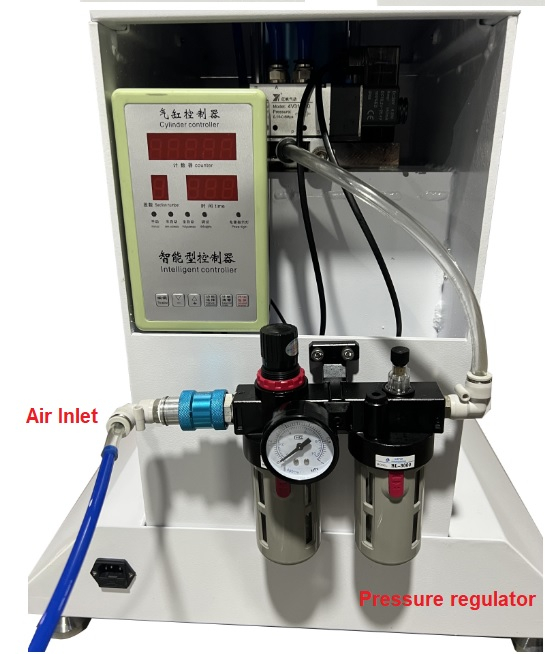

Automatic punching: thanks to the pressure multiplication structure and using standard cylinder as the driving source, the stamping force can reach 50kN, and the maximum thickness of specimen reaches to 10mm.
Protection function: equipped with protective device and key start-up button, to prevent misoperation by the operator.
Varieties of specimen shapes can be made: Equipped with different shapes of cutting knives, different shapes of standard specimens and non-standard specimens can be made easily.
With the functions of simple operation, fast specimen making and high reliability.
Technical Parameters
