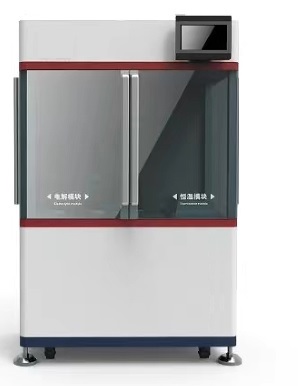

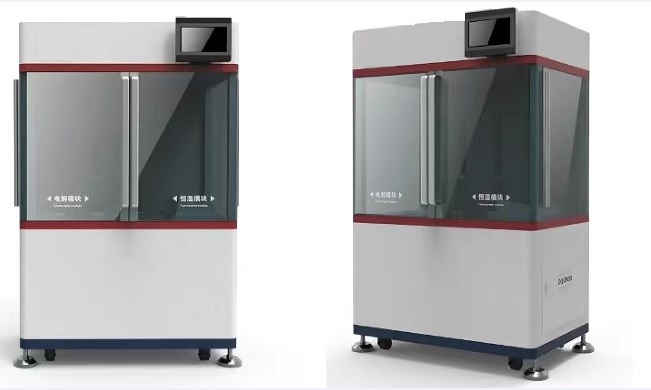

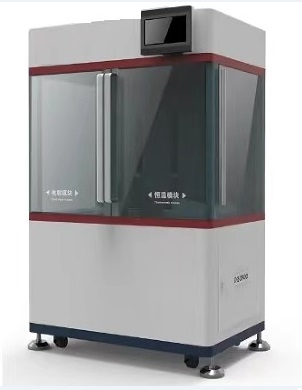

Dynamic Pressure Tester (Water Hammer)
Standards
ISO 10508
EN 12295
Application
Nowadays regulations worldwide require procedures involving dynamic internal pressure load when testing pipes and pipe systems which are intended for hot and cold water or heating installations.
GT-DPT Series are designed to determine the behavior of pipes and connections when subjected to cyclic pressure shock. It can satisfy your testing requirements of plastic pipes, such as PP-R, PP-H, PE, PEX, Composite pipe and fittings which shall not fail when subjected to 10000 cycles under alternating continuously pressure.
Technical Parameters
Cycling pressure: 0.1Mpa to 1.5Mpa
Pressure accuracy: ±0.05Mpa
Cycling times: 0-10000
Cycling times: every 30±5/min.
Time Accuracy: 1s
Pipes diameter: 16-63mm
Test stations: 6
Power supply: 380VAC/220VAC 50Hz
