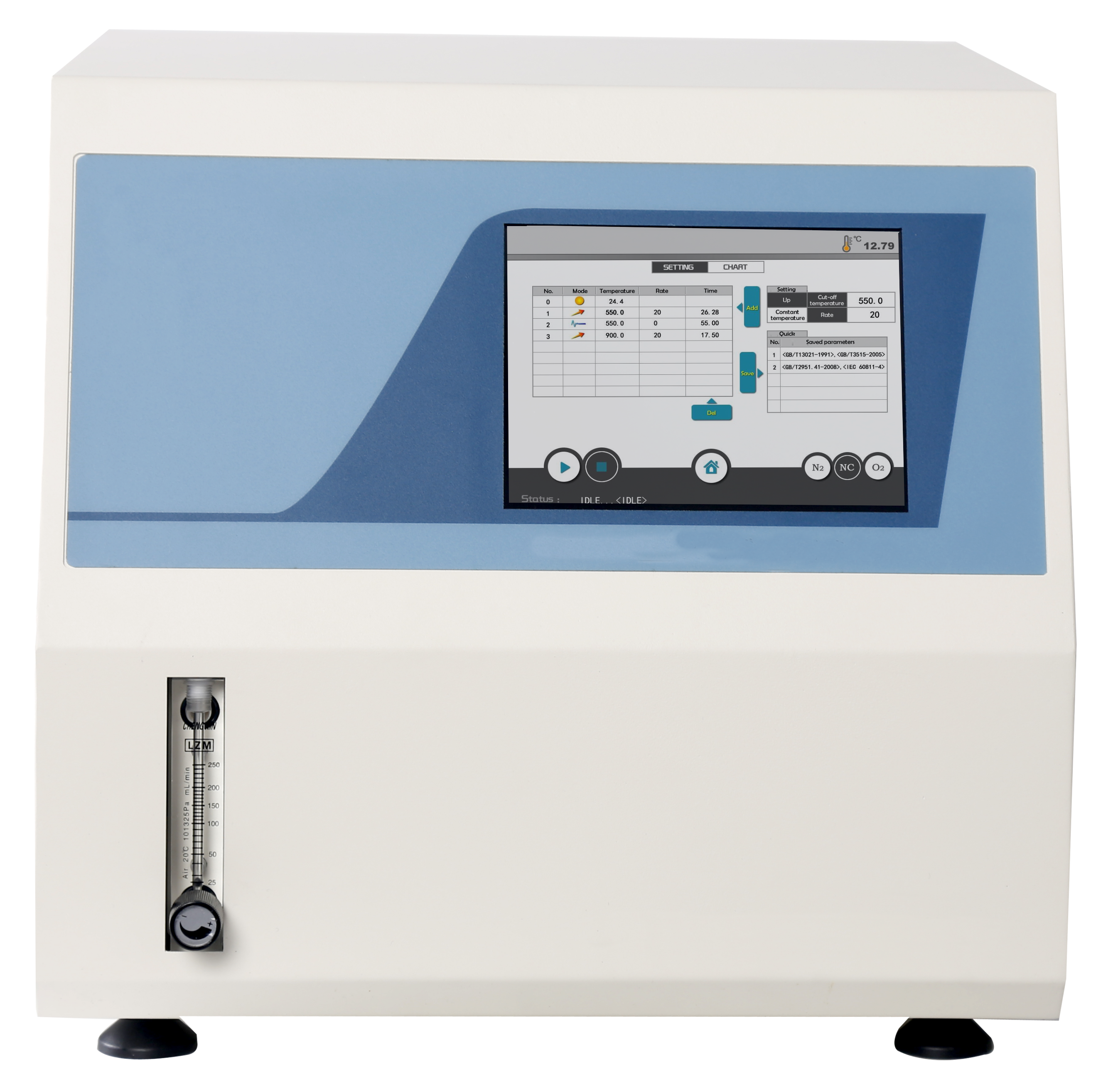

Carbon Black Content Tester
Standards
ISO 6964
GB/T 2951.8 & GB/T 13021
ASTM D 1603
IEC 60811-4-1
Application
It is used to determine the carbon black content in polyethylene, polypropylene and polybutene plastics.
STechnical Parameters
1. Integrated design of heating furnace and control system is convenient operation management.
2. Fully automation, just set temperature and time, system will automatically heat to the set values.
3. High precision of temperature control, wide temperature range, high temperature uniformity in the furnace.
4. 8” friendlily operation touch screen interface, may start a test by one-key operation.
5. May set multiple groups of heating time periods, with different heating temperature, heating rate and constant temperature time.
6. With comprehensive parameters, including test groups, theoretical temperature, actual temperature, heating time or constant temperature time.
7. During the test procedure, may check the setting parameters.
8. Thanks to new insulation material, which achieves the excellent thermal insulation effect and the finance high uniformity.
Technical Parameters
1. Temperature: room temperature to 1000 ℃
2. Furnace tube size: Ф 30 mm X 300 mm
3. Heating element: resistance wire
4. Display mode: 8” touch screen
5. Oxygen/Nitrogen valve opening: manual
6. Power supply: AC220V/50HZ/60HZ 1KW
Standard Configuration
1. Main frame
2. Burning boat tray
3. Power cord
4. Burning boats
5. Operations video
6. Oxygen airway, nitrogen airway and exhaust airway
7. Operation manual
