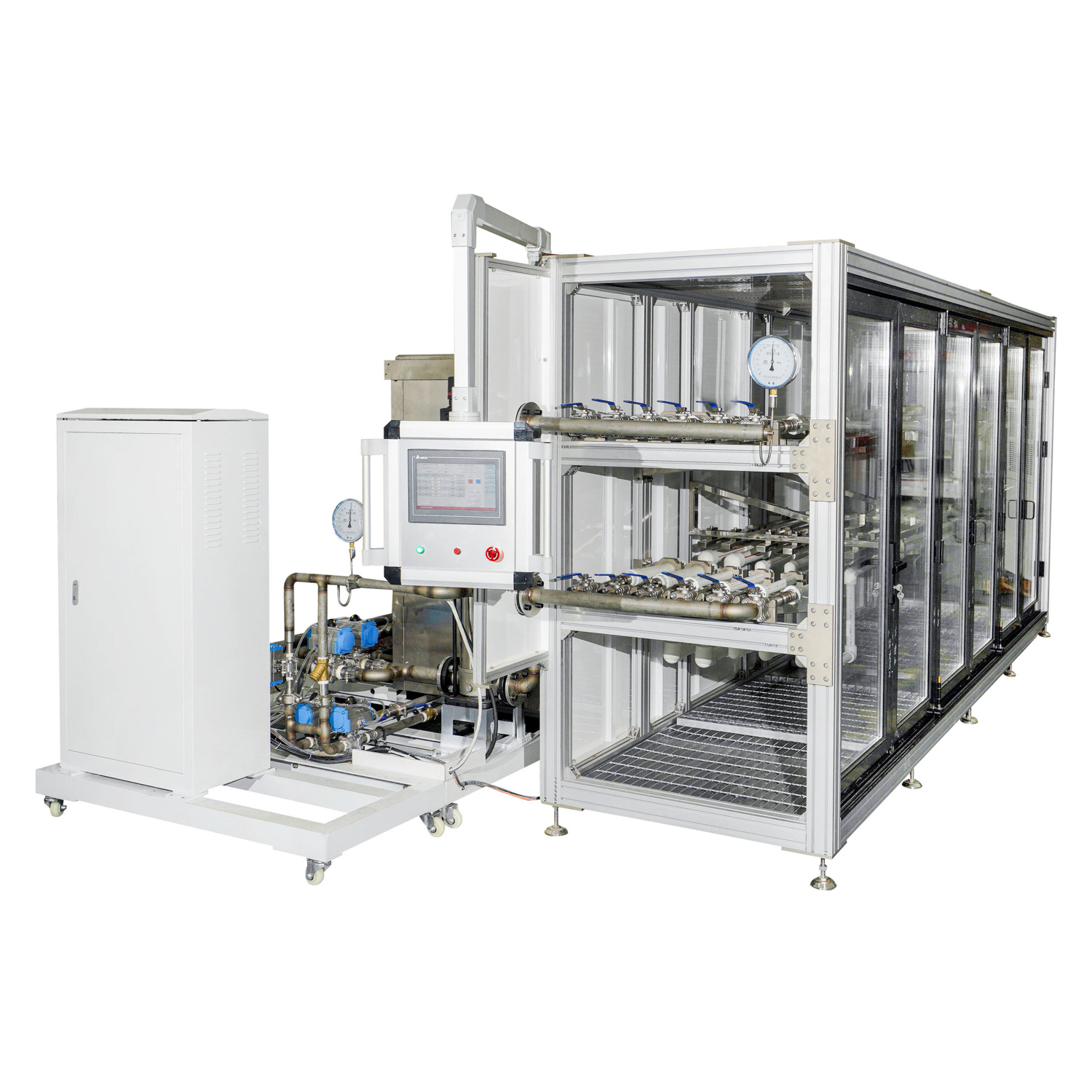

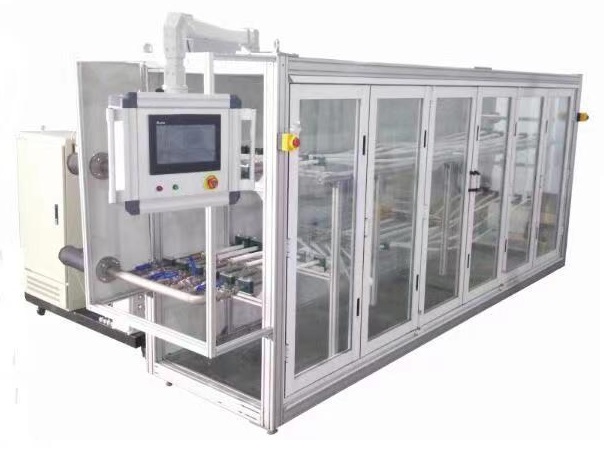

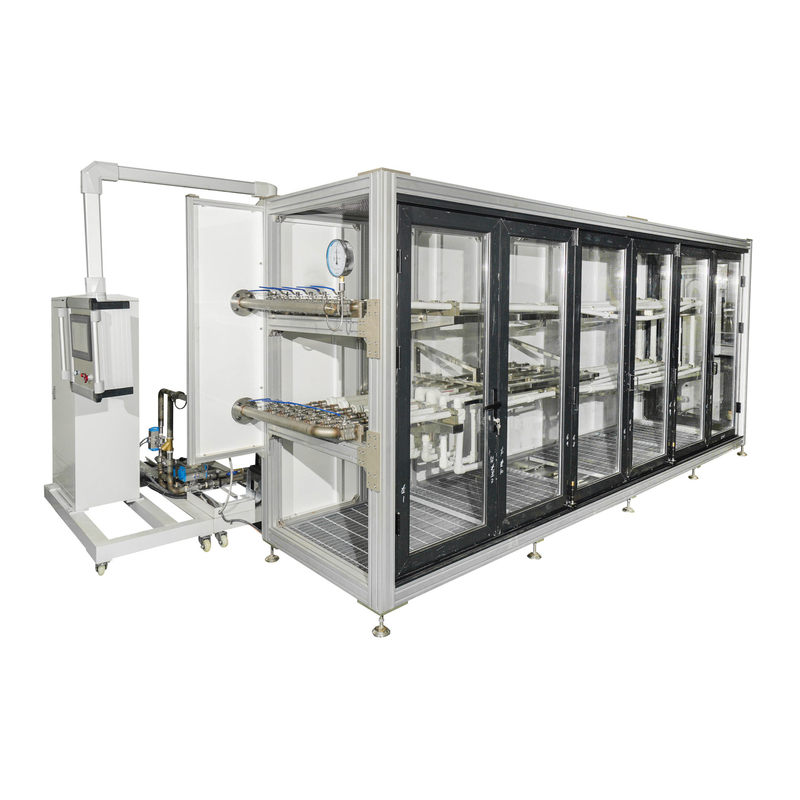

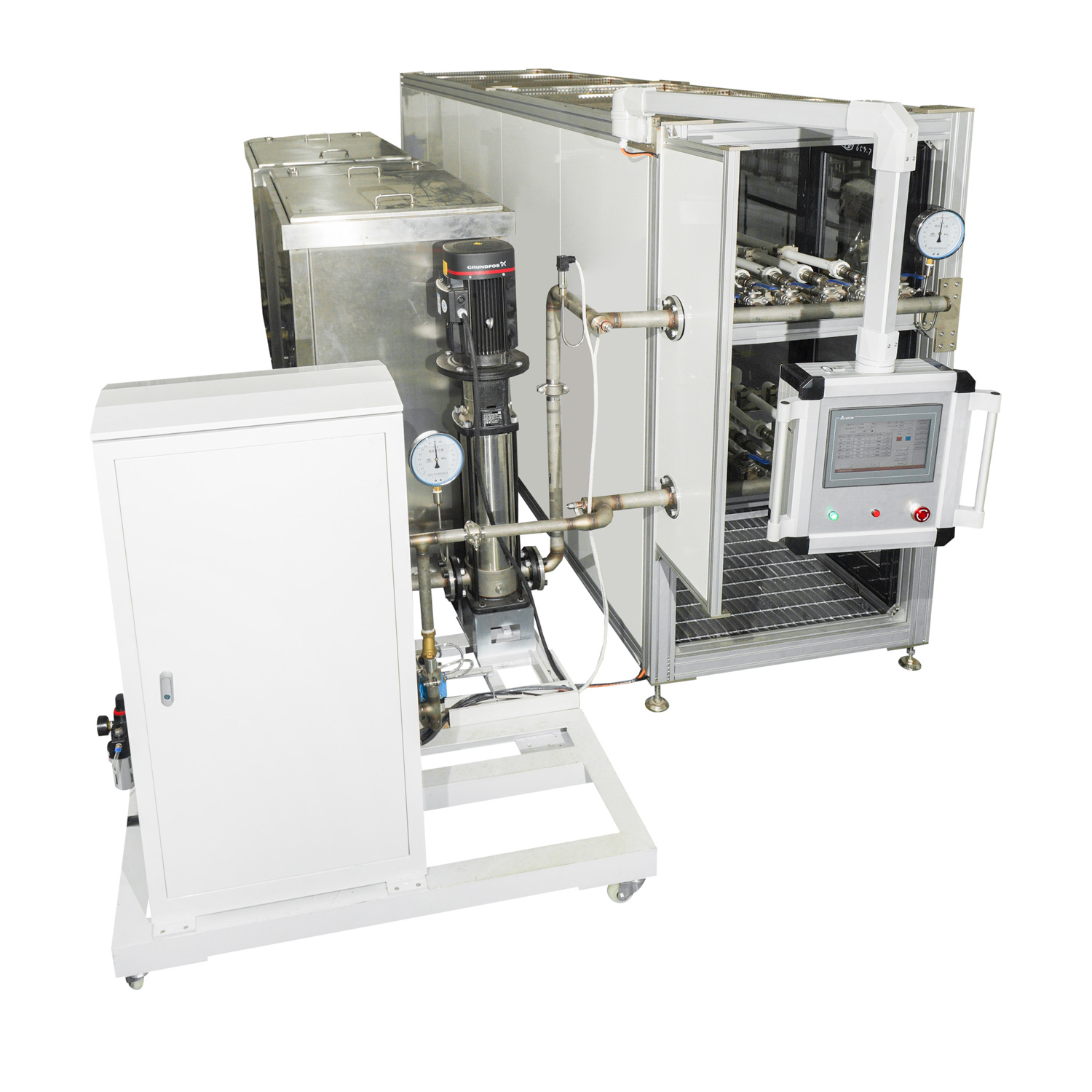

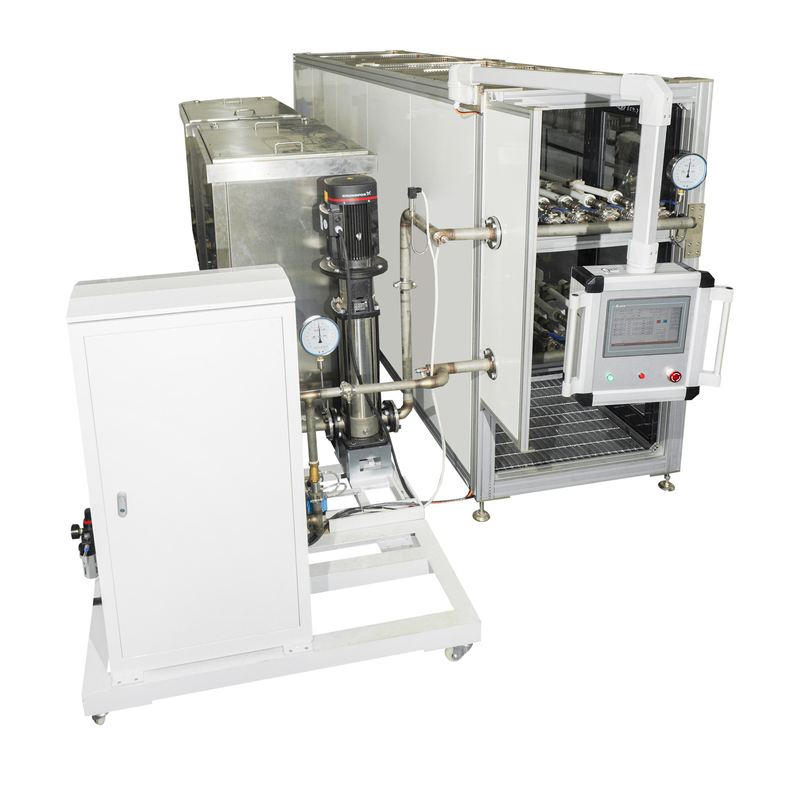

Temperature Cycling Test Unit
Standards
Application
The Hot and cold water cycling tester is mainly used to determine the leakage status of composite pipes & fittings when subjected to specified cycling times under specified internal pressure load.
Product Composition
• Sample chamber
• Good quality 304 SUS cold water tank (with chiller & heat exchanger)
• 316 SUS hot water tank with good quality heating elements
• Electric control system
• Flow measurement (option)

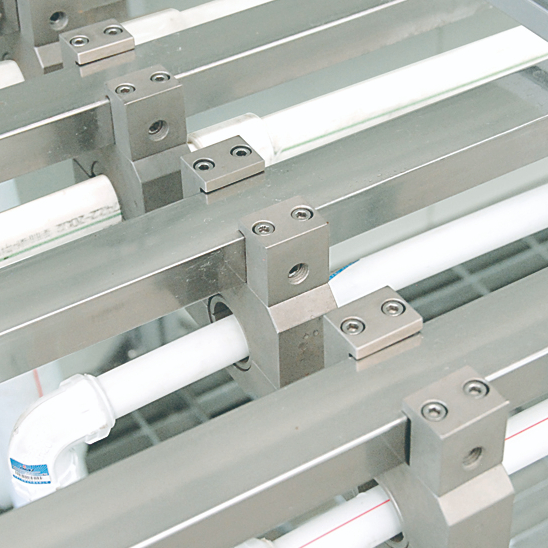

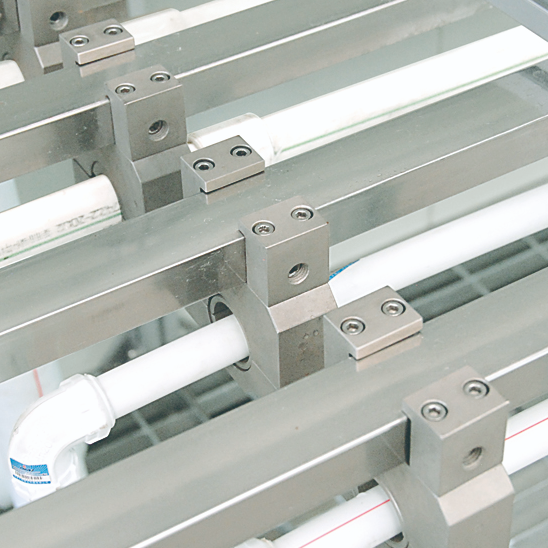

• Pre-tension loading system (option)
Features
• Open structure: high temperature and high pressure only exists in the specimens.
• Multiple safety protection: Liquid level protection, transparent shield, perfect prompt function, unique water flow control, maintenance-free control valve and Intelligent water replenishment.
• Automatically identify the fault and give prompt information
• Good quality 304 SUS cold water tank (with chiller & heat exchanger)
• 316 SUS hot water tank with good quality heating elements
• With the optional functions of flow measurement and tensioning device
Technical Parameters
Pressure range (bar) | 4 to 11 |
Pressure control accuracy (bar) | ±0.2 |
Number of test stations | 6 |
Maximum pipe diameter (mm) | 2 X 63 |
Cycle numbers | 1 to 100000 |
Temperature of cold water tank (℃) | 15 to RT (±2℃), 800L |
Temperature of hot water tank(℃) | 60 to 95（±1℃), 800L |
Display | Touch screen |
Control | PLC |
