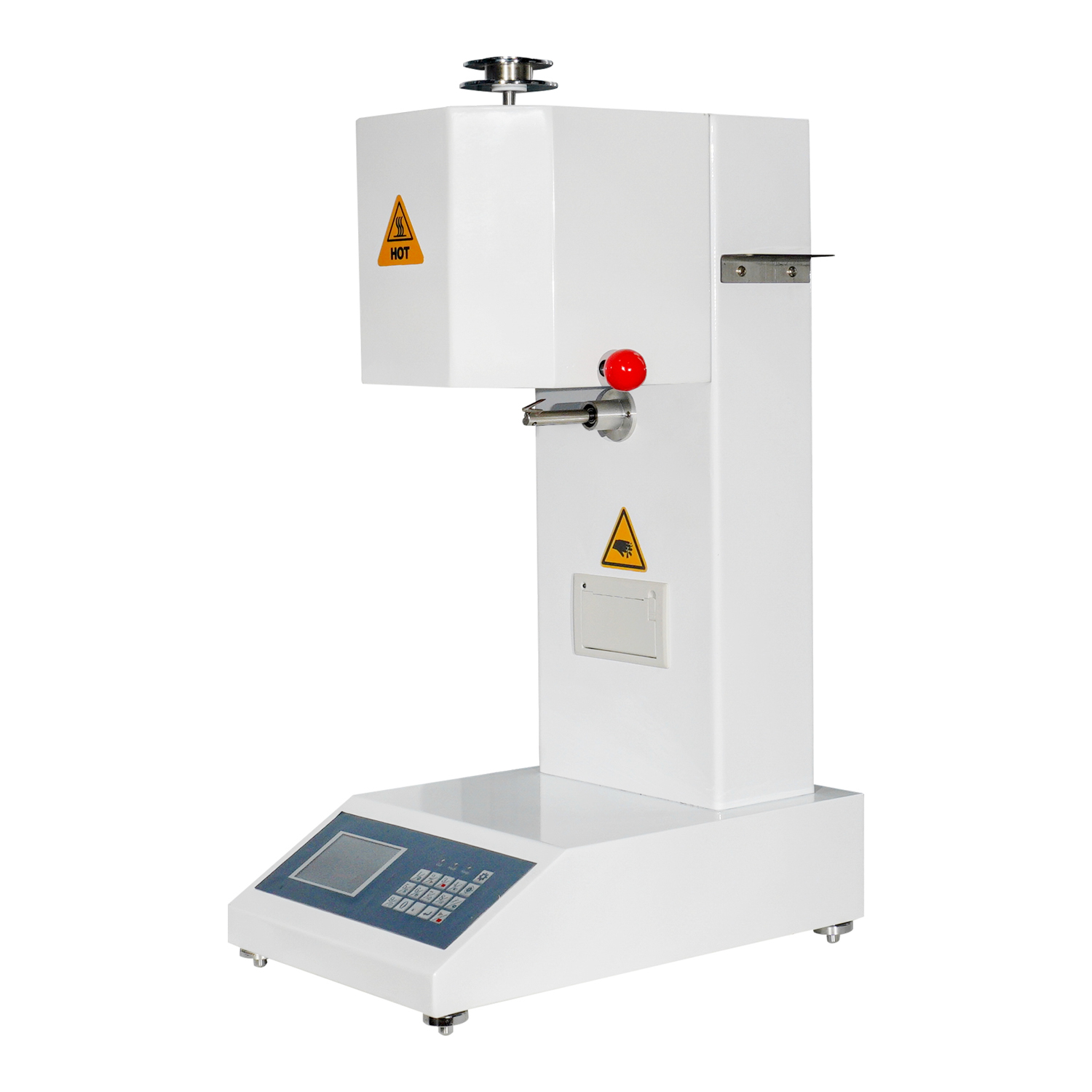

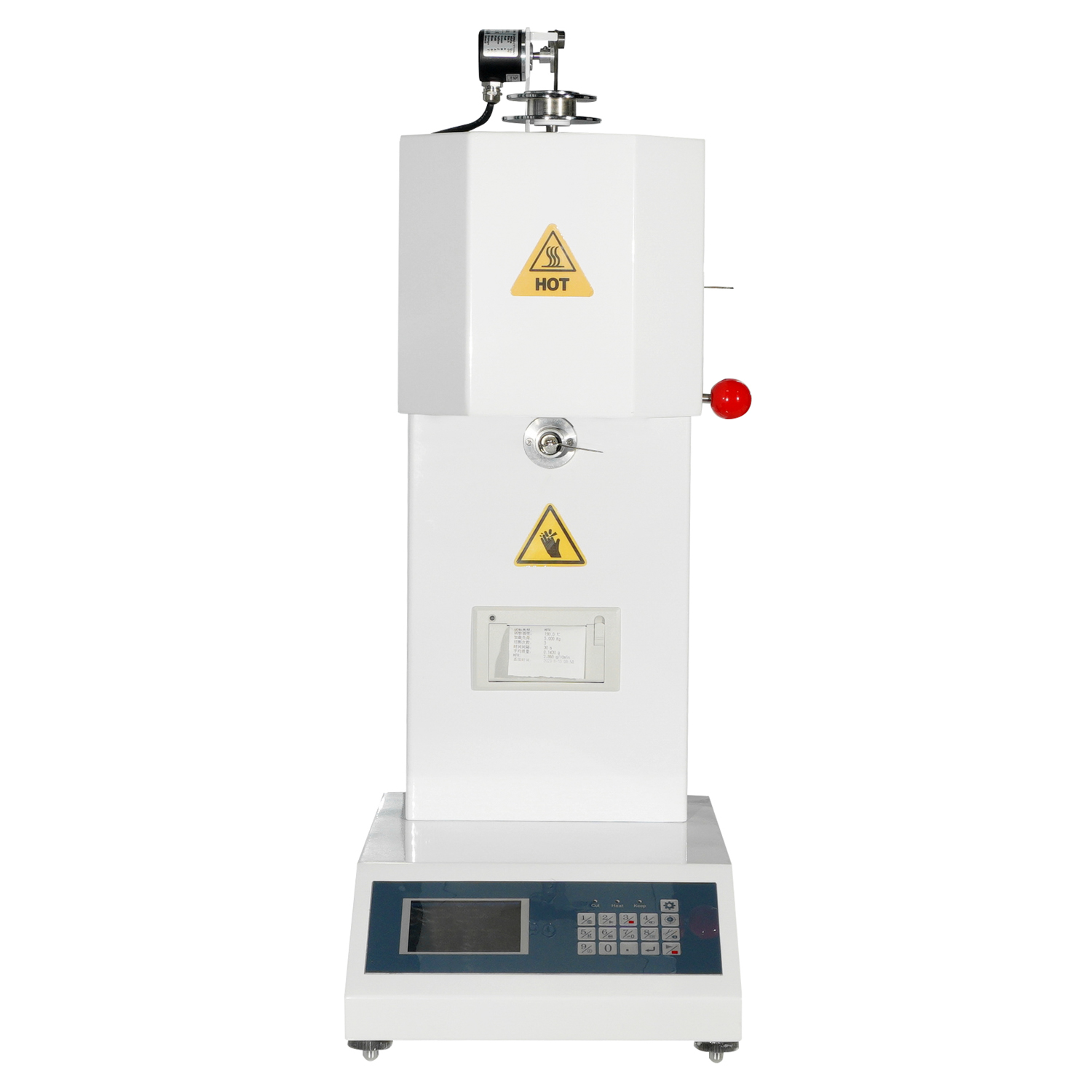

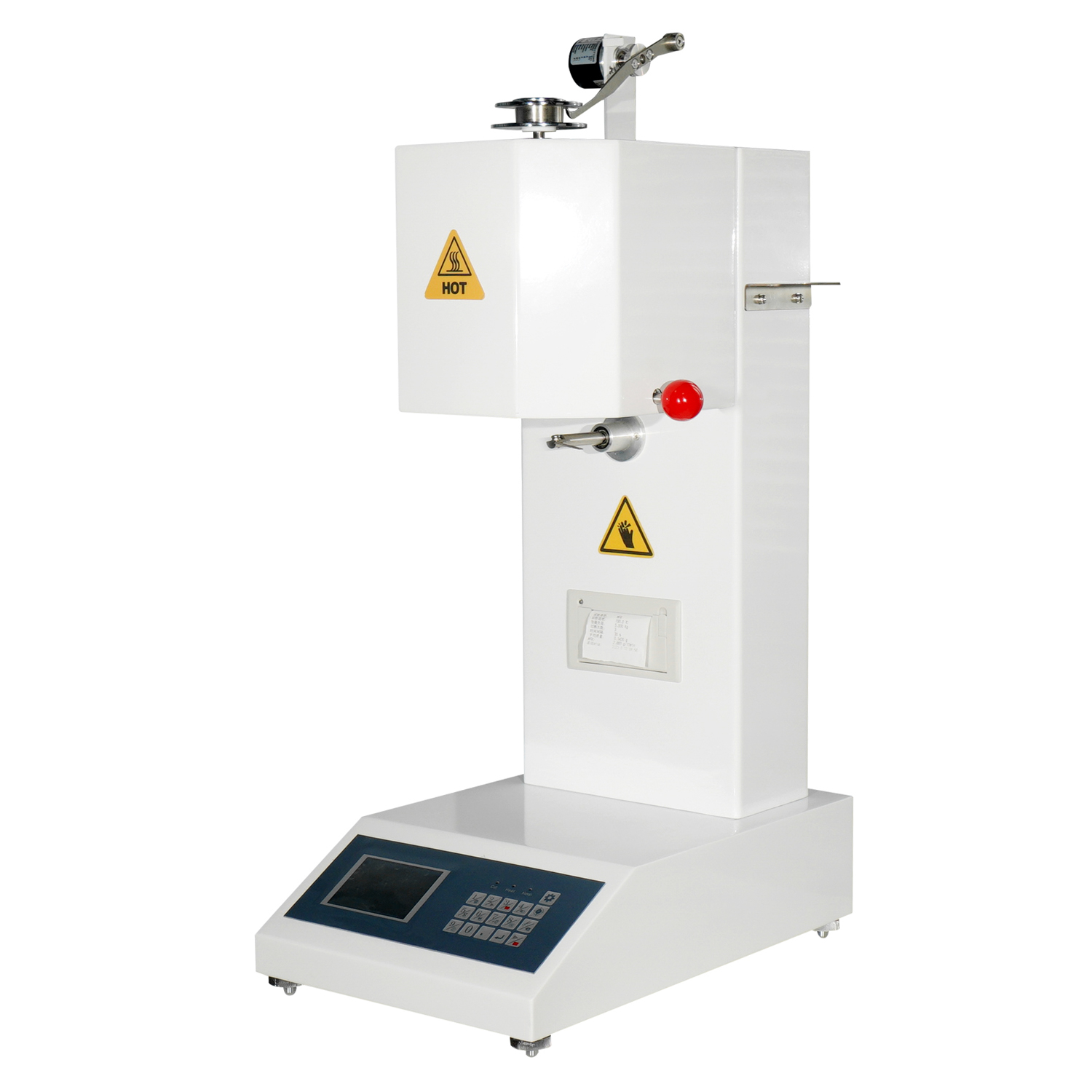

Melt Flow Indexer GT-MFI-450A
Standards
l ISO 1133
l ASTM D 1238
Application
This type of Melt Flow Indexer is a new and affordable tabletop instrument that tests the melt mass-flow rate (MFR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc. This test method is particularly useful for quality control tests on thermoplastics.
Features

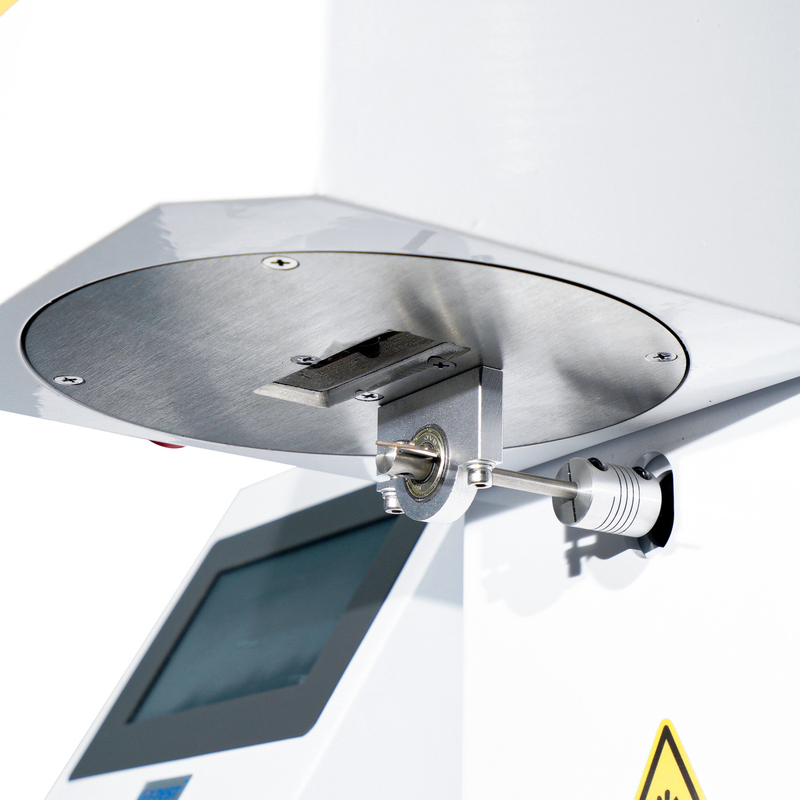

l High Accuracy! The built-in microprocessor maintains temperature control to within ± 0.5℃, with rapid ram-up to the set point. Extruded material is automatically cut off by the built-in scraper mechanism at preset intervals, controllable to ± 0.1second.

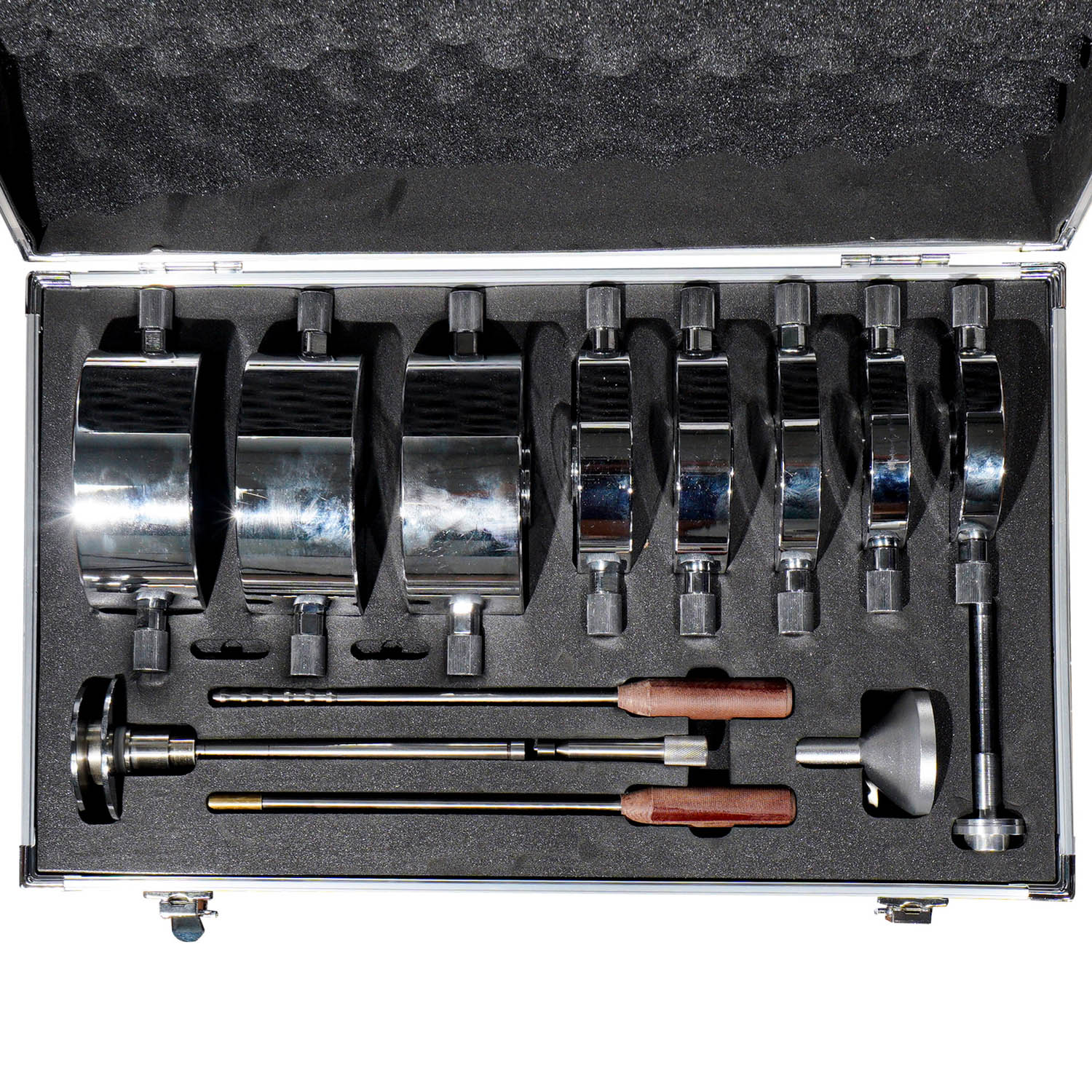

l Ease to operate! Testing Melt Flow Rate has never been so economical or easy to do! The tester is supplied completely with the accessories and weights necessary for maintenance and operation. Nothing else to buy--just plug it in and start a test.
Technical Parameters
· Temperature Control Range: 50°C - 450°C
· Temperature Accuracy: +/- 0.5°C
· Temperature rising time < 30min
· Temperature fluctuation ± 0.5°C
· Temperature display error ≤±0.2°C
· Temperature Recovery time:< 4min
· Accuracy of timer: 0.01°C
· Measurement range : 1.0g -100g/10 Min (MFR)
· Electrical Requirement: 220V 50HZ/60HZ
