Plastic pipe manufacturers face mounting pressure to maintain strict quality control standards without creating production bottlenecks on high-speed extrusion lines. The tension between absolute compliance—specifically meeting ISO 7686 for light transmission—and the inefficiencies of traditional manual testing methods forces plant managers to reevaluate their QA workflows. Manual testing introduces human error, creates data silos, and slows down the entire release process. The industry is shifting toward automation to solve these operational challenges. Upgrading to a digital opacity tester for plastic pipes offers a technical advantage for high-throughput facilities. This evaluation covers the mechanics, scalability, and data handling capabilities of digital versus manual pipe opacity testing to help you determine if automation aligns with your production volume and compliance demands.
Accuracy vs. Subjectivity: Digital opacity testers eliminate human interpretation errors, providing highly repeatable photometric data critical for strict compliance audits.
Data Integrity: Automated systems instantly log results to LIMS/ERP systems, removing the risk of transcription errors and ensuring immediate traceability.
Lot Coverage & Risk Mitigation: Manual testing limits QA to tiny sample subsets due to time constraints, whereas automated systems enable broad-coverage testing of every extrusion run, significantly reducing liability.
Scalability Thresholds: Manual testing remains viable for low-volume or R&D environments, but high-throughput facilities face diminishing returns due to labor costs and testing bottlenecks.
The Role of Opacity Testing in Plastic Pipe Manufacturing
Opacity testing verifies that plastic pipes block enough light to prevent algae growth. This parameter is non-negotiable for potable water systems. It also serves as a primary indicator of proper carbon black dispersion. Adequate dispersion ensures UV resistance for pipes exposed to direct sunlight during storage or installation. Meeting these success criteria prevents catastrophic field failures and product recalls.
International standards dictate strict requirements for determining the degree of light transmission in plastics pipes and fittings. ISO 7686 is the primary benchmark. Auditors look for documented proof of test repeatability, precise calibration records, and unalterable data logs. They want to see that the testing environment does not influence the final reading. If your QA lab relies on slow testing methods, it quickly becomes a choke point.
When testing speed fails to match extrusion line output, manufacturers are forced to hold inventory. Holding inventory takes up valuable floor space and delays shipping. Alternatively, shipping unverified batches introduces massive liability. A single failed batch discovered post-installation can ruin a manufacturer's reputation. Therefore, the speed and accuracy of the opacity test directly impact the factory's overall throughput and risk profile.
To understand the bottleneck, you have to look at the extrusion process. Modern lines run at incredibly high speeds. A line producing small-diameter HDPE pipe might output hundreds of meters per minute. If the QA lab takes thirty minutes to prepare, test, and log a single sample manually, they are only verifying a fraction of a percent of the total run. This discrepancy between production speed and testing speed is the core problem driving the need for better testing infrastructure.
Furthermore, the physical properties of the pipe can change during a run. Variations in raw material batches, slight temperature fluctuations in the extruder barrel, or minor changes in haul-off speed can alter the wall thickness or carbon black distribution. Continuous or high-frequency testing is the only way to catch these mid-run variations before thousands of meters of non-compliant pipe are spooled or cut.
Manual Opacity Testing: Mechanics, Viability, and Limitations
The traditional manual workflow involves several labor-intensive steps. Technicians cut sample specimens from the production line. They physically insert these specimens into a test chamber. They then read analog or basic digital gauges to determine light transmission. Finally, they manually record the values onto paper logs or type them into a spreadsheet. This process relies entirely on human execution.
Physical alignment variance is a major issue. If the sample is not perfectly perpendicular to the light source, the reading will be inaccurate. Operator eyesight differences also play a role when reading analog gauges. Fluctuating laboratory lighting conditions can bleed into poorly sealed manual test chambers, creating unstable baseline results. Two technicians testing the exact same pipe sample might record different opacity values.
Despite these flaws, manual testing remains appropriate in specific scenarios. Low-volume specialty runs do not require high-frequency testing. Early-stage product development labs often prioritize flexibility over speed. Facilities with highly constrained initial capital and low labor costs might also stick with manual methods temporarily.
However, manual testing carries hidden operational risks. Operator fatigue during long shifts leads to subjective and often inaccurate readings. Time lost to manual data entry, physical logging, and cross-checking reduces the number of tests a technician can perform per shift. The compliance hazard of limited sampling is severe. Manual testing restricts QA to a tiny fraction of a production run, leaving manufacturers blind to mid-batch variations.
Consider the data entry aspect. A technician writes down a value of 0.15% transmission. Later, someone types that into a database as 1.5%. That simple transcription error changes a passing result into a failing one, or worse, vice versa. Tracking down these errors during an audit is a nightmare. It requires digging through physical paper trails and cross-referencing timestamps with production logs.
The physical preparation of the sample is also prone to error in manual setups. If the cut is jagged or the surface is scratched during handling, it can scatter light and produce a false reading. Manual test chambers often lack the sophisticated clamping mechanisms needed to hold the sample perfectly still and flat, further compounding the alignment issues mentioned earlier.
The Shift to Automation: Mechanics of a Digital Opacity Tester for Plastic Pipes

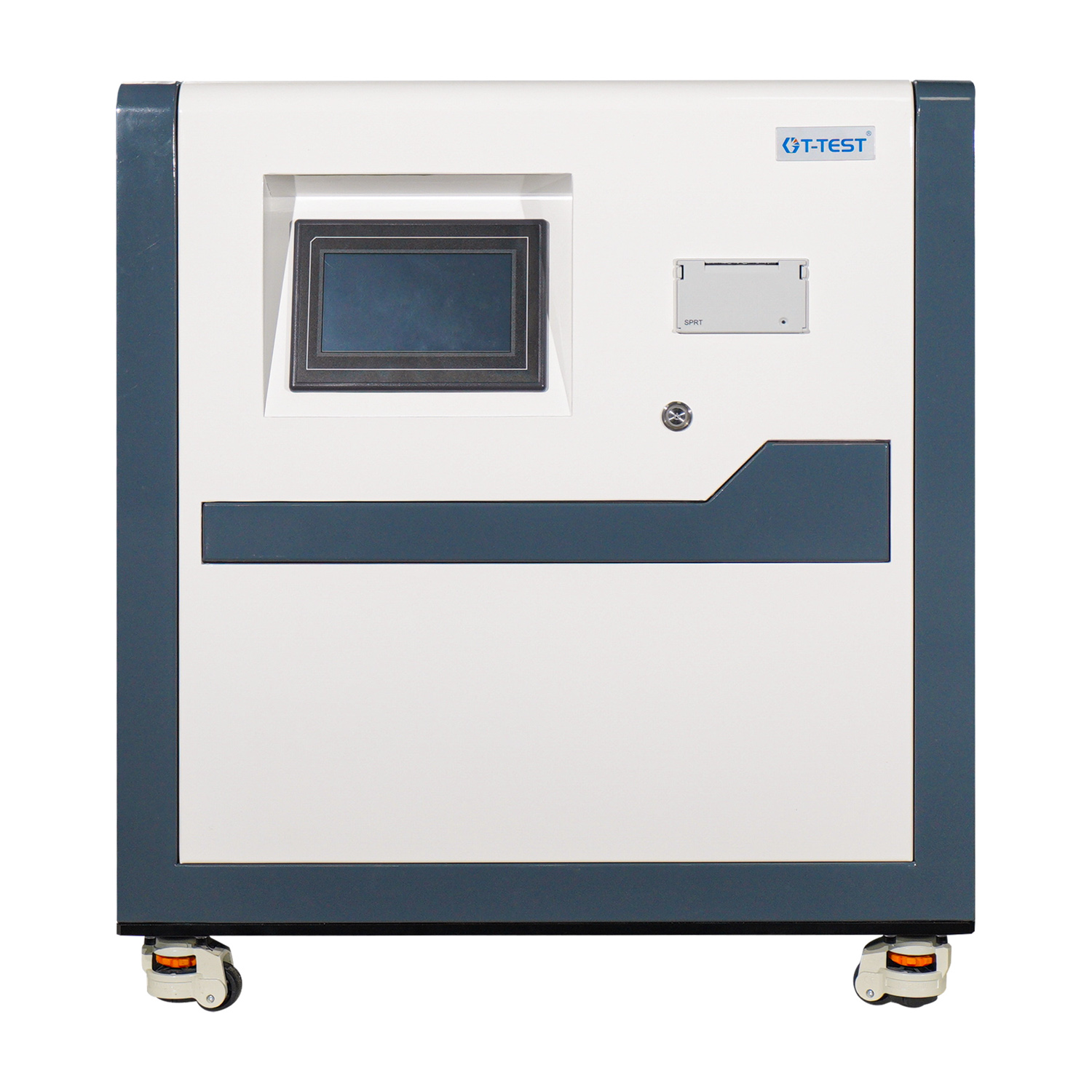

A modern digital opacity tester for plastic pipes utilizes advanced photometric sensors. It features automated sample carousels and stabilized precision light sources. Once the operator loads the sample, the system handles the entire testing cycle with minimal intervention. This removes physical sample-handling bias. It ensures the light source hits the specimen at the exact required angle every single time.
Digital automation allows for rapid, sequential batch-run testing. This mimics continuous QA monitoring of active extrusion lines. Instead of testing one sample per shift, technicians can load a batch of samples into a carousel and walk away. The machine automatically indexes each sample, takes the measurement, and logs the data.
The built-in software architecture is a massive upgrade. It handles automatic calculations and pass/fail flagging based on pre-set ISO parameters. It features direct API integrations with existing QA databases. This eliminates the need for manual data entry entirely. The data flows directly from the sensor to the Laboratory Information Management System (LIMS).
Let's break down the hardware. The light source in a digital unit is typically a highly stable, long-life LED or halogen lamp, calibrated to a specific color temperature. The sensor is a precision photodiode matched to the human eye's spectral response, as required by many standards. The internal chamber is completely light-tight, eliminating any interference from ambient laboratory lighting.
The software interface provides real-time graphing and statistical analysis. Operators can see trends developing over time. If the opacity is slowly drifting toward the failure limit, the software can trigger an early warning alarm. This allows the extrusion operator to adjust the carbon black dosing or line speed before the pipe actually fails the specification.
Automated systems also include self-diagnostic routines. Before every test cycle, the machine can check its own baseline reading against a known standard. If the baseline has drifted due to dust on the optics or lamp degradation, the system will prompt the operator to perform maintenance or recalibrate. This ensures that every recorded data point is accurate and defensible.
Head-to-Head Evaluation: Digital vs. Manual Testing
Repeatability and Measurement Accuracy
Manual operator readings inherently contain variance. A digital optical sensor provides standardized, calibrated consistency. High repeatability reduces false positives, which cause unnecessary scrap. It also reduces false negatives, which allow defective products to reach the market. When you remove the human eye from the measurement process, you eliminate the largest source of error.
In a manual setup, the technician must visually confirm that the sample is seated correctly. In a digital system, precision-machined fixtures and optical alignment sensors guarantee perfect positioning. This mechanical repeatability ensures that the light beam passes through the exact center of the sample wall every time, providing a true representation of the pipe's opacity.
Test Coverage and Statistical Representation of Batches
Manual methods often limit batch coverage to one sample per day due to time constraints. Automated digital testing enables broad, high-volume coverage. Increased testing frequency improves the statistical reliability of your quality guarantees. It provides a clearer picture of the entire extrusion run, rather than just a snapshot of the beginning and end.
By testing more frequently, you build a robust statistical process control (SPC) model. You can calculate standard deviations and process capability indices (Cpk) with confidence. This data is invaluable when negotiating contracts with large municipalities or utility companies, as they often require detailed SPC reports to prove consistent manufacturing quality.
Throughput and Scalability
The time-per-test difference between manual execution and automated cycling is significant. Automation allows a single QA technician to manage multiple testing stations simultaneously. You can scale your QA capacity to match faster extrusion speeds without a linear increase in headcount. This is critical for plants looking to expand their production lines.
Consider a facility running ten extrusion lines. A manual testing protocol might require three dedicated QA technicians per shift just to keep up with the minimum sampling requirements. With automated carousels, one technician can load samples from all ten lines, start the test cycles, and then move on to other tasks like burst testing or dimensional checks.
Data Handling, Traceability, and Audit Readiness
Manual paper trails and disconnected spreadsheets are vulnerable to loss and manipulation. Automated systems generate time-stamped, immutable digital logs. This automated data handling proves invaluable during an unexpected compliance audit or a customer quality dispute. The data is secure, searchable, and instantly accessible.
When an auditor asks for the opacity records for a specific lot number produced six months ago, a manual system requires digging through filing cabinets. An automated system allows you to pull up the exact test report, complete with calibration records for the machine on that specific day, in seconds. This level of traceability builds immense trust with regulatory bodies.
Here is a breakdown of how data handling differs between the two methods:
Feature | Manual Testing | Digital Automated Testing |
|---|
Data Entry | Handwritten logs or manual typing | Direct sensor-to-database transfer |
Error Rate | High risk of transcription errors | Zero transcription errors |
Audit Trail | Physical paper, easily lost or damaged | Immutable, time-stamped digital records |
Trend Analysis | Requires manual data aggregation | Real-time dashboarding and SPC charts |
Integration | None | API, SQL, CSV export to LIMS/ERP |
Implementation Realities and Adoption Risks
The Migration Pathway: Transitioning from Manual to Digital Testing
Transitioning QA operations from legacy manual benches to an automated system requires a structured approach. You must avoid disrupting active production. The most effective method is running parallel tests. You use both manual and digital methods concurrently during the validation phase.
Install the digital tester in a clean, temperature-controlled area of the QA lab.
Train a core group of lead technicians on the new software and hardware.
Run samples through the manual process, then immediately run the same samples through the digital tester.
Log both sets of data for a minimum of three weeks to build a comparative baseline.
Analyze the data to ensure the digital readings correlate with historical manual data, accounting for the expected reduction in variance.
Phase out the manual equipment once the digital system is fully validated and integrated into the LIMS.
This parallel testing phase is critical. It proves to the quality managers that the new machine is accurate. It also highlights the inconsistencies of the old manual method, helping to secure buy-in from the floor staff who might be resistant to change.
Operator Training and Workflow Friction
Transitioning shop-floor staff from manual tools to software-driven digital interfaces involves a learning curve. Technicians used to turning dials and reading gauges might find touchscreens and database menus intimidating. To mitigate this, prioritize vendors offering comprehensive onboarding.
Look for intuitive user interfaces. The software should have a simple "Start Test" button for routine operations. Automated calibration prompts that guide the operator step-by-step through the verification process are essential. The goal is to make the digital system easier to use than the manual tools it replaces.
Calibration and Maintenance Requirements
Digital optical sensors require strict, scheduled calibration to maintain accuracy and standard compliance. Dust, humidity, and vibration can affect the optics over time. Proprietary digital components can cause unexpected downtime if they fail, compared to easily replaceable manual tools.
Evaluate vendor Service Level Agreements carefully. Check the availability of spare parts in your region. Remote diagnostic capabilities are a massive advantage. If the machine throws an error code, the vendor's tech support should be able to log in remotely, diagnose the issue, and dispatch a part without needing a preliminary site visit.
Software Integration Challenges
Integrating a new digital tester with legacy LIMS or ERP systems can present IT hurdles. Older databases might not accept modern API calls. Verify API availability and export formats like CSV or XML before purchasing. Ensure the equipment meets your company's IT security compliance standards.
Work closely with your IT department during the procurement phase. They need to verify that the tester's software can securely connect to the factory network. They will also need to set up the necessary firewalls and user access permissions to ensure the integrity of the quality data.
Conclusion
Audit your current weekly testing volume to identify exact bottlenecks in your QA lab.
Calculate your manual testing labor hours and current scrap rates to establish a baseline.
Request technical data sheets and proof-of-concept demos from leading equipment manufacturers.
Contact a testing equipment specialist to discuss integration requirements for your specific LIMS setup.
FAQ
Q: What is the ISO standard for plastic pipe opacity testing?
A: ISO 7686 specifies the method for determining the degree of light transmission in plastics pipes and fittings. It requires precise photometric measurement to ensure the pipe transmits no more than 0.2% of visible light, preventing algae growth in water applications.
Q: Can a digital opacity tester integrate with my existing LIMS?
A: Yes. Most modern digital testers support standard integration methods, including REST APIs, direct database connections via SQL, and secure file drops using CSV or XML formats. This allows seamless data transfer directly to your Laboratory Information Management System.
Q: How long should we run parallel tests when transitioning from manual to automated opacity testing?
A: We recommend running parallel tests for 3 to 4 weeks. This duration provides enough data points across different product batches to validate the new equipment. It helps correlate historical manual data with the automated outputs, ensuring statistical consistency.
Q: How often does an automated opacity tester require calibration?
A: Standard industry practice requires daily verification checks using reference standards before testing begins. Formal calibration by certified technicians is typically required annually or bi-annually, depending on your internal quality manual and specific ISO audit requirements.
Q: Are manual opacity testing methods still compliant with regulatory standards?
A: Manual methods can be compliant if executed perfectly and documented thoroughly. However, they carry a much higher risk of documentation errors, execution variance, and limited sample sizes, which frequently raise red flags during strict regulatory audits.
