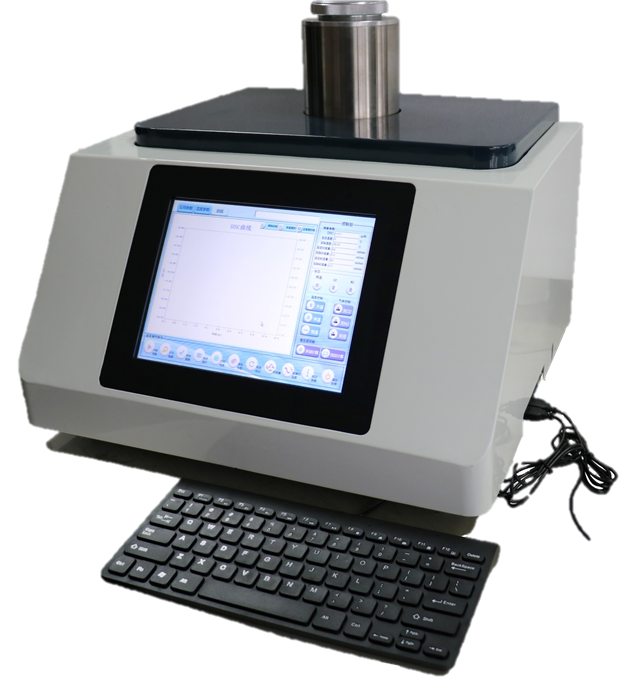

Differential Scanning Calorimeter

DSC is an intelligent and miniaturized thermal analysis instrument, which is applicable for oxidation induction time(OIT) test. It provides an analysis method for organic, inorganic, polymer, mineral, petrochemical products, textile, medicine, etc. Functions like magnification and narrowing of the graph make the friendly interface easy to operate.
Availability:
Quantity:
Differential Scanning Calorimeter
  • GT-DSC-500

  • GT-TEST

  • 9024800000

Standards

·         ISO11367, OIT



Highlights

l  Industry computer control

l  Best choice for OIT test

l  Software Full-automatic performance



Application

DSC is an intelligent and miniaturized thermal analysis instrument, which is applicable for oxidation induction time(OIT) test. It provides an analysis method for organic, inorganic, polymer, mineral, petrochemical products, textile, medicine, etc. Functions like magnification and narrowing of the graph make the friendly interface easy to operate.

Optional functions

With the optional functions of the melting, solidification, decomposition, chemical combination, reduction, oxidation and crystallization of the material. With convenient data processing system and calculation method for the epitaxial starting temp, enthalpy variable, glass transition temp, enthalpy ratio, , specific heat and kinetic parameters.

Features

l  Industrial computer is introduced with rich information, e.g. set temperature, sample temperature, Oxygen flow rate, Nitrogen flow rate, DSC signal, status of switches, flow rate zeroing.

l  Integrated furnace, user-selectable rate for temperature rising up/down.

l  Double temperature sensors ensure high repeatability of test results. One sensor installed on the wall of furnace, the other at the bottom of sample for collecting real test temperature. Patented controlling technology is applied to make the temperature of the sample reach to the set point by controlling the temperature on the wall of the furnace.

l  Digital mass-flow meter switches the flow rate of Oxygen/Nitrogen automatically with fast switching speed.

l  Standard sample provided for calibrating constant temperature coefficient.

l  Simplified to one-key operation. Tens of commands can be combined on your demands, making operation more easier. Also support self-programming function.



Technical specifications

1  Temperature range: room temperature to 500 ( higher temperature customized)

2  Temperature resolution: 0.1

3  Heating rate: 0.1 ~ 80 / min

4  DSC range: 0 ~ ± 200 mW

5  DSC resolution: 0.01 mW

6  DSC sensitivity: 0.1 mW

7  Working power supply: AC 220 v 50 hz
