The Illusion of Visual Inspection in Pipe Manufacturing
The "Flashlight Test" and Its Inherent Limitations
The flashlight test introduces countless uncontrolled variables into the quality control process. Differences in lumen output, beam focus, and ambient factory lighting make it impossible to establish a reliable baseline. A flashlight with fresh batteries yields a completely different visual result than one at the end of its charge. Factory lighting changes depending on the time of day and the proximity to bay doors. These shifting conditions destroy any chance of repeatable testing.
More importantly, human visual perception is highly subjective. The human eye has a specific threshold of visibility. It completely fails to detect micro-transmissions of light that violate strict industry tolerances. The "looks fine" mentality frequently borrowed from visual weld assessments fails completely when applied to molecular-level light transmission. What appears opaque to an inspector might actually allow enough light through to fail certification. You cannot manage what you cannot measure, and the human eye cannot measure photons.
Relying on operators to judge opacity leads to inconsistent batch approvals. One operator might reject a pipe that another operator passes on the next shift. This inconsistency creates chaos in production schedules and inventory management. Manufacturers need hard data, not opinions, to release products to the market.
Why Pipe Color is a Flawed Indicator of Opacity
There is a dangerous misconception that a dark-colored pipe is automatically an opaque pipe. Surface color depth and actual light transmission are entirely different properties. Opacity relies heavily on the proper dispersion of carbon black or specific pigments within the polymer matrix. You can add the correct percentage of carbon black by weight, but if the extruder fails to mix it properly, the pipe will fail opacity testing.
If the polymer dispersion is flawed or uneven, a pipe can look perfectly black on the surface while still allowing localized light penetration. Carbon black agglomerates can form, leaving microscopic windows of clear polymer between them. Relying on visual color uniformity as a proxy for optical integrity gives a false sense of security. It bypasses actual material performance verification.
Extrusion parameters like melt temperature, screw speed, and back pressure directly impact pigment dispersion. A visual check tells you nothing about how well the masterbatch melted and distributed. Only a photometric measurement can confirm that the polymer matrix provides a continuous optical barrier.
Distinguishing Wall Opacity from Structural Pipe Inspections
Industry professionals must clearly distinguish between structural inspections and optical barrier quality control. Utilizing high-lumen flashlights is a valid method for checking long-distance pipe or culvert interiors for physical damage, blockages, or alignment issues. You shine a light down a trench to see if the pipe is crushed. You do not shine it through the wall to check opacity.
Similarly, visual assessments are critical for verifying root passes and hot passes in pipe welding. Inspectors look for undercut, porosity, and lack of fusion. However, these structural inspections cannot be cross-applied to verifying polymer wall opacity. Checking for a physical defect requires seeing the surface. Checking for opacity requires measuring the exact percentage of photons passing through the material.
Confusing these two types of inspections leads to a false sense of quality. A pipe can have perfect dimensions, flawless welds, and a smooth surface finish, yet still fail as an optical barrier. Quality assurance protocols must separate structural checks from material property testing.
The Business Risks of Relying on Manual Opacity Checks
Regulatory and Compliance Failures (ISO 7686)
The ISO 7686 standard mandates strict optical requirements for plastic pipes and fittings. It typically dictates that light transmission must not exceed 0.2%. Manual checks provide absolutely zero auditable proof of meeting this threshold. You cannot write "looked dark enough" on a compliance certificate.
During a regulatory inspection or a client quality audit, subjective notes from a visual inspector hold no weight. Auditors demand quantifiable, photometric data generated by a calibrated machine. Without this data, manufacturers cannot prove compliance. This lack of proof risks immediate batch rejection and loss of certification.
Losing ISO certification shuts down production and severs contracts with major municipalities. Government infrastructure projects require strict adherence to material standards. If you cannot provide a digital audit trail proving your pipes meet the 0.2% transmission limit, you will not win the bid.
Field Failures and Liability
When pipes with excess light transmission enter the field, the consequences are severe. In potable water applications, even fractional amounts of light penetrating the pipe wall can promote microbiological and algae growth. This growth contaminates the water supply, creates massive health hazards, and clogs filtration systems.
For exposed piping systems, inadequate opacity fails to block harmful radiation. This leads to rapid UV degradation. The polymer chains break down, making the pipes brittle. This degradation significantly shortens their lifespan and leads to costly bursts and environmental damage.
Replacing buried or installed infrastructure is astronomically expensive. The manufacturer often bears the cost of excavation, replacement materials, and labor if the failure traces back to poor opacity control. The liability far outweighs the cost of proper testing equipment.
The Cost of False Positives and Negatives in QC
Subjective testing creates a volatile financial environment on the production floor. Overly cautious inspectors might reject perfectly good batches. These false negatives force the company to scrap valuable materials, waste production hours, and grind up good pipe for regrind.
Conversely, passing bad batches carries catastrophic liability impacts. These false positives mean non-compliant pipes leave the factory. If they fail in the field or during third-party testing, the manufacturer faces product recalls, severe reputational damage, and extensive legal claims.
A dedicated pipe opacity testing machine eliminates this financial volatility. It provides a definitive pass or fail based on hard numbers. This certainty optimizes material usage and protects the company from downstream liabilities.
Transitioning to Quantifiable Measurement: The Pipe Opacity Testing Machine
Core Mechanics of Standardized Opacity Testing

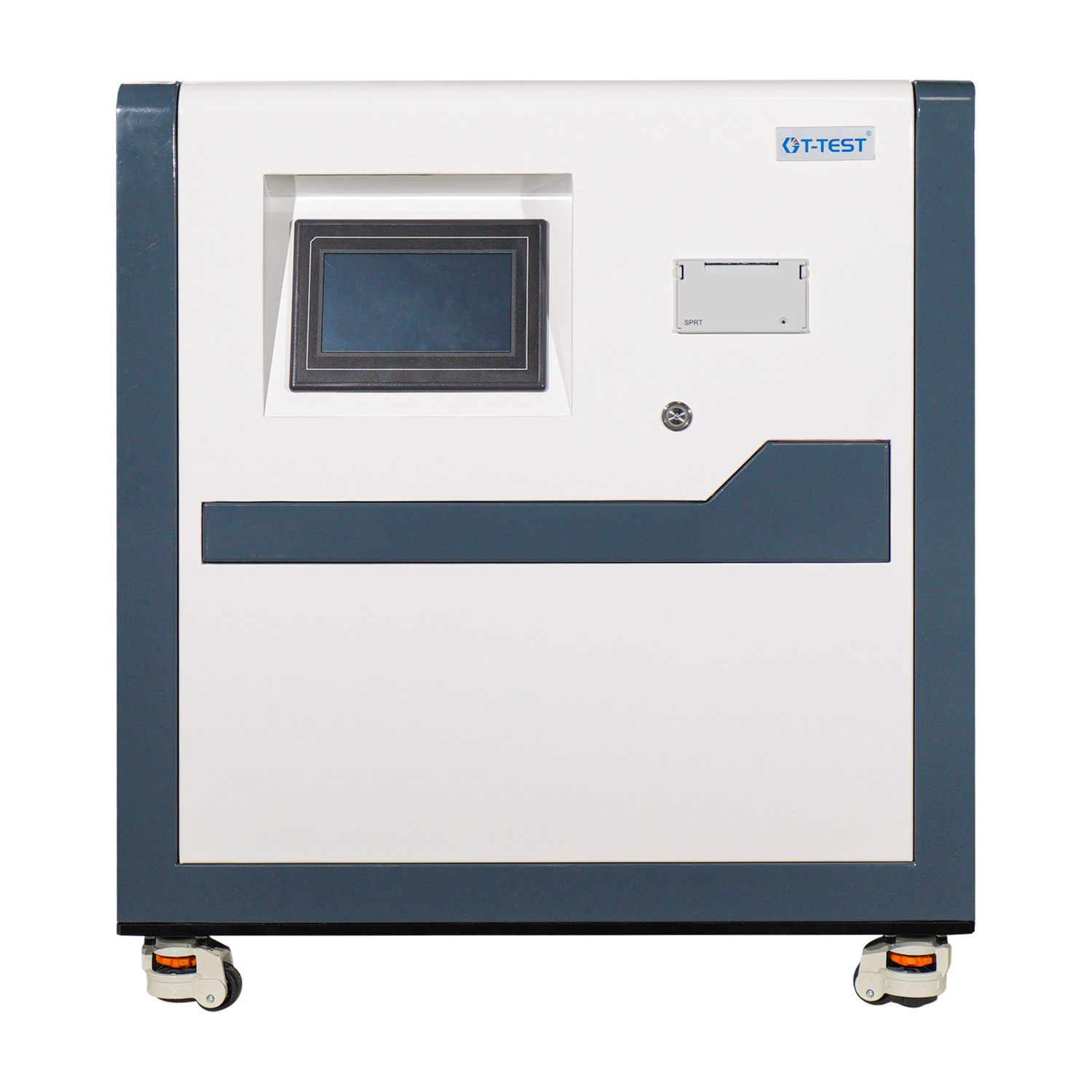

A professional testing machine replaces guesswork with advanced optical engineering. The technical architecture revolves around an integrating sphere, a highly stabilized and controlled light source, and ultra-sensitive photometers. The integrating sphere captures all transmitted light, regardless of scattering angles.
The machine physically isolates the polymer sample from all ambient factory light. It creates a perfectly controlled environment. This isolation ensures that the photometers measure only the light actively passing through the specimen. It guarantees absolute measurement accuracy down to the microscopic level.
The internal light source must maintain a constant output. Any fluctuation in the incident light flux ruins the measurement. High-end machines use regulated power supplies and feedback loops to keep the light source perfectly stable during the entire testing cycle.
Step-by-Step: How a Pipe Opacity Testing Machine Executes the ISO 7686 Protocol
Sample Preparation: Technicians cut four distinct test pieces from specified angles along the circumference of the pipe. This ensures uniform testing across the entire geometry and accounts for any variations in wall thickness or pigment dispersion.
Baseline Calibration: The machine's light source is activated to measure the incident light flux under strictly controlled, zero-obstruction conditions. This establishes the 100% transmission baseline.
Optical Path Alignment: The prepared pipe specimen is placed precisely between the light source and the optical receiver. The clamping mechanism ensures no light bypasses the sample edges.
Measurement and Calculation: The highly sensitive sensors determine the transmitted light flux. The system then automatically calculates the precise transmission percentage down to fractions of a percent.
How Machine Testing Eliminates Human Error
Implementing automated testing forces a shift from subjective interpretation to objective, digital readouts. Automated sample handling and standardized testing protocols ensure that every piece of pipe is subjected to identical testing conditions. It does not matter which operator is running the machine.
By removing the human eye from the measurement equation, manufacturers eliminate fatigue-based errors. An operator at the end of a 12-hour shift will not judge opacity the same way they did at the start. The machine provides the exact same accuracy 24 hours a day.
Automated systems also eliminate transcription errors. The machine records the data directly to the database. Operators do not need to write numbers on a clipboard and type them into a spreadsheet later. This direct data transfer ensures the integrity of the quality control records.
Evaluating a Pipe Opacity Testing Machine: Key Decision Criteria
Compliance Capabilities and Standard Alignment
The primary success criterion for any testing equipment is its regulatory alignment. The machine must explicitly state and prove compliance with ISO 7686 and any relevant regional standards. You must verify that the optical geometry matches the standard's requirements.
Evaluate the machine's technical specifications to ensure it possesses the capability to measure light transmission down to fractions of a percent. The resolution must exceed the standard's requirements to provide a reliable safety margin. If the limit is 0.2%, the machine should accurately read down to 0.01%.
Ask the equipment manufacturer for a certificate of compliance. Review their calibration procedures to ensure they trace back to national metrology institutes. You need absolute confidence that the machine's readings will hold up in a legal dispute or a strict client audit.
Sensor Accuracy, Resolution, and Repeatability
High photometric resolution is useless if the internal light source fluctuates. The stability of the light source over continuous testing cycles is critical for reliable data. You need a machine that maintains its calibration throughout a heavy production shift.
Repeatability is the ultimate test of machine quality. It is the ability to get the exact same measurement result on the same sample multiple times. If a machine yields different results on successive tests of the same specimen, it cannot be trusted for compliance auditing.
When evaluating a machine, run a gauge repeatability and reproducibility (GR&R) study. Have different operators test the same samples multiple times. The variance should be statistically insignificant. If the machine cannot pass a GR&R study, do not buy it.
Feature | Visual/Flashlight Check | Automated Testing Machine |
|---|
Measurement Type | Subjective / Qualitative | Objective / Quantitative |
ISO 7686 Compliance | Impossible to verify | Guaranteed and auditable |
Data Logging | Manual notes | Automated digital records |
Ambient Light Impact | High interference | Zero interference (isolated chamber) |
Repeatability | Extremely poor | Highly consistent |
Sample Accommodation and Throughput Scalability
Production lines rarely run a single pipe size forever. Assess how different machines handle various pipe geometries, wall thicknesses, and diameters. A robust system should seamlessly accommodate everything from small residential plumbing pipes to large municipal infrastructure components.
Evaluate the physical setup time required when switching between different sample sizes. Lengthy changeovers will negatively impact your QA laboratory throughput. Look for machines with quick-release clamps and adjustable optical paths that do not require tools to reconfigure.
Consider the maximum wall thickness the machine can handle. Thick-walled pressure pipes require stronger light sources and more sensitive detectors to measure the minute amounts of light that might pass through. Ensure the machine matches your heaviest production specifications.
Data Logging, LIMS Integration, and Audit Trails
Modern quality control relies heavily on data management. Tamper-proof reporting and automatic data logging are non-negotiable features. You need a system that prevents operators from altering test results to pass a bad batch.
The testing machine must offer seamless integration with Laboratory Information Management Systems (LIMS). This connectivity ensures historical tracking and simplifies compliance proof during audits. It allows quality managers to pull reports instantly without digging through filing cabinets.
Actionable data drives continuous manufacturing improvement. By tracking opacity trends over time, you can optimize your masterbatch dosing. If the opacity is consistently well below the limit, you might be able to reduce carbon black usage, saving money without compromising quality.
Implementation Realities and Adoption Risks
Calibration and Maintenance Requirements
Precision optics demand rigorous upkeep. These machines require regular, documented calibration using certified reference standards to maintain their accuracy. You cannot install the machine and forget about it. It requires a dedicated maintenance schedule.
Facility managers must adhere to a strict maintenance schedule for the integrating spheres and light sources. Dust and debris inside the optical chamber will scatter light and ruin the measurements. The internal surfaces must remain perfectly clean and highly reflective.
Neglecting this schedule will inevitably lead to measurement drift over time. This drift compromises the integrity of the test results and risks compliance failures. Establish a daily verification routine using a known standard to catch any drift before it impacts production decisions.
Operator Training vs. Machine Automation
While modern testing equipment is highly advanced, there is a learning curve associated with its operation. Technicians must understand how to prepare the samples correctly. A poorly cut sample with jagged edges will let light leak around the sides, causing a false failure.
To mitigate adoption risks, prioritize machines equipped with intuitive touchscreen interfaces and pre-programmed testing sequences. High levels of automation significantly reduce operator dependency. The machine should guide the operator through the process step-by-step.
Allow technicians to focus on sample preparation and data analysis rather than complex machine calibration. The easier the machine is to use, the more likely the operators will follow the standard operating procedures correctly every time.
Conclusion
Relying on visual checks and flashlight tests is an obsolete, high-risk practice in modern pipe manufacturing. The inability to quantify light transmission exposes manufacturers to severe compliance failures, field degradation, and liability claims. Automated, objective testing is a non-negotiable requirement for ensuring product integrity and meeting strict international standards like ISO 7686.
Audit your current internal QA failure rates to identify vulnerabilities caused by subjective visual inspections.
Define the complete range of pipe diameters and wall thicknesses produced in your facility to ensure equipment compatibility.
Request a technical demonstration of a specialized testing machine using your own production samples to verify repeatability.
Review your data management protocols to ensure new equipment can integrate seamlessly with your existing laboratory systems.
Reach out to equipment specialists to discuss your specific compliance needs; contact us to explore standardized testing solutions.
FAQ
Q: What is the ISO 7686 standard for pipe opacity?
A: ISO 7686 is an international standard that specifies a method for determining the opacity of plastics pipes and fittings. It mandates that the light transmission through the pipe wall must not exceed a specific threshold, typically 0.2%, to prevent issues like algae growth and UV degradation.
A: The machine first calibrates its light source to establish a baseline. A prepared pipe sample is then placed between the light source and a highly sensitive photometer inside an isolated chamber. The sensor measures the exact amount of light passing through the sample and calculates the transmission percentage.
Q: Can a pipe opacity testing machine measure different pipe diameters and wall thicknesses?
A: Yes. Professional testing machines are designed with adjustable sample holders and optical alignments to accommodate a wide range of pipe geometries, from small residential plumbing lines to thick-walled municipal infrastructure pipes.
Q: Why is visual inspection not equivalent to a pipe wall opacity test?
A: Visual inspection relies on subjective human eyesight, which cannot quantify light transmission percentages. While visual checks are fine for spotting physical defects like cracks or bad welds, they cannot detect the microscopic light penetration that violates strict opacity standards.
Q: Why does light transmission matter in plastic water pipes?
A: If light penetrates the wall of a potable water pipe, it creates an environment conducive to microbiological and algae growth. This contaminates the water supply, creates blockages, and poses significant health and safety hazards.
Q: How often does a pipe opacity testing machine require calibration?
A: Calibration frequency depends on usage volume and manufacturer guidelines, but it is typically required annually or bi-annually. Regular calibration using certified reference standards is critical to prevent measurement drift and ensure ongoing compliance.
