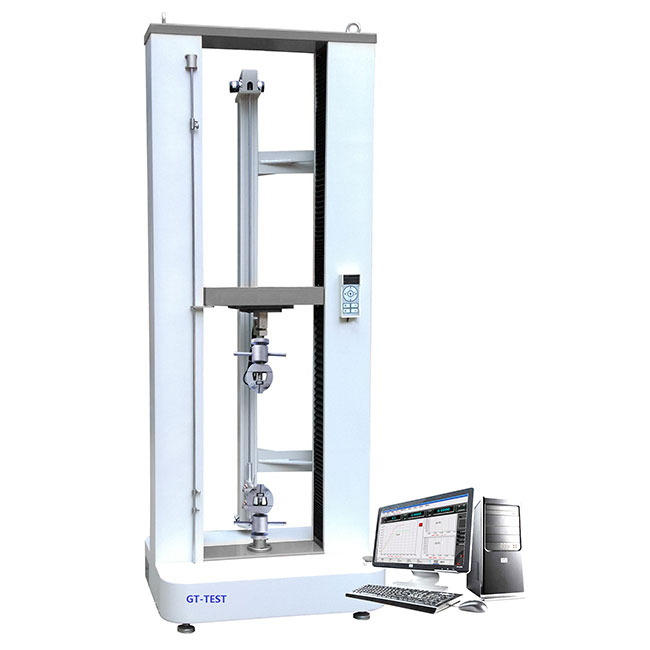

CE certified Best Quality Cheap Universal Testing Machine

Standards

·         ISO 527

·         ISO 6259

·         ASTM D 638

·         ISO 6040

·         ISO 178

·         ISO 9969

Application

Universal Testing Machine is specially designed for testing applications in all areas, whether in quality control or research projects, e.g. metal wire, nylon, plastics, rubber, textile and clothes, packaging for tension, compression, flexure, peel, tear or others on customer’s request, so they are ideal for performing complex tasks in the field of material and component testing.

The classic application is the tensile test. This involves subjecting a sample to an increasing tensile load until it breaks. The force-deflection diagram generated during this test provides information on the load-bearing capacity, elasticity and plastic deformation of the ma­te­rial sample.

Features

1.    Adapts double-column high rigid structure and seamless ball bearings.

2.    Test can be piecewise programmed by stress, strain or displacement rate closed-loop controlling method.

3.    High quality load sensor realizes intelligent and digital control, largely increase the sampling accuracy and stability.

4.    Self cleaning ball screws for fast, quiet testing with sealed for life lubricated end bearings; precise crosshead guidance system, smooth running.

5.    Cooperating with large deformation extensometer, the yield strain, breaking strain and strain at X% can be actually got.

6.    Modularization software includes almost all the mechanical property tests, may customized a new test module on customer’s request.

Powerful Software functions

1.    Zeroing function will clear the initial stress of the specimen, acquiring a more accurate result.

2.    May plot Stress-Strain, Load-Displacement-Time, Stress-Time, Displacement-Time test curves.

3.    Embedded data analysis system will help the operator to analyze test data and contrast more test datum.

4.    Free upgrade software on line.

Technical specifications

l  Machine capacity: 10KN / 20KN / 30KN / 50KN

l  Crosshead travel: 900mm

l  Large deformation measuring range: (5-800)mm

l  Large deformation resolution: 0.0125mm

l  Max. crossbeam speed range: 500mm/min

l  Specimen width:400mm

l  Power supply: 220VAC-15%～220VAC+10% 50Hz 1KW

Standard configuration

1.    Main frame

2.    Application software

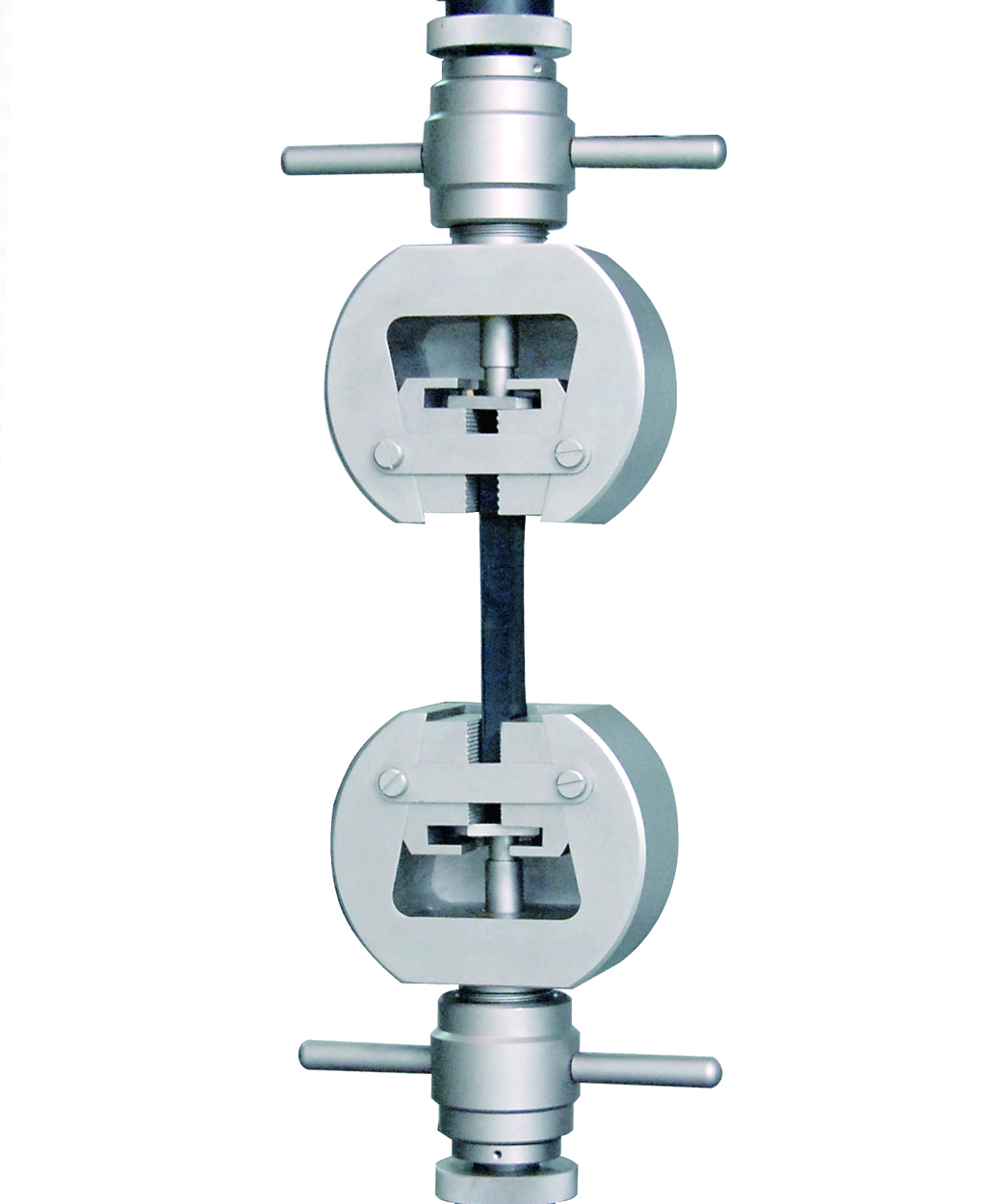

3.    Wedge tensile grip

4.    Extensometer for elongation test

5.    Desktop computer

Optional

1.    Compression grip

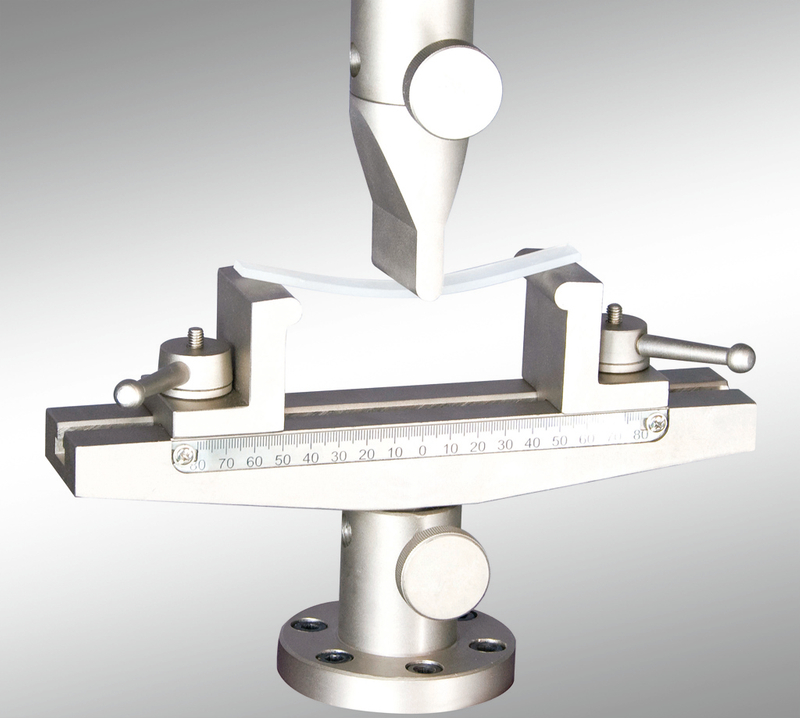

2.    Flexibility grip

3.    Ring stiffness grip

4.    Others on customer’s request
