Thermal Test Bath for Pressure Testing
Standards
· ISO 1167
· ASTM D 1598
· ASTM D 1599
Application
The internal pressure test is a test procedure for determining the strength of thermoplastic pipes to constant hydrostatic internal pressure at a constant temperature. The samples are tested either for a specified period or until they fail. The test duration is subject to the tension generated by the internal pressure and the temperature.

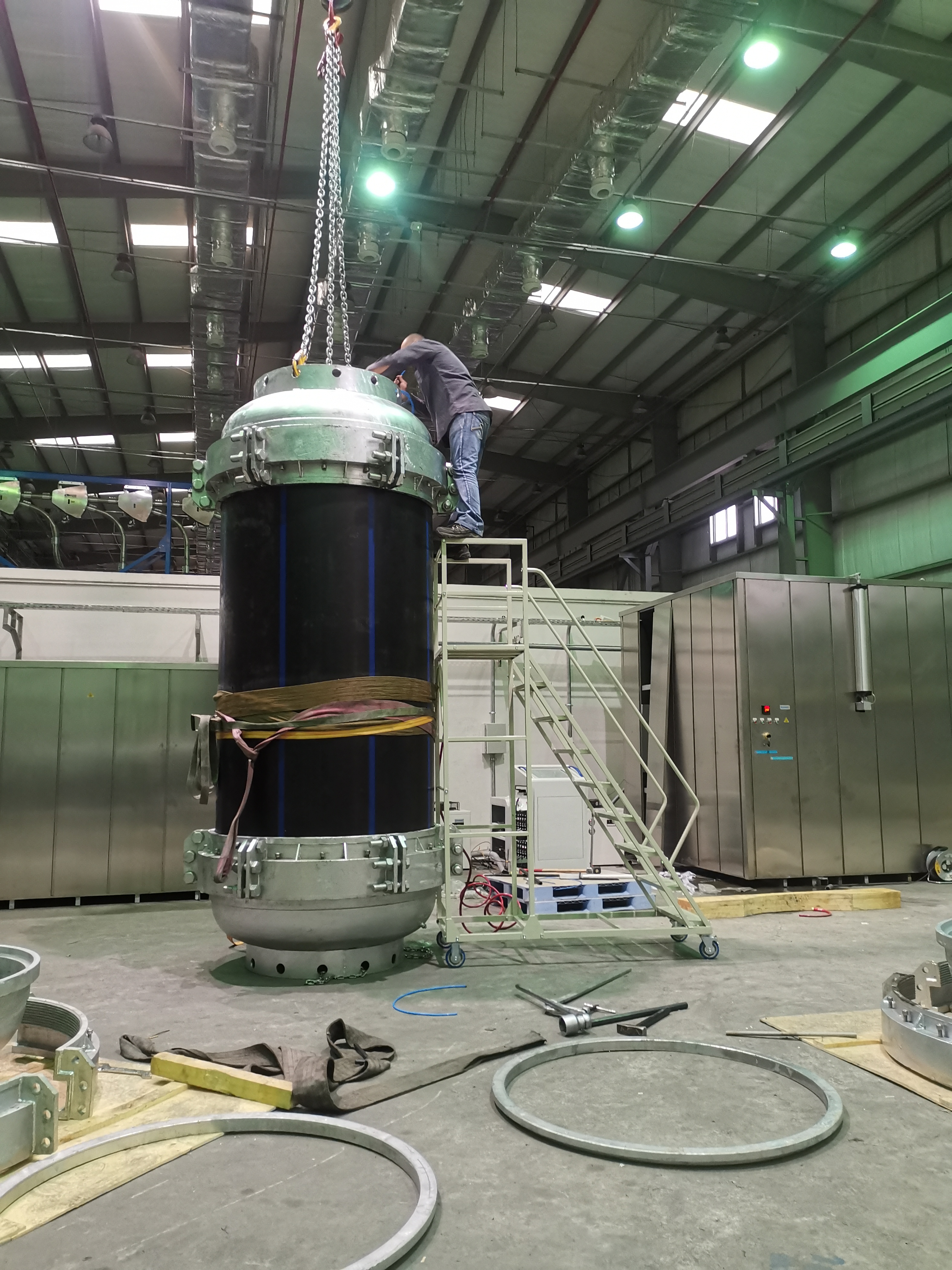

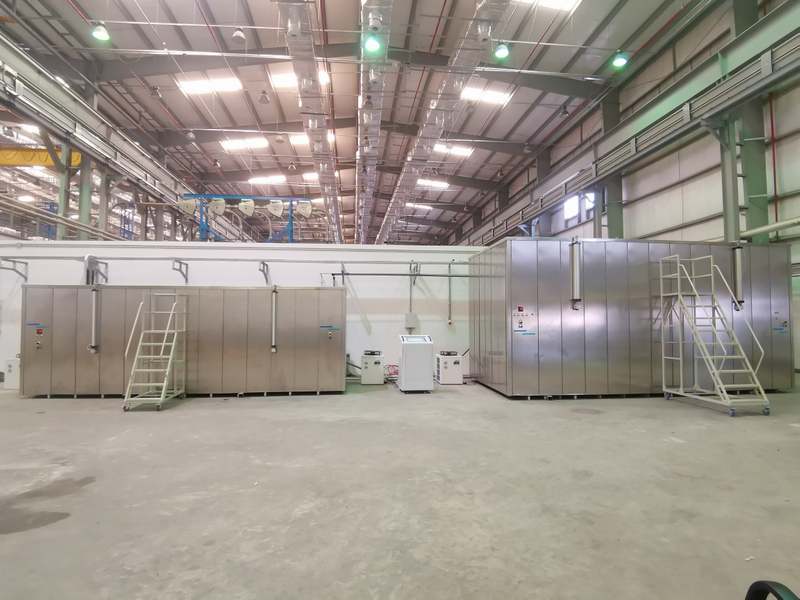

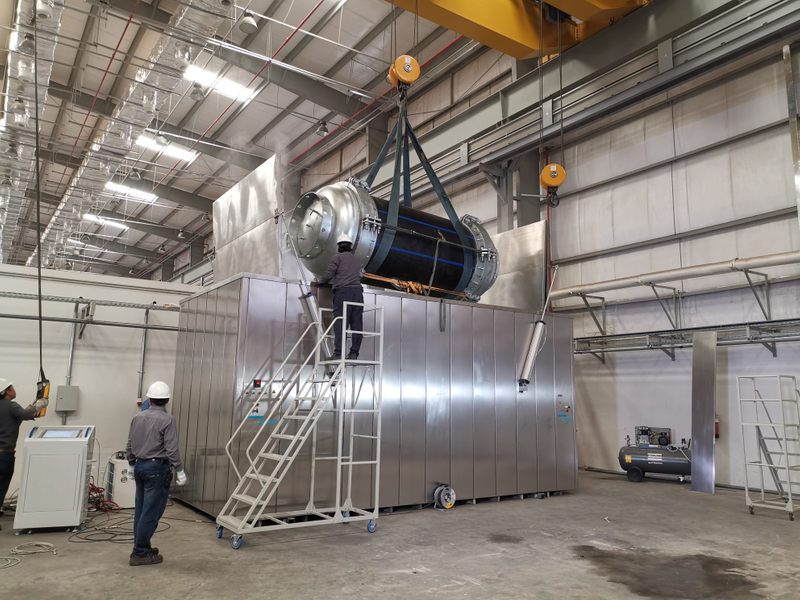

GT-TEST test tanks are specially design for testing thermoplastic pipes and fittings.
Features
The high reliability, durability of the materials used and the constant temperatures in the test tank provide particularly reliable test conditions.
There are wide range of tank dimensions and connection options, enabling the tanks to be flexibly adapted to various operating conditions.
The circulation system guarantees high accuracy and uniform temperature distribution.
With the excellent thermal insulation of the basic container, even when the water temperature rises up to 95 ℃ the outer lid is still at ambient temperature, which helps to enhance the security and save more than 70% of power consumption.
Special lid seals keep steam and heat in the test tank and protect against injuries.
Structural bracing frame provides excellent supporting capacity and anti-deforming capacity.
Tank lid is controlled pneumatically, capable of adjusting the opening angle at will between 0-90degree.
Water will be filled automatically in a way that the temperature not fluctuate too much (≤0.2℃).
Technical specifications
1. Temperature range : (15-95)℃
2. Temperature resolution: 0.1℃
3. Temperature accuracy: ±0.5℃

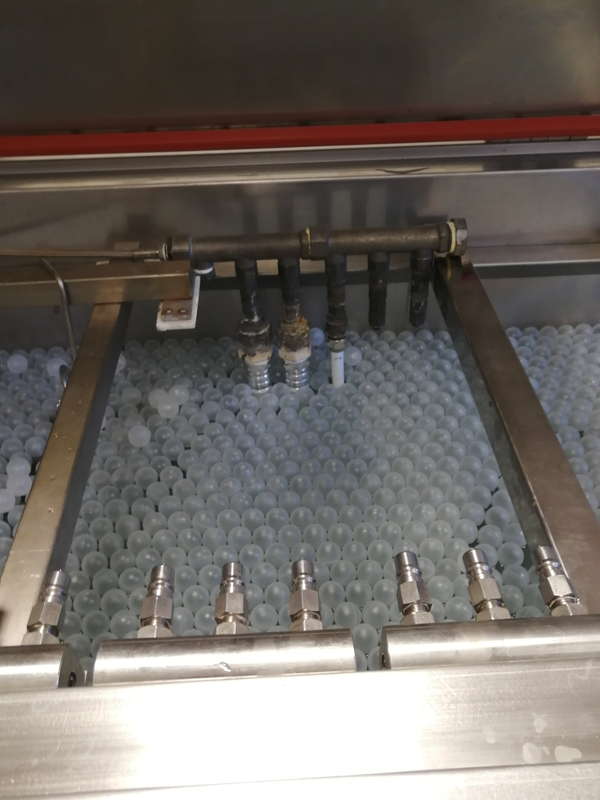

4. Number of pressure inlets: (1-20)
5. Capacity: up to DN2000mm
