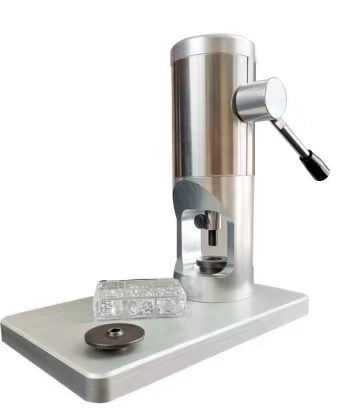

DSC Crucible Press Device for OIT Test
Standards
ISO 11357
Application
The device is designed to seal the crucible for OIT or other tests in DSC machine.
Procedure

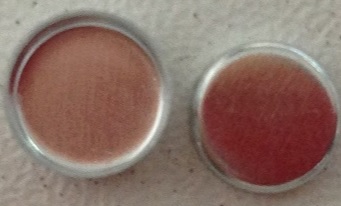

1. Place the sample in the crucible and close the lid
2. Rotate the right knob, raise the platform, place the crucible on the platform

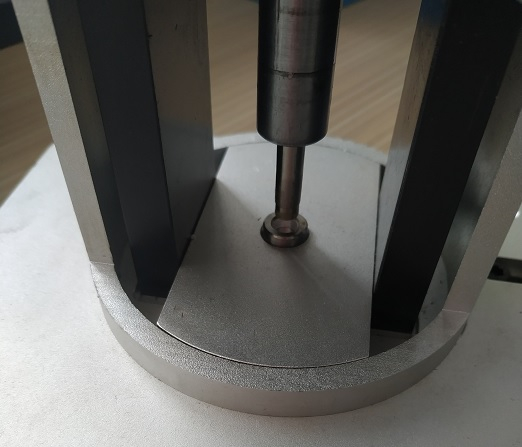

3. Press the handle to make the press head down and press the crucible flat
4. Loosen the handle, rotate the knob to move the crucible up to the platform and take it out
Technical Parameters
1. Crucible:φ6.7mm
2. Crucible slot: 7mm
3. Operated manually
4. Dimension: (180x260x350)mm
