GT-1508R
GT-TEST
9024800000
Application

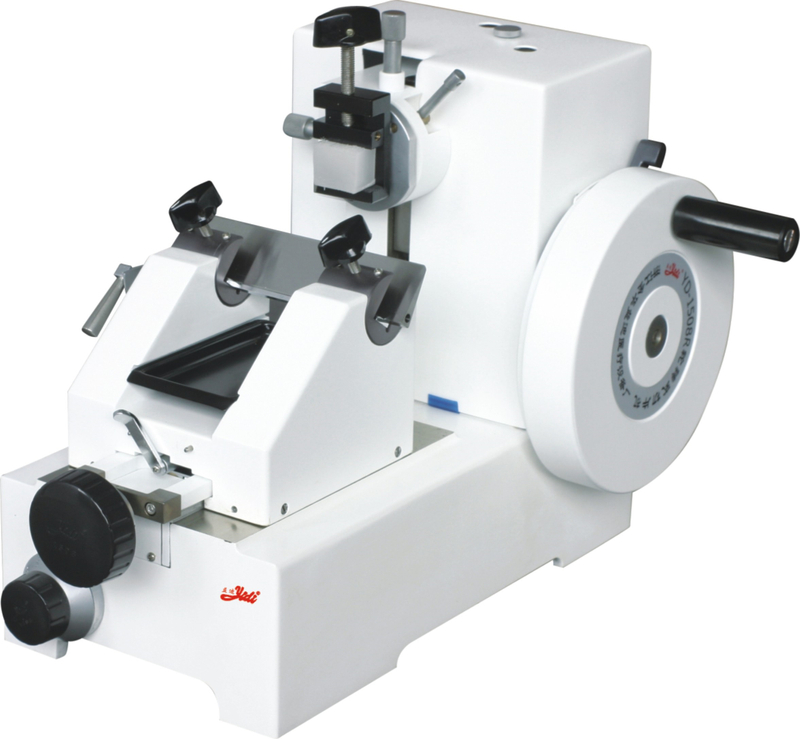

The microtome is capable of producing a slice of the required thickness on polyolefin specimen.
Features
Adopt international advanced technology - precision roller cross guide rail.
Materials are made of high strength alloy steel and other precious metal materials, with unique design and precision structure.
In addition to ordinary soft tissue sections, especially suitable for hard tissue sections, such as plastics, fibers, bones, plants, hair, etc.
The sample clip can be locked on the three-dimensional axis, easy to adjust the slice angle.
Knife holder forward and backward, the operation will automatically feed, the knife holder can move longitudinally and laterally, do not need to touch the slicing knife surface with fingers.
Whether using standard slicing knife or disposable blade, can obtain the ideal blade effect.
The right hand wheel is locked in any position with one hand, safe and convenient.
The seal of the machine does not need to be disassembled, making the slicing work clean and convenient.
It can be frozen sectioning quickly and conventional paraffin sectioning at the same time.
Unique titanium-plated guide ensures high precision slicing. Section accuracy.
Sample collet can be fine-tuned.
Technical Parameters
1. Section thickness range: 1-30um,
2. The slice minimum indexing value: 1um
3. Slice accuracy: ± 5%
4. Maximum section: 60mm×45mm
5. Dimension: 400×350×350mm
6. Power supply: 2.5KW AC220V 50HZ
